Kreg Rip-Cut KMA2685-INT Guide D'utilisation page 5

Step 3: Mount your Circular Saw on the Sled
H
Step 4: Check the Position of the Cursor
K
Step 5: Reinstall the Indexing Stop
H
E
Step 6: Slide the Sled onto the Rail
A
F
E
G
K
I
J
M
E
C
Assembly

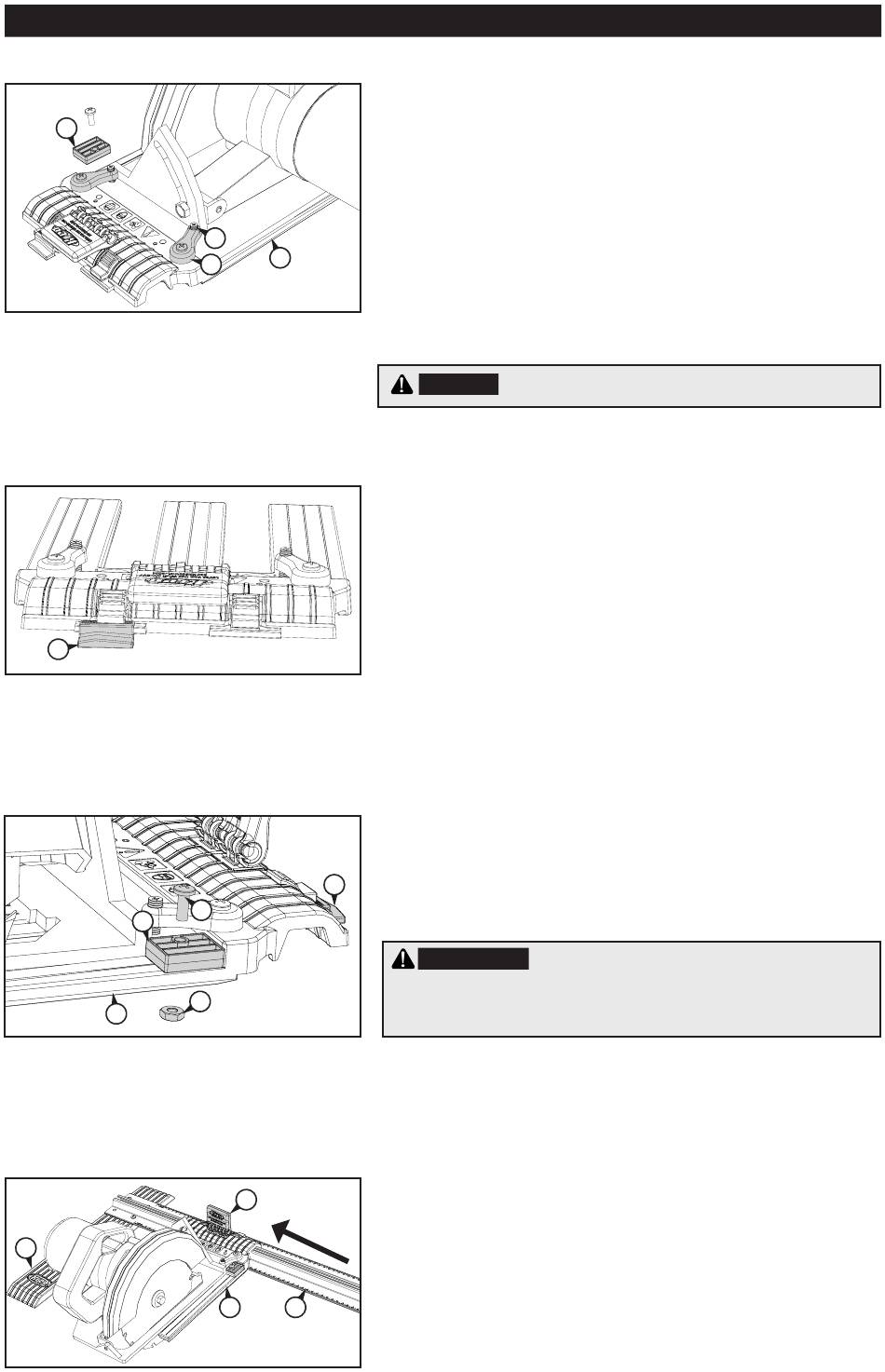

Remove the indexing stop (H) from the sled (E). Loosen the set
screws (F) in the base-plate clamps (G) and slide your saw base plate
under them. Position the saw on the sled with the front of the saw
base plate against the step at the front of the sled. For saws with the
blade on the left-hand end of the motor, centre the blade in the left
sled slot. For saws with the blade on the right-hand end of the motor,
centre the blade in the right sled slot. To accommodate different saw
base-plate configurations, there are two holes for attaching each
base-plate clamp to the sled. For the most secure clamping, choose
the holes that provide the widest spacing allowed by your saw. The
clamps can be oriented at an angle. Tighten the set screws onto
the saw base plate to securely hold the saw but do not over-tighten.
Make sure the saw-blade guard operates freely.
WARNING
Disconnect the saw from power before mounting it on the sled.
There are two positions on the sled for the cursor (K) that correspond
to the two sled slots. Position the cursor in the holder in front of the
saw blade. To switch cursor position, press down on the holder lock,
slide the cursor out of the holder and reinstall it in the other holder.
The indexing stop (H) allows you to remove the saw from the sled
assembly and then re-mount it in exactly the same position. Place
the indexing stop against the side of the saw base on the same side
as the cursor (K) and secure it to the sled (E) with the machine screw
(I) and nut (J). For maximum positioning flexibility, the sled is slotted
and the indexing stop rotates 180°.
The sled assembly is equipped with features that are
ATTENTION
functional on the Kreg Accu-Cut™ family of products. Additional steps, found
®
in the Accu-Cut product manuals are required to calibrate the sled for use on
Accu-Cut products.
With your saw clamped to the sled (E), raise the handle (M) to the
upright position and slide the sled onto the rail (C), inserting the
wedge (L) into the rail channel. The saw and the edge guide (A)
should extend from the same edge of the rail.
