Kreg Rip-Cut KMA2685-INT Guide D'utilisation page 4

A
B
C
D
E
F
G
Step 1: Connect the Edge Guide to the Rail
B
Right-hand operation
Step 2: Orient the Filler Strip
G
E

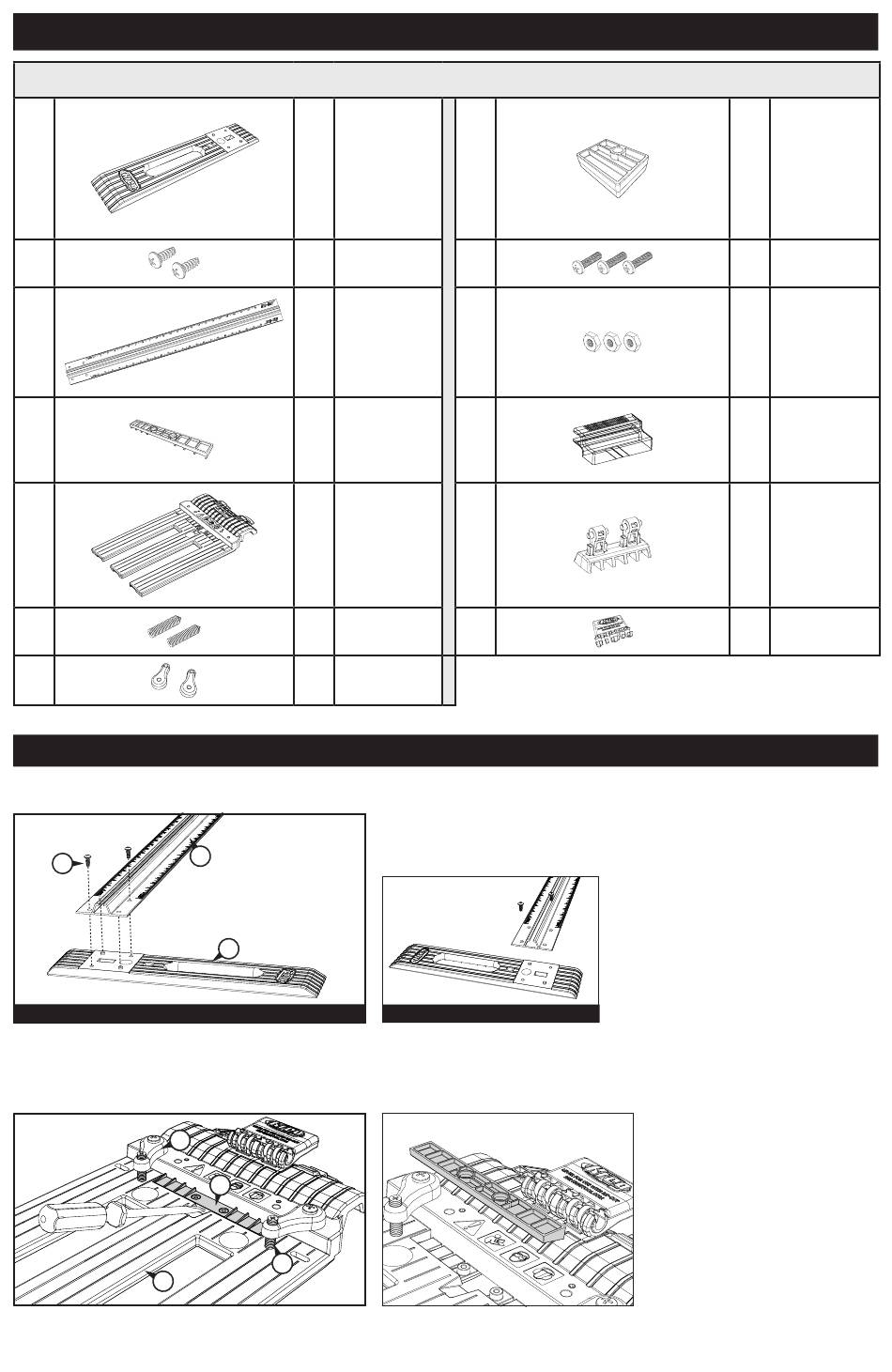

Rip-Cut Components
Rip-Cut (KMA2685-INT) Parts
1 Edge guide
Self-tapping
2
screws
1 Rail
1 Filler strip
1 Sled
2 Set screws
Base-plate
2
clamps
C
A
D
F
H
I
J
K
L
M
Assembly
Remove the clear tape covering the recess in the edge guide (A), remove the
two self-tapping screws (B), and use them to secure the edge guide to the rail
(C). Orient the edge guide for right-hand or left-hand operation as shown.
Left-hand operation
1 Indexing stop
Machine
3
screws
3 Hex nuts
1 Cursor
1 Wedge
1 Handle
The filler strip (D) on the sled (E)
is supplied with the angled ribs
facing up. These ribs support
a saw base with an angled leading
edge, keeping the saw base flat
on the sled when the set screws
(F) in the base-plate clamps (G)
are tightened. For a saw base with
a flat leading edge, lift the filler
strip from the sled recess with the
tip of a screwdriver, turn it over
to expose the flat face and press
it into the recess.
