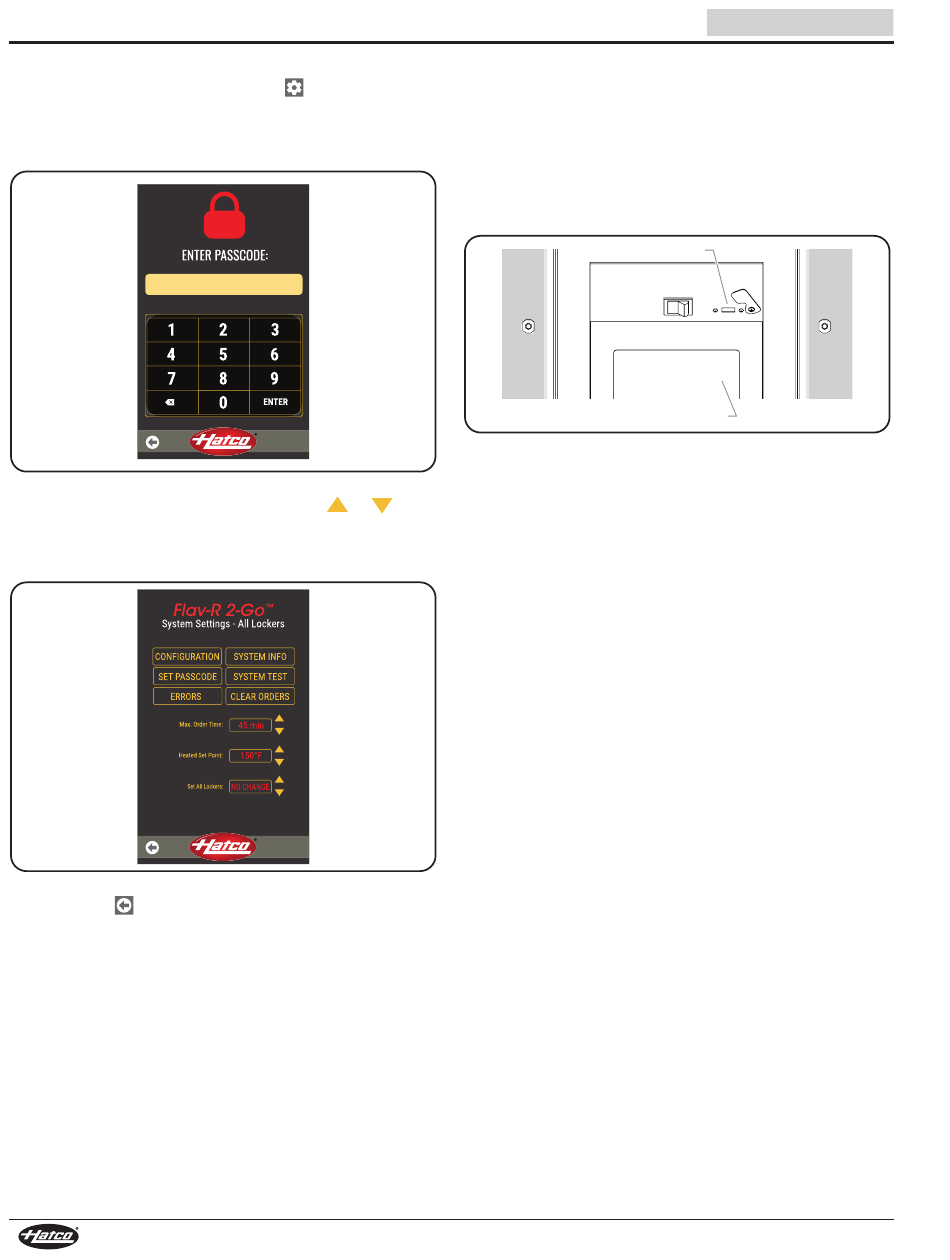

OPERATION
Change the Temperature Setpoint
1. On the Select Lockers screen, touch
2. Enter the Passcode and touch ENTER to access the
System Settings screen.
• The factory set Passcode is: 88888
88888
Passcode Screen
3. On the "Heated Set Point" line, touch the
to increase or decrease the temperature setpoint.
• The temperature setpoint changes in increments of 1°
and can be set up to 180°F (82°C).
System Settings Screen
4. Touch the
to return to the Select Lockers screen.
Updating the Touchscreen Controller
Software
for system settings.
1. Move the Power I/O (on/off) switch to the I (on) position.
2. Insert a USB drive with the latest software into the USB slot.
3. After the two loading screens finish the software
or
arrow
NOTE: Wait at least one minute before turning power off to the
4. Restart the unit.
5. Verify that the software was updated.
14
• The software folder must be in the root folder on the
USB drive.
• The software will update automatically when the USB
drive is inserted.
USB Slot
Touchscreen Controller
USB Slot
installation, wait at least 10 seconds and then remove the
USB drive.
• The USB drive must be removed while the unit is still on
or the update will not apply to the software.
unit after updating the software.
a. Move the Power I/O switch to the O (off) position.
b. Move the Power I/O switch to the I (on) position.
• The customer-side controller displays the HMI version
on the startup screen.
• The operator-side controller displays the HMI version
by selecting the "System Info" on the System Settings
Screen.
English
Form No. F2GPM-0721
