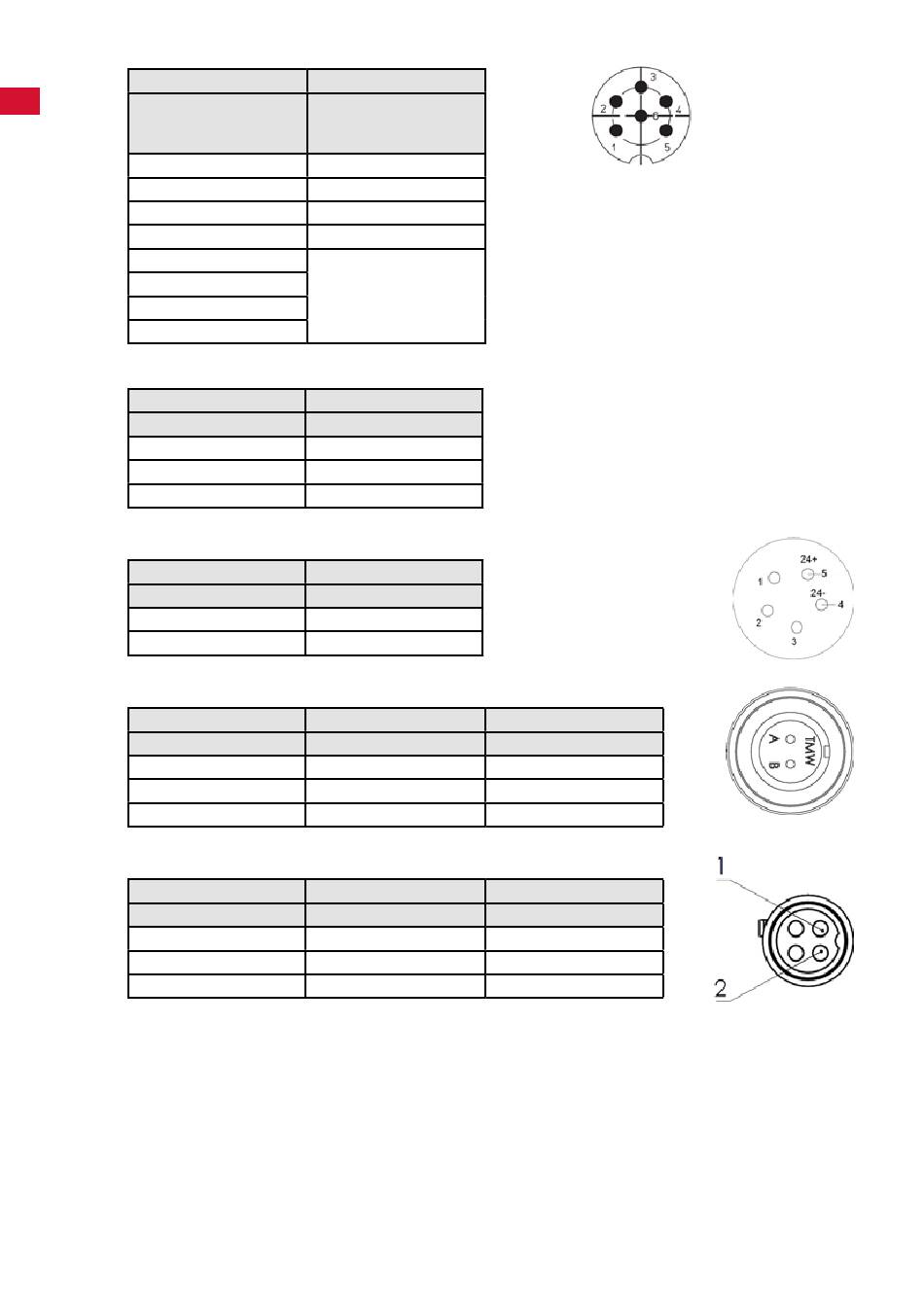

Interface cable, type G:
Extraction unit
en
RJ45 connector
Interface cable Type H:
Extractor
Interface cable Type I:
Extractor
Interface cable Type J:
Extractor
Interface cable, type M:
Extractor
CAM system
Lumberg SV60
(with thread locking
Pin 8
Pin 6
Pin 4
Pin 2
Pin 7
Pin 5
Pin 3
Pin 1
CAM device
RJ 45 pin 15 Pin D-Sub
Pin 8
Pin 7
--- Pin 7 <-> Pin 10
CAM device
RJ 45 pin 5 pol Aviation pin
Pin 8
Pin 7
CAM device
RJ 45 pin 2 pol� TMW connector
Pin 8
Pin 7
----
CAM device
RJ 45 pin 4 pol�round connector
---
Pin 7
Pin 8
system)
Pin 1 (+)
Pin 2 (+)
Pin 4 (+)
Pin 5 (+)
Pin 6 (-)
Pin 2 (+)
Pin 12 (-)
Pin 5 (+)
Pin 4 (-)
Power supply
----
B
A
Power supply
1
---
2
- 16 -
Reverse side
24 V
----
GND
24 V
GND
