3 Product description
3.1 General description
en
The equipment is an extraction unit for suctioning dust that builds up in dental CAM systems�
It can be operated manually or controlled using a CAM system�
The extraction unit is equipped with a bi-directional interface for communicating status information to the
CAM system and for registering control commands from the CAM system�

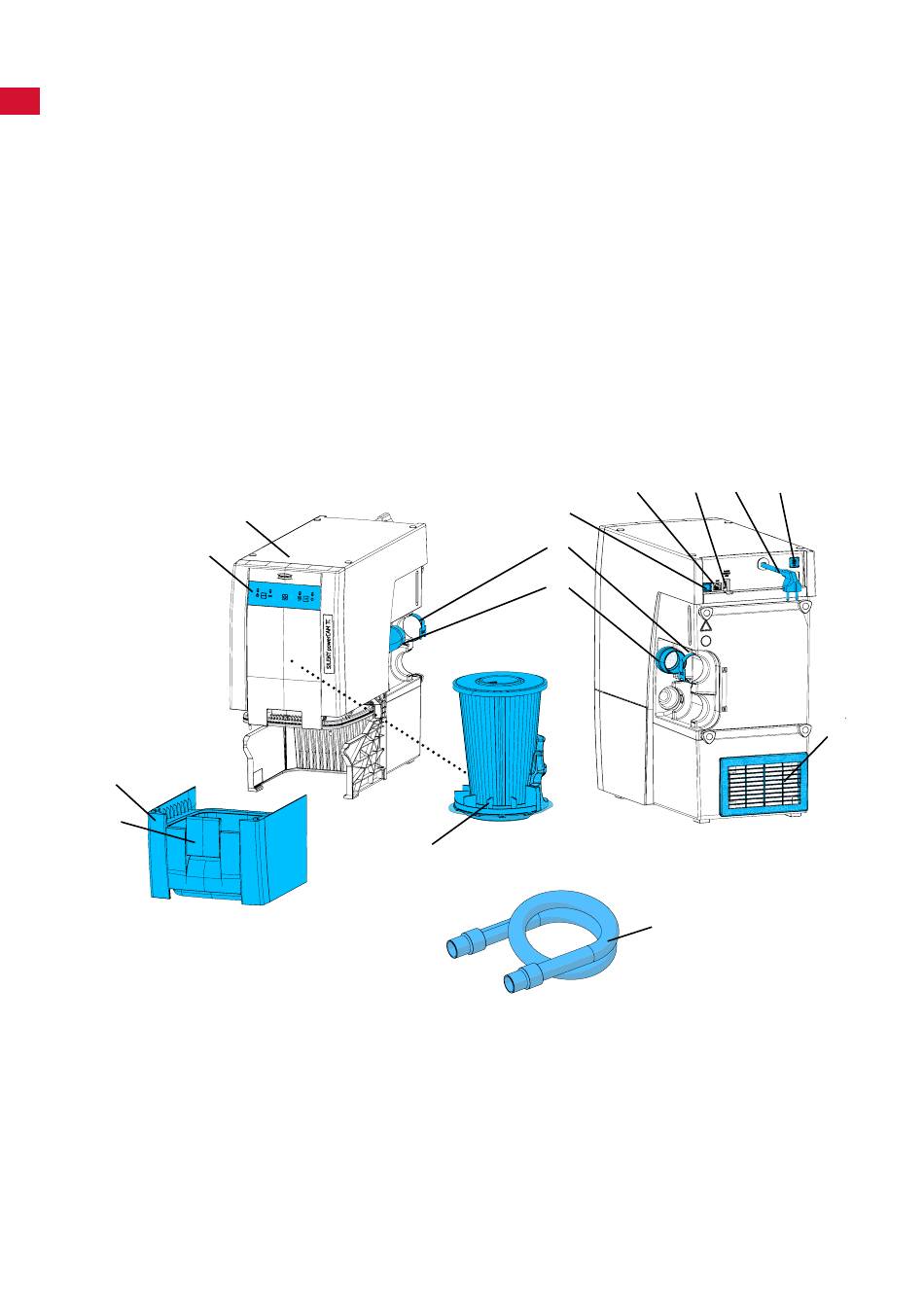

3.2 Assemblies and functional elements
1 SILENT powerCAM TC
2 Control panel
3
On / off switch
4 Dust drawer
4A Clamp fastener
5
Fine filter
6 Suction port
4
4A
1
2
7 Velcro® strip
8 CAM interface
9
Power cord
10 Protective device switch
11 Exhaust air filter / Exhaust air outlet
12 Suction hose and end bushings
13 Renfert CONNECT port
3
7
6
5
- 6 -
8 13 9 10
12
11
Fig. 1
