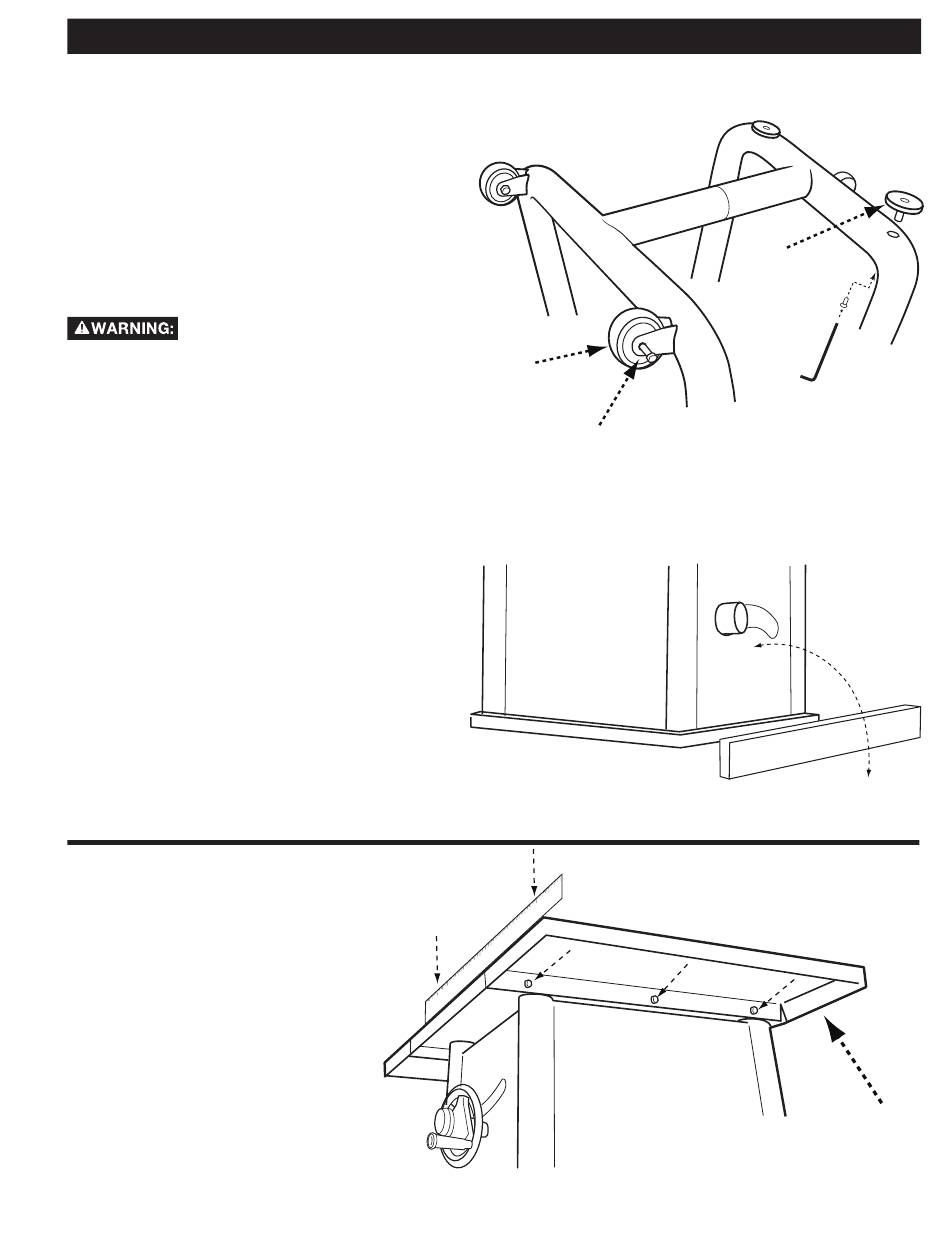

FIXED WHEELS AND STATIONARY FEET

1. Attach the two fixed wheels (A) to the two
left leg, opposite the pivot caster, using the
axle pins and nuts as shown.
2. Screw the adjustable feet (C) into the threaded
inserts in the right leg, next to the pivot caster.
3. Lay a scrap piece of 2x4 in back of the saw, as
shown in Figure 3, to prevent damage to the
dust chute when righting the saw.
4. Stand the saw right side up.
The machine is heavy, two
people are required to stand the
machine up.
5. The two adjustable feet (C) can be raised and
lowered by rotating them. The feet may be
adjusted to level the saw and locked in place
with the locking set screws using a 6mm allen
hex wrench. See Figure 2.

EXTENSION WINGS

1. Attach the extension wings (A) to the
table using two 5/16-18 x 7/8" hex
screws with spring washers for each
wing. The wings attached
underneath.
2. Make sure the wings are flush with
the tabletop.
ASSEMBLY
Figure 2.
from
3
2
1
H
IN C
0
(continued)
A
B
1 2
1 1
1 0
9
8
7
6
5
4
11
C
FIGURE 2
FIGURE 3
FIGURE 4
A
