Summary of symbols

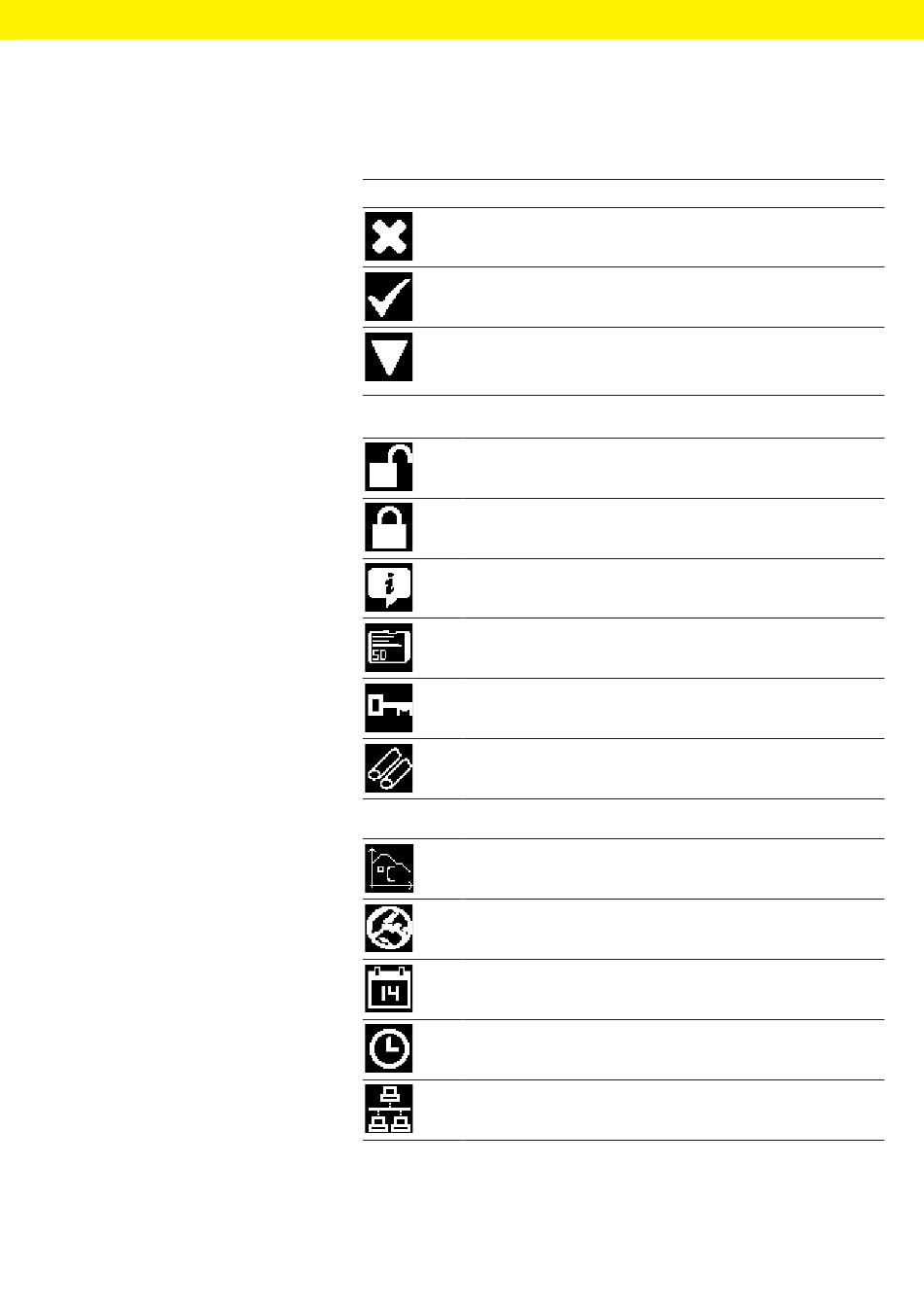

The following tables show the meaning of the symbols found on the touch screen.
General symbols
Symbol Meaning
Cancel: Exit the current screen. Changes are discarded.
OK: Changes are accepted and saved by the user.
Meaning depends on the context. In a selection box the
next object is selected, in a menu the next screen of the
same level is selected.
Menu window 1/2
User login, refer to Chapter 6.2.4 User login/logout
User logout, refer to Chapter 6.2.4 User login/logout
General information, see Chapter 6.2.11 Info
Save log data to memory card, refer to Chapter 6.2.10 Log
User management, refer to Chapter 6.2.9 User
management
Selection of tube type, refer to Chapter 6.2.7 Type of tube
Menu window 2/2
Validation, see Chapter 7.4 Temperature Validation
Language of user interfaces, refer to Chapter 6.2.6
Language
Set date, refer to Chapter 6.2.5 Date and time
Set time, refer to Chapter 6.2.5 Date and time
Network parameters for reset, see Chapter 6.2.8 Network
parameters for reset
