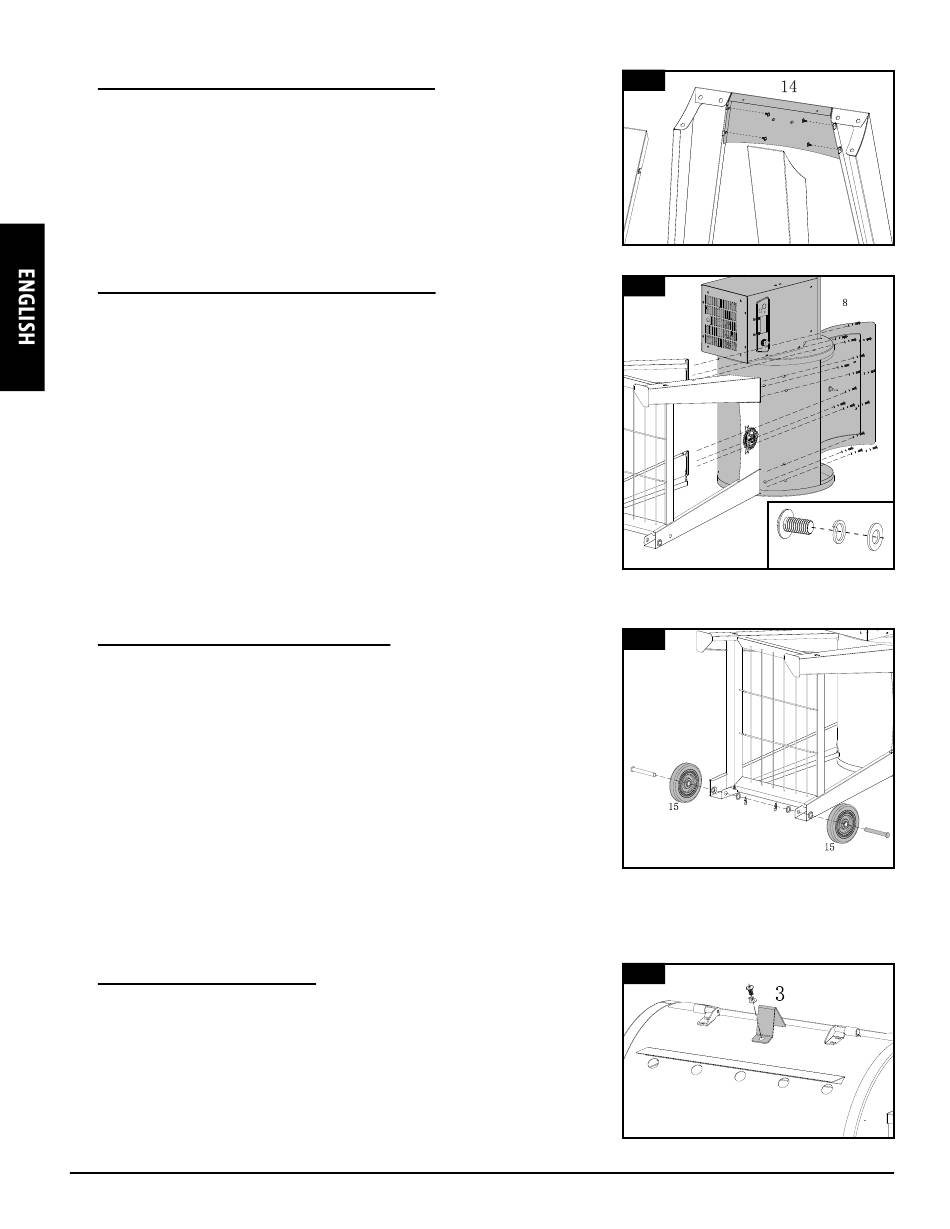

2. INSTALL THE CART PLATE TO SUPPORT LEGS
Parts Required:
1
x
Cart Plate (#14)
4
x
Screw (#G)
Installation:
Install the cart plate to the front two support legs of the unit using
four screws. Plate will be flush with the front two legs once secure.
3. MOUNTING THE LEGS TO THE MAIN BARREL
Parts Required:
Main Barrel (#8)
1
x
12 x
Screw (#A)
12 x
Locking Washer (#B)
12 x
Washer (#C)
Installation:
Place a piece of cardboard on the floor to prevent scratching the unit.
Lay Main Barrel (#8) down on its side, hopper end pointed upward, on
the cardboard.
Assemble two stationary Support legs onto main barrel (side closet to
the hopper) . Install six washers (#C) , locking washers (#B) , and screws
(#A) from the outside of the Main Barrel (#8) , towards the inside.
NOTE: Once all screw are installed, then tighten securely into the legs.
4. MOUNTING THE WHEELS TO THE LEGS
Parts Required:
1
x
Wheels (#15)
2
x
Wheel Cotter Pin (#D)
Wheel Washer (#E)
2
x
Wheel Axle Pin (#F)
2
x
Installation:
Attach the wheel (#15) to the leg by inserting the wheel axel pin (#F)
through the leg hole, wheel washer (#E) , and finally secure using the
wheel cotter pin (#D) .
NOTE: Illustration for order
Repeat installation for the other wheel.
Carefully lift the grill into an upright position.
5. SECURING THE LID STOPPER
Parts Required:
1
x
Main Barrel (#8)
Lid Stopper (#3)
1
x
Installation:
Secure the lid stopper (#3) onto the top of the main barrel (#8) using the
pre-installed screw on top of the main barrel.
8
2
G
G
3
A
4
5
B
C
