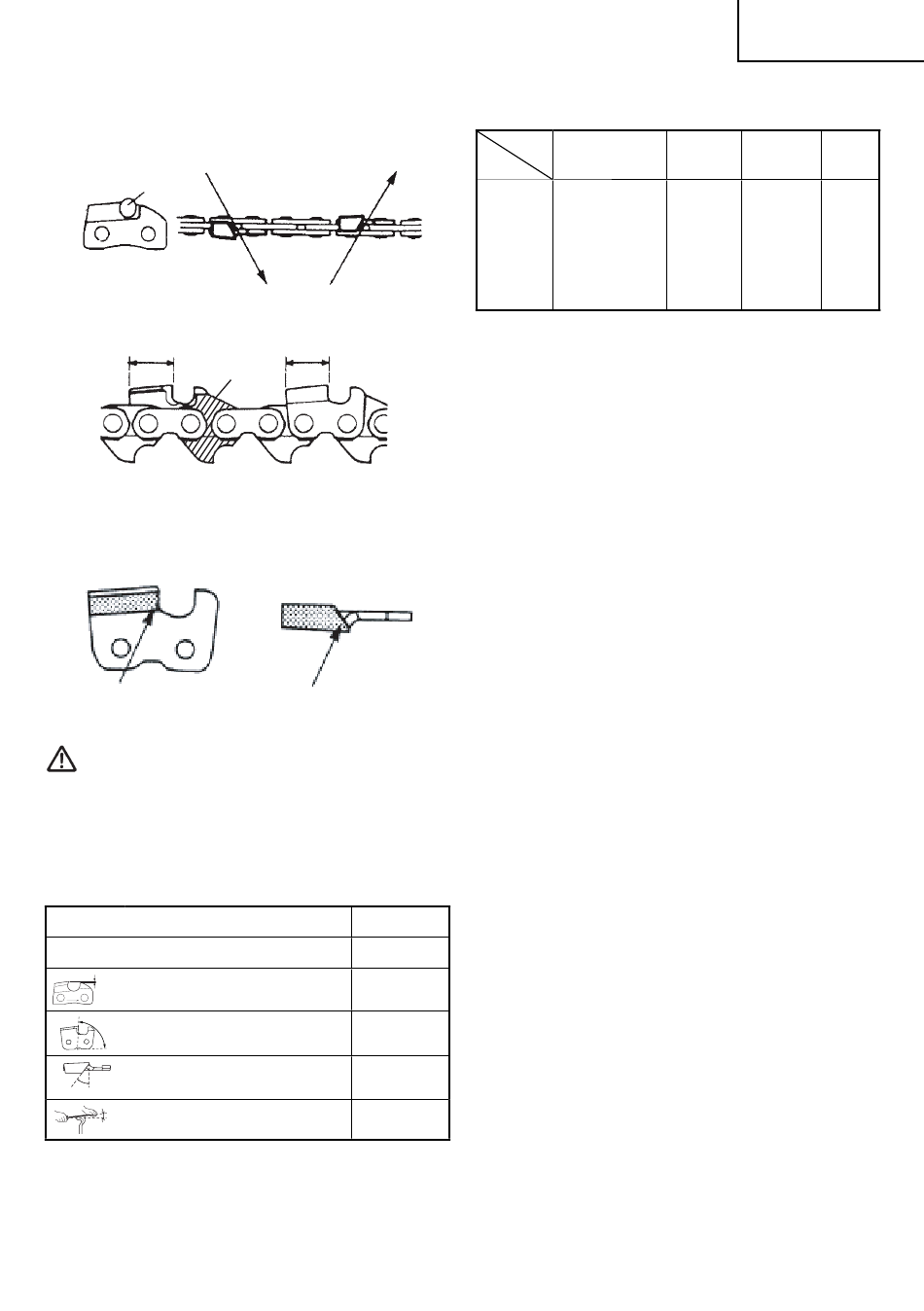

General instructions for fi ling cutters
File (63) cutter on one side of the chain from the
inside out. File on forward stroke only. (Fig. 50)
63
5) Keep all cutters the same length. (Fig. 51)
6) File enough to remove any damage to cutting
edges (side plate (65) and top plate (66)) of
cutter. (Fig. 52)
65
WARNING
○ Do not fi le or alter the tops of bumper drive links
(64). (Fig. 51)
○ Adjust the depth gauge to the specifi ed setting.
Sharpening angles for sharpening
saw chain
1. Part Number
2. Pitch
3. Depth Gauge Setting
0.025"
4. Side Plate Filing Angle
85°
5. Top Plate Angle
30°
6. File Guide Angle
10°
63
63
Fig. 50
64
Fig. 51
66
Fig. 52
95VP/95VPX
0.325"
0.025"
85°
30°
10°
Replacement bar and chain combination
BAR NO.
150MLBK041
160MLBK041
MODEL
180MLBK041
NO.
150MLBK041
OREGON
160MLBK041
180MLBK041
Maintenance schedule
Below you will fi nd some general maintenance
instructions. For further information please contact
Hitachi Authorized Service Centers.
Inspection and service before use
○ Check that no damage is observed in the Anti-
Vibration springs, and no loosening or damage
is observed in their fi xtures.
○ Check that no deformation or damage is
observed in the front and rear handles.
○ Check that the fi xtures for front and rear handles
are suffi ciently tightened and free of damage.
○ Check that bolts, nuts, etc. used for each part
are suffi ciently tightened and free of damage.
Daily maintenance
○ Clean the exterior of the unit.
○ Clean the chain oil fi lter port.
○ Clean the groove and oil fi lter port in the guide
bar.
○ Clean the side case of saw dust.
○ Check that the saw chain is sharp.
○ Check that the bar nuts are suffi ciently tightened.
○ Make sure that the chain transport guard is
undamaged and that it can be securely fi tted.
○ Check that nuts and screws are suffi ciently
tightened.
Especially inspect the bolt of muffl er and ensure
that they are properly tightened before starting
engine. Should any of the bolts be loose,
retighten them immediately. Failure to do so
could result in serious hazard.
○ Check the tip of the guide bar. Please exchange
it for the new one when it is worn out.
○ Check the band of chain brake. Please exchange
it for the new one when it is worn out.
○ Clean the air fi lter.
Weekly maintenance
○ Check the recoil starter, especially cord and
return spring.
○ Clean the exterior of the spark plug.
English
LENGTH-
CHAIN
CKA
TYPE
NO.
15"
95VP-64
28
16"
95VP-66
27
18"
95VP-72
27
15"
95VPX-64
28
16"
95VPX-66
30
18"
95VPX-72
24
19
