Please note!
● Min. speaker impedance all channels min. 2 Ohms!
● For mono operation/bridged output both inputs (L&R) must still be used
(if necessary use Y-adaptors)!
● A main fuse (not included) of appropriate amperage must be installed within 30 cm of
the car battery!
36
All manuals and user guides at all-guides.com

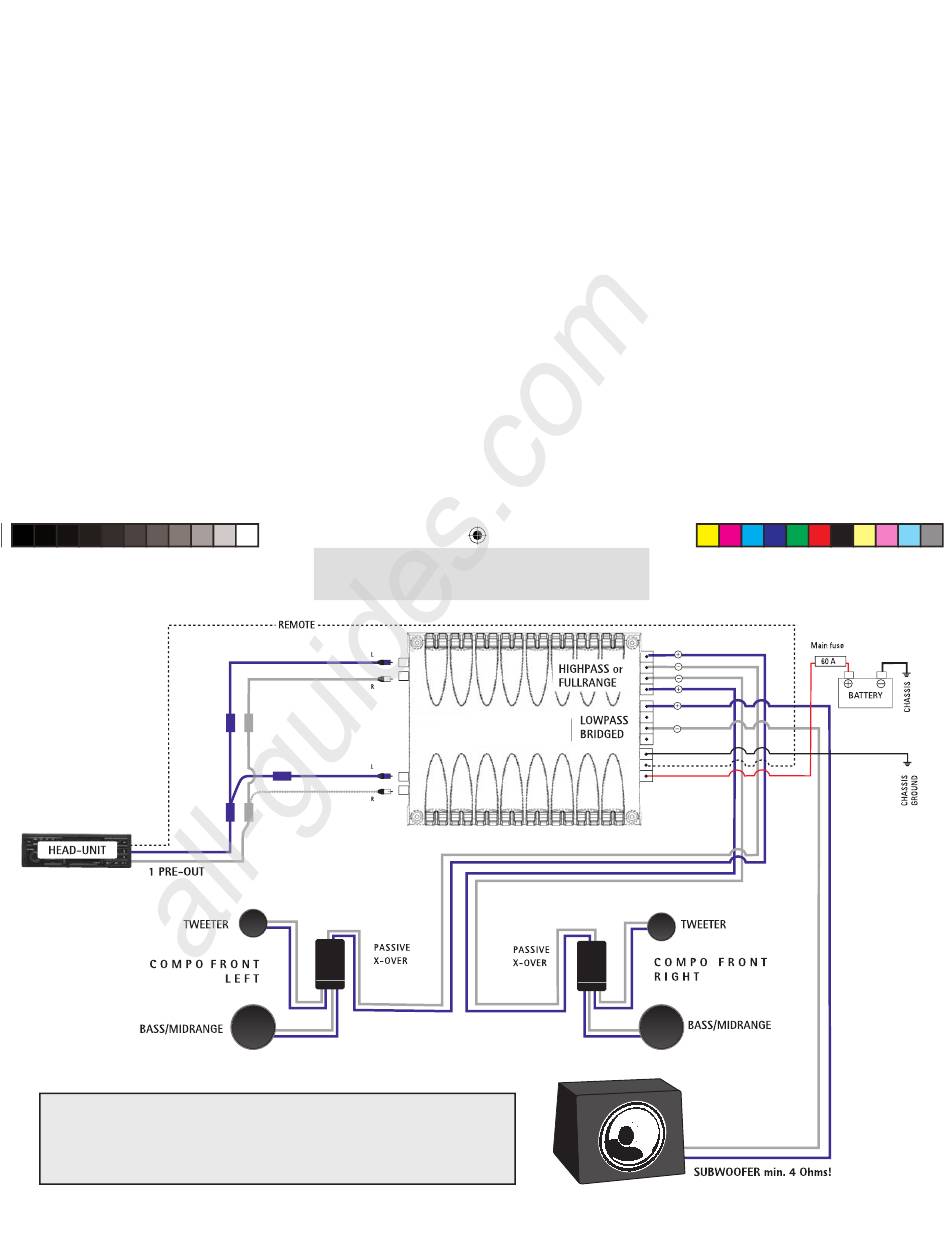

CONNECTING DIAGRAM 4 C509
1 Pre-Out 3-Channel Operation
C509
