Stereo/Mono Operation

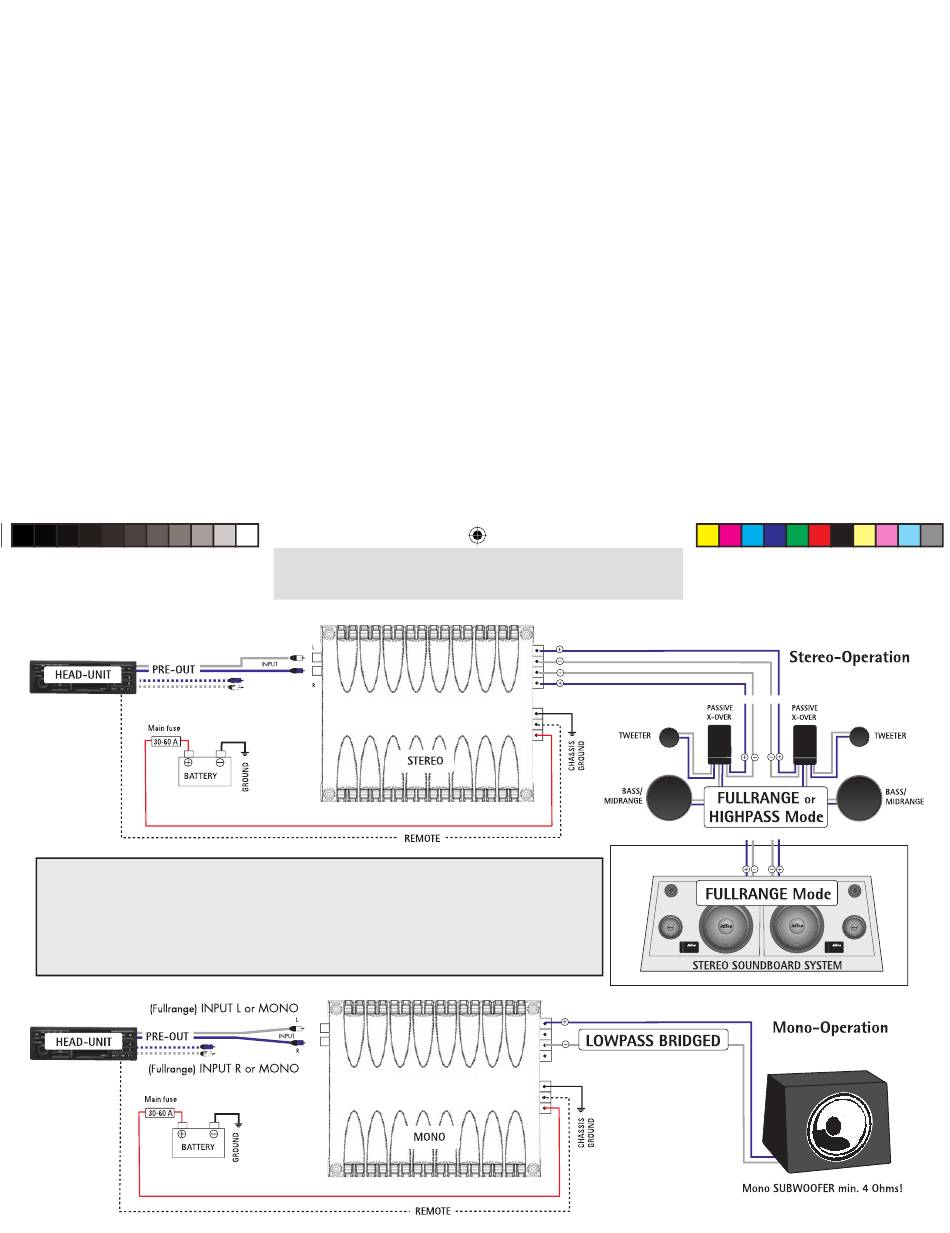

CONNECTING DIAGRAM 1+2 C209 / C409
C209/C409
Please note!
● The AXTON C209 and C409 amplifier models may be used in FULLRANGE, HIGHPASS or LOWPASS
mode.
● In stereo operation speaker impedance may be 2-4 Ohms.
● In bridged mono operation minimum speaker impedance is 4 Ohms.
● For mono operation/bridged output both inputs (L&R) must still be used (if necessary use
Y-adaptors)!
● A main fuse (not included) of appropriate amperage must be installed within 30 cm of the car battery!
