36 AVENTICS | PROFIBUS DP | R402000616–BDL–001–AF

Electrical connections

1 4
2 3
Fig. 4: X1S plug
7 Electrical connections
7.1

Power supply connections

Damage to the device by inserting or disconnecting plugs
when power is on!
Differences in voltages will damage the electronics in the
device.
O
Plug connectors must not be plugged in or pulled under
load. Make sure the relevant system component is not
under voltage before assembling or when connecting and
disconnecting plugs.

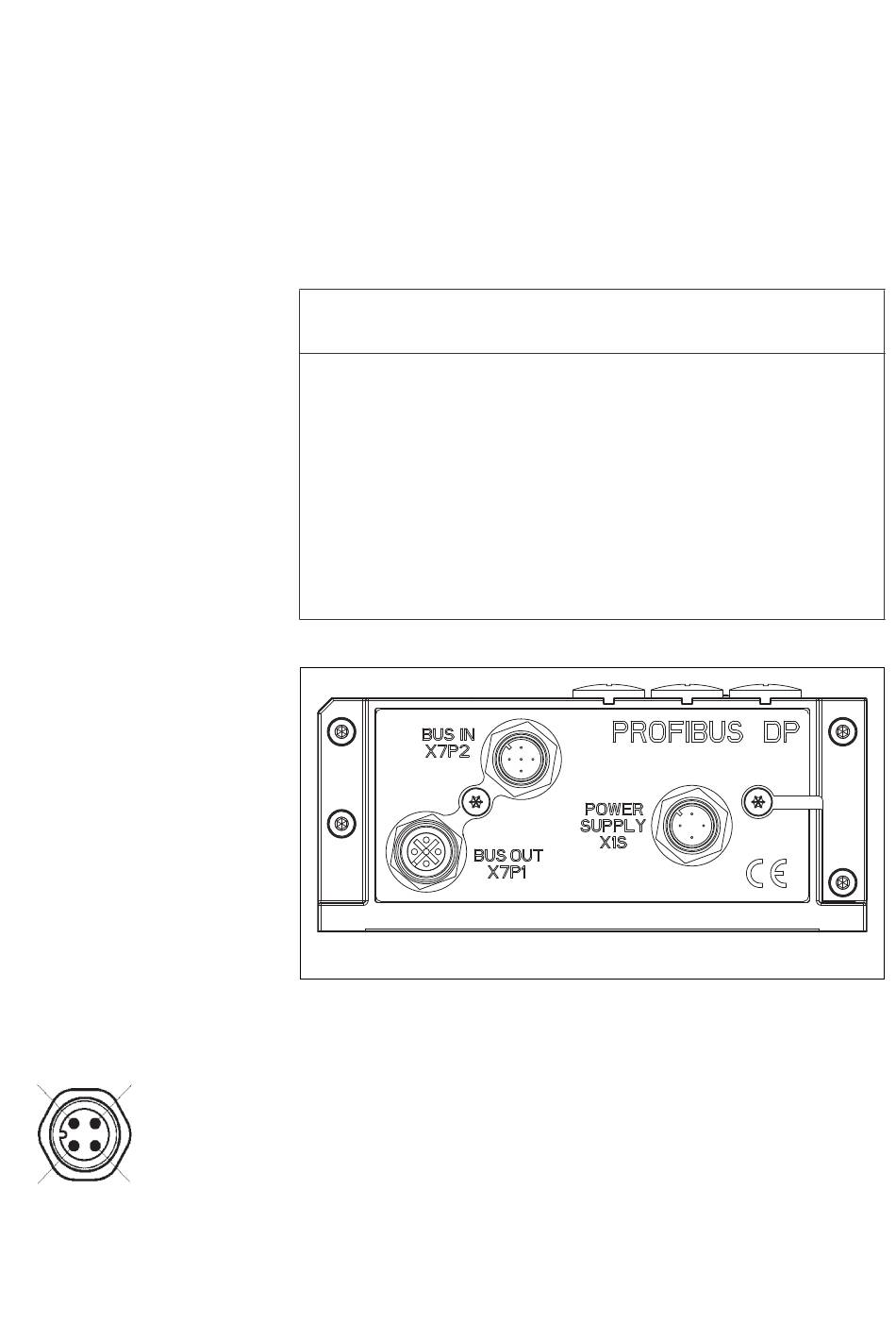

Fig. 3: Power supply and data line connections
For power supply of the bus coupler, connector X1S (M12, 4 pin,
male) must be used, see Fig 4.
1 Pin 1: 24 V electronics
2 Pin 2: 24 V valves
3 Pin 3: 0 V
4 Pin 4: FE
NOTICE
