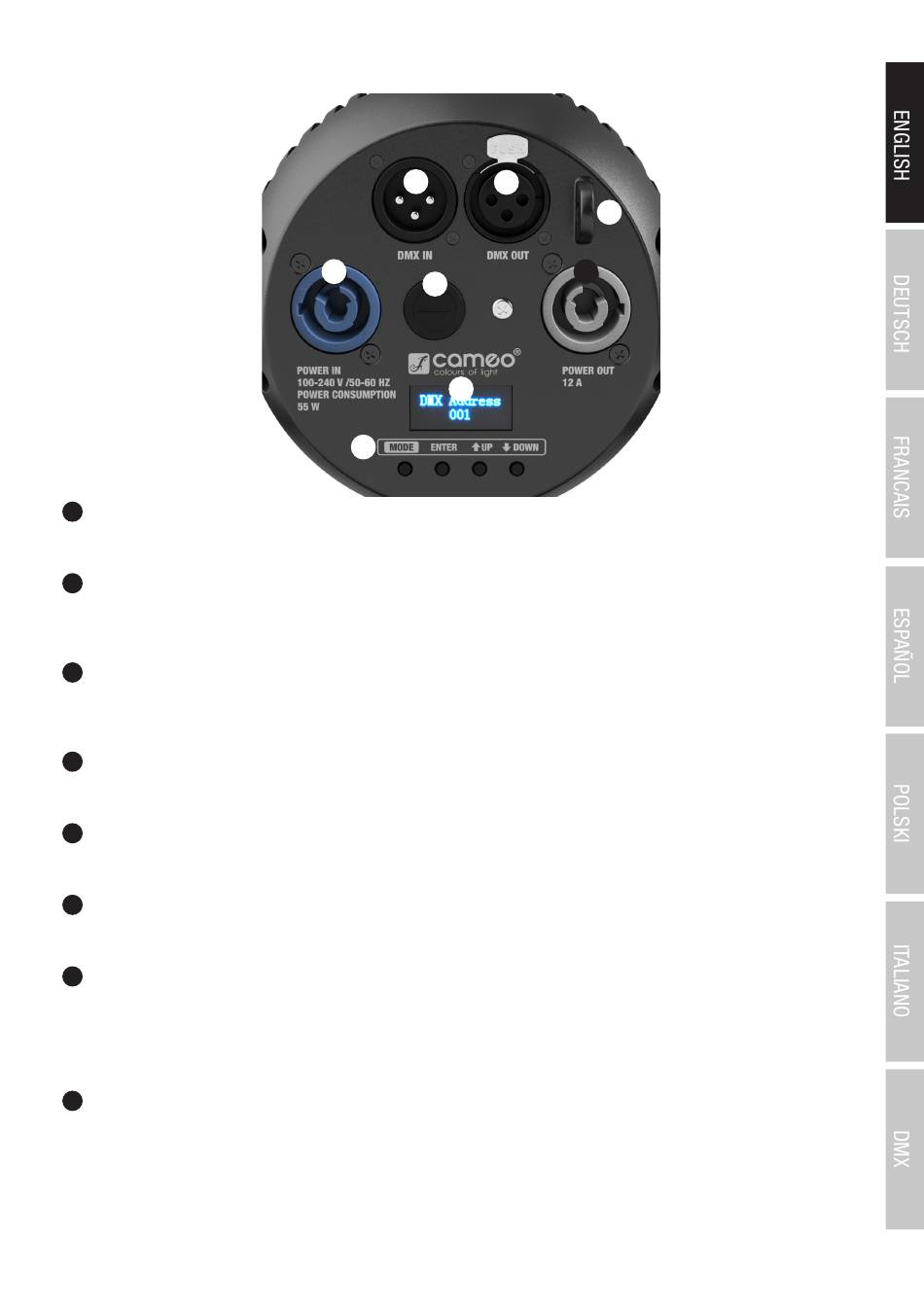

CONNECTIONS, OPERATING AND DISPLAY ELEMENTS

1
POWER IN
Blue power input socket for power supply to the device. A suitable power cable is included.
2
POWER OUT
White power output socket for the power supply of additional CAMEO spotlights. Ensure that the total current consumption of all connected
devices does not exceed the value specified on the device in amperes (A).
3
FUSE
Fuse holder. Fuse T1A/250 V (5 x 20 mm) IMPORTANT: Replace the fuse only with a fuse of the same type and value. In the event of repeated
fuse failure, please contact an authorised service centre.
4
DMX IN
Male 3-pin XLR socket for connection to a DMX control device (e.g. DMX console).
5
DMX OUT
Female 3-pin XLR socket for sending the DMX control signal.
6

OLED DISPLAY

The OLED display shows the operating mode and other system information.
7
CONTROL BUTTONS
MODE – press MODE to access the selection menu for system settings. Press repeatedly to go back to the main display. ENTER – press ENTER
to access the menu levels to make value changes, and to access the sub-menus. Confirm value changes by pressing ENTER. UP and DOWN –
select individual menu items in the selection menu (DMX address, operating mode etc.) and in the sub-menus. Allow changes to the value of a
menu item, such as the DMX address as required.
8
EYELET FOR SECURING CABLE
Overhead installation must only be carried out by qualified personnel. A suitable safety cable must be fitted to the floodlight's eyelet to
ensure that it does not fall down.
4
5
1
3
6
7
8
2
5
