ENGLISH

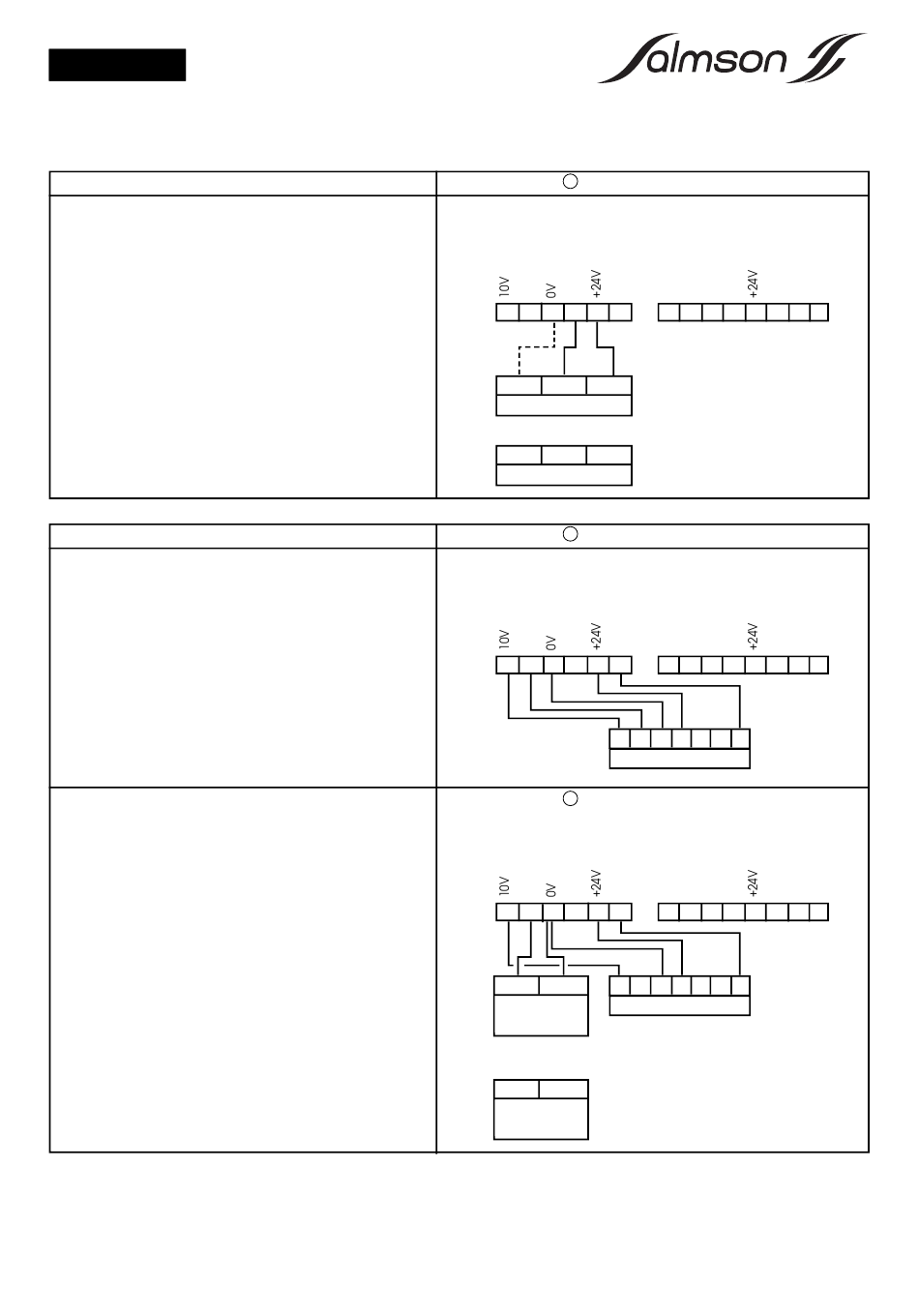

1 - Connection of the pressure sensor
- Pressure sensor 4-20mA
• 2 wires (4-20mA / +24V)
• 3 wires (0V / 4-20mA / +24V)
- Pressure sensor 0-10V
• 3 wires (0V / 0-10V / +24V)
2 - Connection of the potentiometer
- Adjustment of set value by potentiometer
- Adjustment by external set value control
All manuals and user guides at all-guides.com
17
Diagram 1
CONVERTER
1 2 3 4 5 6 7
0V 4-20mA +24V
Sensor
Ou
0V 0-10V +24V
Sensor
Diagram 2
CONVERTER
1 2 3 4 5 6 7
1 2 3
Potentiometer
Diagram
3
CONVERTER
1 2 3 4 5 6 7
0-20mA
0V 1 2 3
External
Potentiometer
control
Or
0V
0-10V
External
control
8 9 10 11 12 13 14
8 9 10 11 12 13 14
4 5 6 7
8 9 10 11 12 13 14
4 5 6 7
