9. Swap blue plug E of the charging socket with the plug with the
hole F.
10. Insert connector G on the electronics cover into charger socket H
of the battery pack.
!
IMPORTANT
▸ Make sure that the connector is positioned correctly.

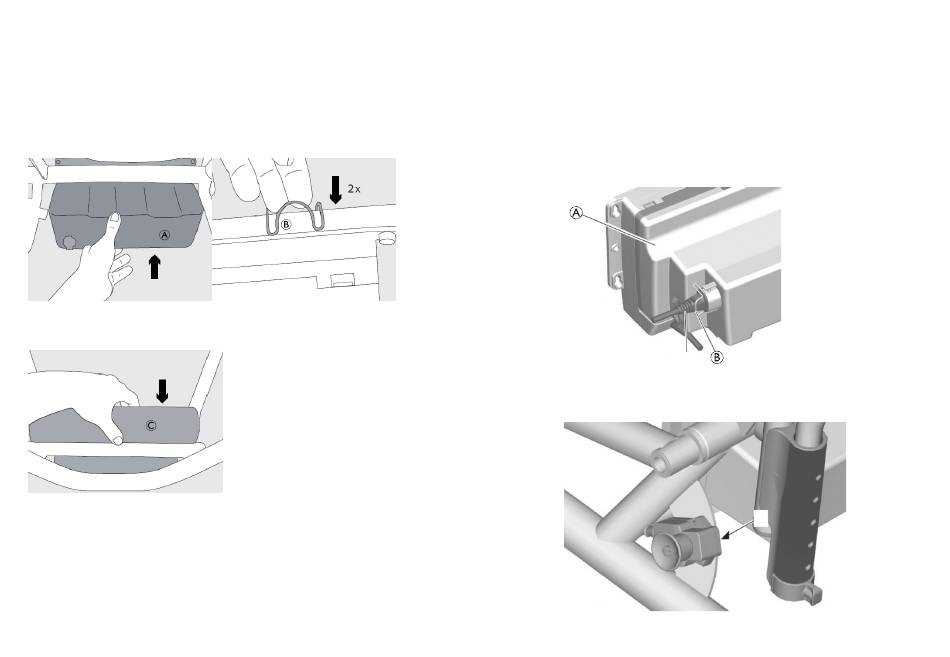

11. Attach the front section A to the electronic cover and secure it on
the tube with safety clips B.
12. Attach the rear part of the electronics cover C from above.
Removal:
The electronics cover is removed in the reverse order to installation.
12

4.10 Removing the battery pack

1. Remove the electronics cover, see 4.9 Fitting the electronics cover,
Removal.
!
IMPORTANT
▸ Make sure that the connector between
the electronics cover and the battery pack is disconnected.
2. Draw the footrests upwards out of the guides and place them to
one side.
3. Fold safety bar B forward and remove connector C from battery
pack A.
4. Insert the connector cable in cable holder A.
Assembly and installation
A
