AXIS Q7900 Installation Guide
Video channel 1

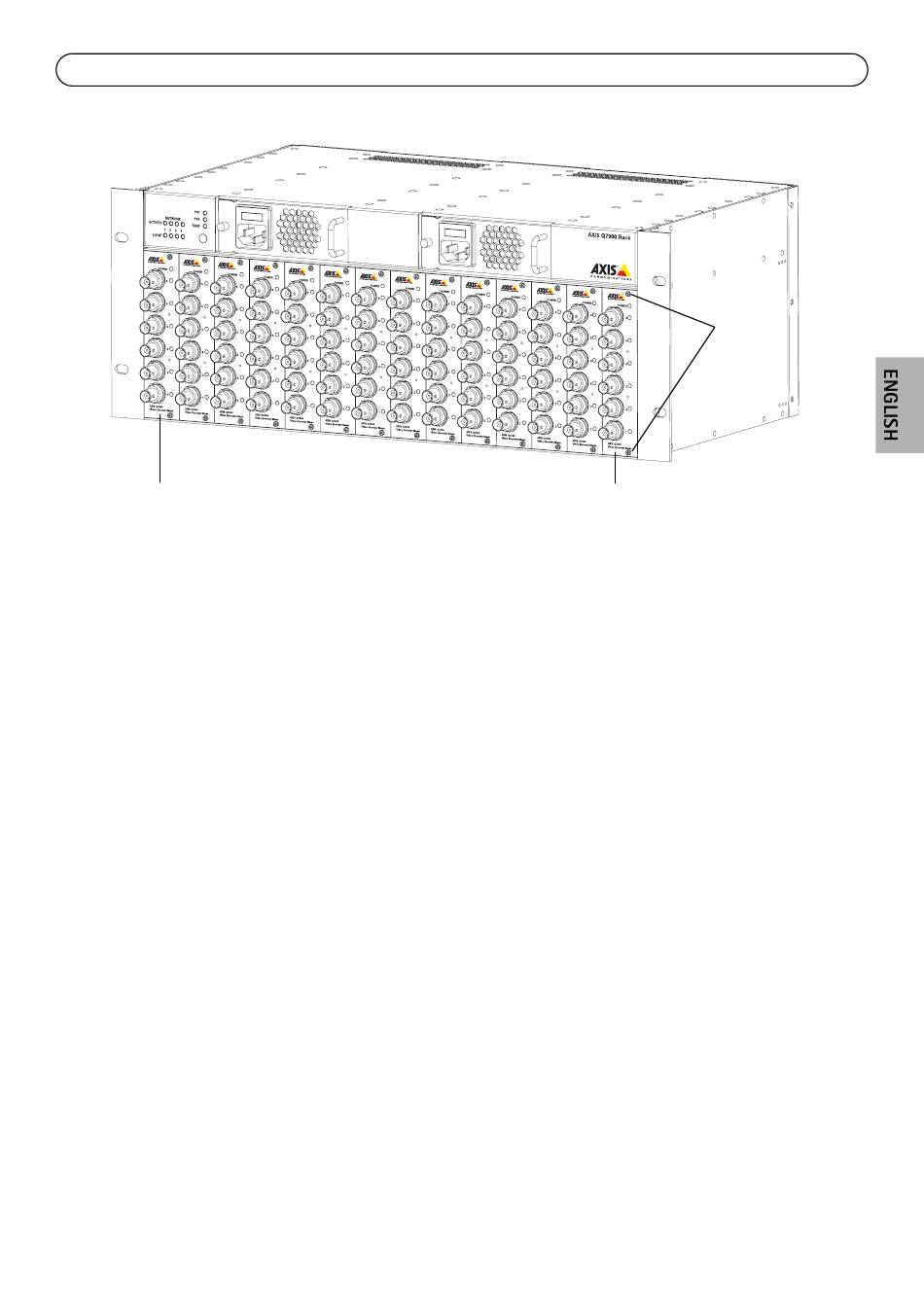

Follow these steps to mount an Axis video encoder blade in the AXIS Q7900:
1. If there is a a front panel cover, remove it from the slot in to which the video encoder will be
mounted. This is done by unfastening the screw at the top and bottom of the cover.
2. Slide the video encoder into place, using the guides as an aid. Make sure that video channel (1)
is at the bottom of the blade when it is inserted into the AXIS Q7900.
3. Fix the video encoder in place, using the screws from the front panel cover.
Note:
Front panel covers should be used on all empty slots.
Screws
Video channel 14
