LOCATION AND INSTALLATION

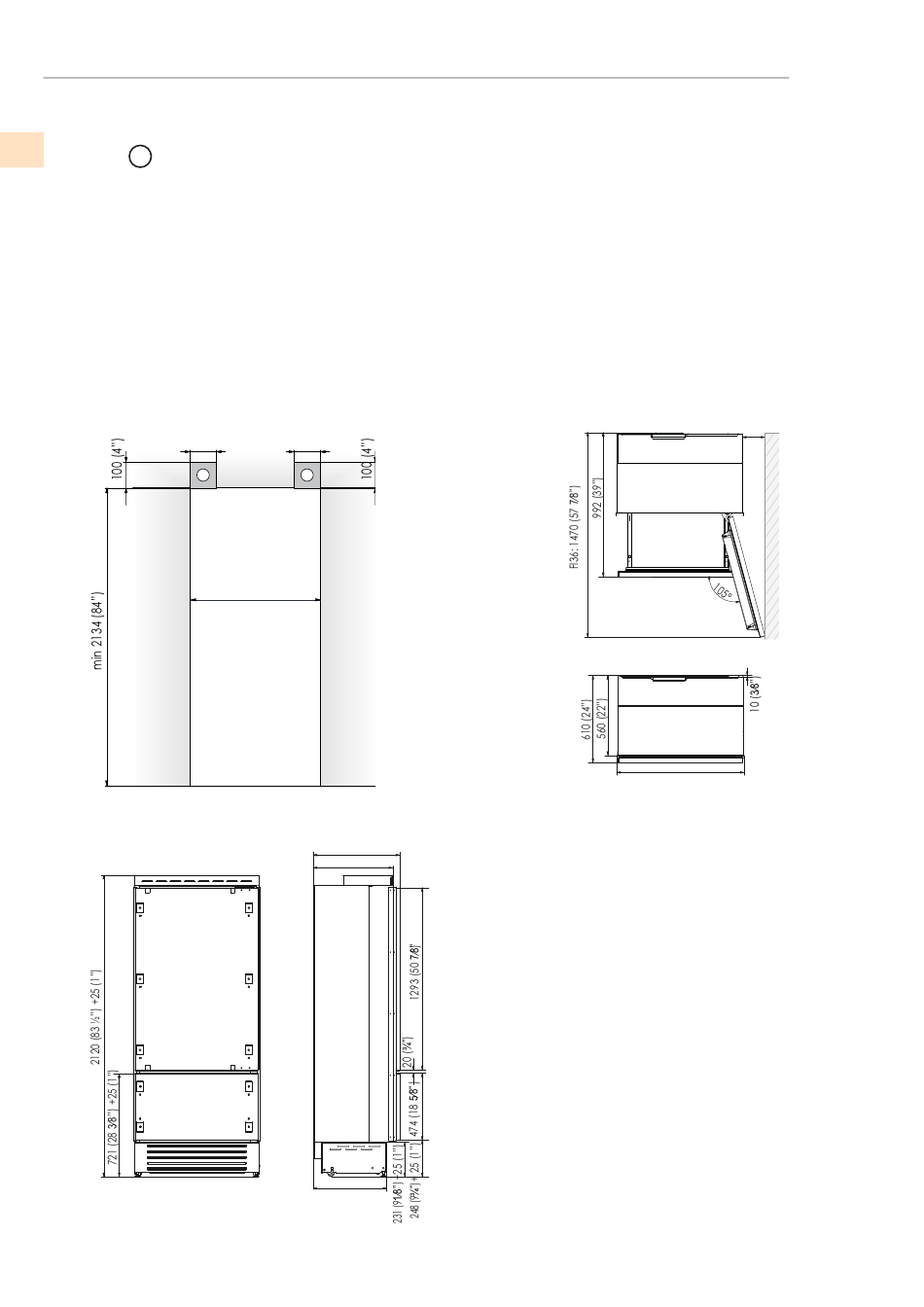

INSTALLATION CUT-OUT FEATURES - KRB MODELS
EN
A Area to be left clear for the anti-tip brackets
Cut-out Height
2134 mm (84")
Cut-out Width
900 mm (35 1/2")
Door Swing Clearance
1470 mm (57 7/8")
140 (5 ½")
6
©2018 Hestan Commercial Corporation
140 (5 ½")
A A
900 (35 ½")
610 (24")
560 (22")
500 (19 ¾"
(continued)
)
Door Opening Angle
105°
Width
899 mm (35 3/8")
Height
2120 mm (83 1/2") + 25 mm (1")
Depth with door (without panel)
610 mm (24" )
899 (35 3⁄8")
160 (6 3⁄8")
