Installation Of The Unit - 3M ESPE Paradigm DeepCure Mode D'emploi

Intermittent operation: The device has been designed
Total exposure time
with new, fully
charged battery:
Dimensions:
Weight:
Typ B
Charger and Handpiece
Time to charge
empty battery:
Operating temperature: 10 °C up to 40 °C /
Relative humidity:
Atmospheric pressure: 700 hPa up to 1060 hPa
Transport and Storage Conditions:
Ambient temperature range: -20 °C up to +40 °C /
Relative humidity:
Atmospheric pressure:
Subject to technical modification without prior notice.

Installation of the Unit

Factory Settings
The factory settings of the device are as follows:
• 10 sec exposure time
4
solely for short-term operation.
Typical operating time at room
temperature (23 °C): 7 min,
at 40 °C ambient temperature:
1 min on, 15 min off (cooling-off
period)
Typically 120 min
Diameter: 28 mm
Length: 270 mm
180 g (incl. light guide)
Approx. 2 h
59 °F up to 104 °F
30% up to 75%
-4 °F up to +104 °F
+40°C
+104°F
–20°C
–4°F
30% up to 75%
75%
max.
30%
700 hPa up to 1060 hPa
1060
hPa
700
Initial Steps
Charger

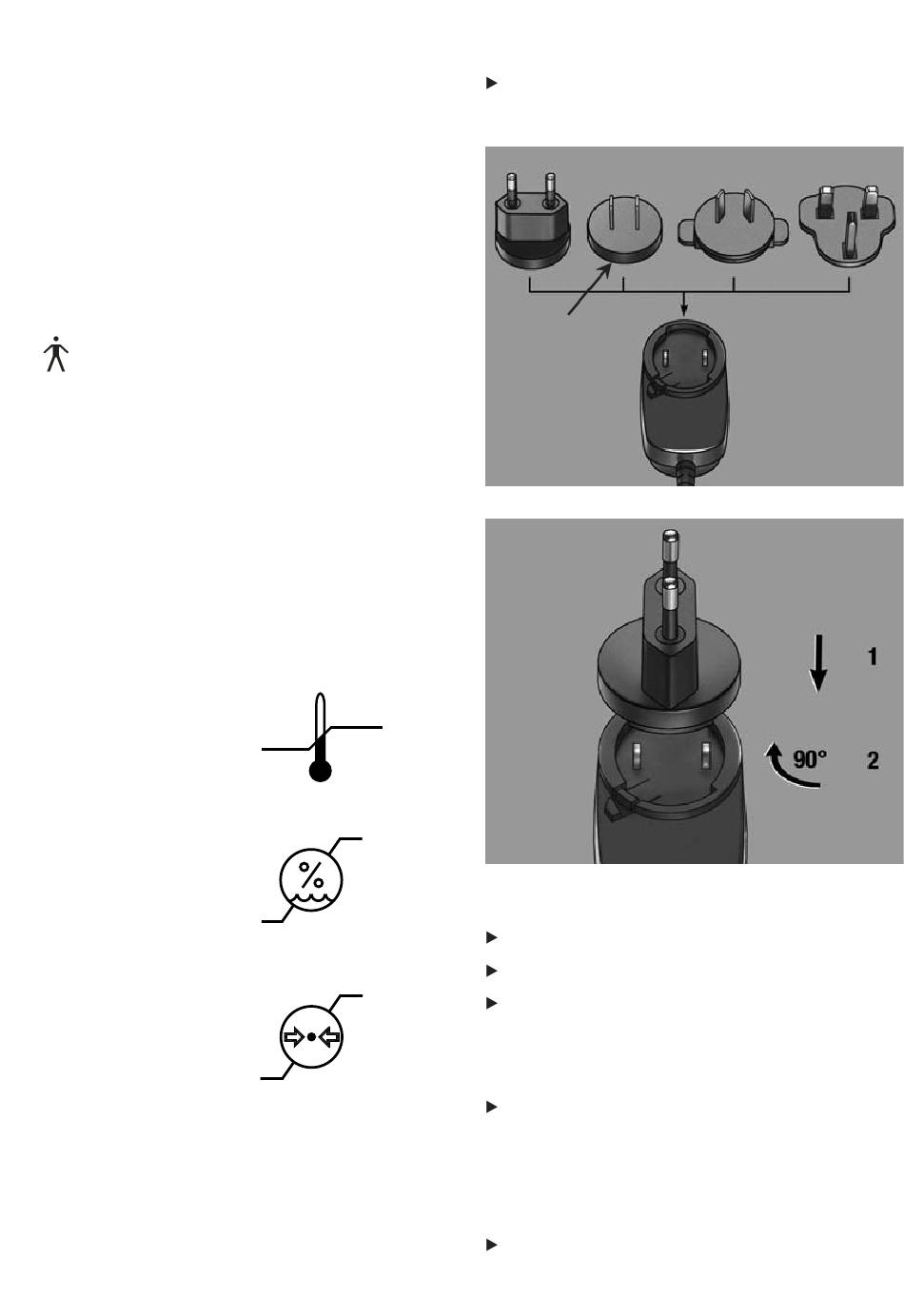

Select the plug adapter specific to the country and
place it on the charger.
Plug adapter
Light Guide/Handpiece
Place the glare shield on the front of the device.
Autoclave the light guide prior to first use.
Then attach the light guide to the handpiece until it
noticeably locks into place (see Section "Removing
and Inserting the Light Guide from/into the Hand-
piece").
If the device malfunctions, insert the charger plug
into the charging socket of the handpiece. The device
will reset itself and can then be used again.
Battery Charging
The device contains a powerful lithium-ion recharge-
able battery. This type of battery does not have any
Charger
