BML-S2C0-Q _ _ _ -M6 _ _ - _ 0-KA _ _ /KF _ _ /KA _ _-S284
Incremental Magnetic Linear Encoder
4

Installation and connection

4.1

Distances and tolerances

During assembly, make sure that the sensor is correctly
positioned over the magnetic tape. The distances and
tolerances must be complied with to ensure the correct
function and linearity class of the system. A gap of 3 mm is
recommended.
Linear and rotative applications:
X
20
Z
Forwards direction of travel,
A before B
Free area of magnetizable material

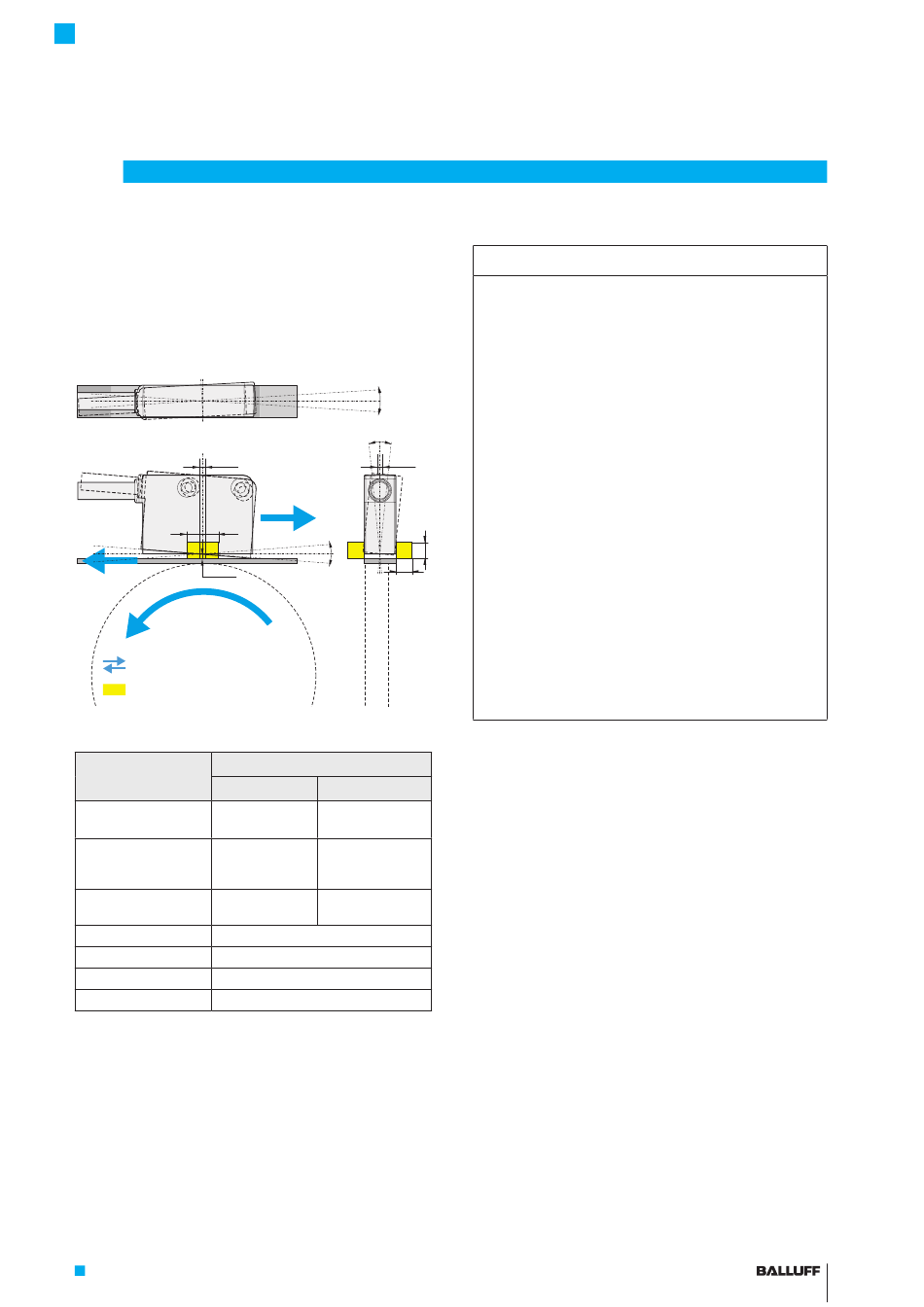

Fig. 4-1:
Distances and tolerances
Working range
Accuracy class
(See section 8.1)
Z
1 to 5 mm
(sensor/magnetic tape
(with cover strip
gap)
max. 4.85 mm)
Y
Max. ±2 mm
(side offset)
X
Yaw
Pitch
Roll
www.balluff.com
+Yaw
–Yaw
–Roll
+Roll
Y
–Pitch
5
5
+Pitch
Distances/angles
Function range
I
II
0 tp 6.5 mm
Max. ±4 mm
Max. ±0.5 mm
< ±3°
< ±1°
< ±3°
4.2

Assembling the sensor head

NOTICE!
Interference in function
Improper assembly of the magnetic tape and sensor
head may impair function of the position measuring
system and lead to increased wear or damage to the
system.
► All permissible distance and angle tolerances (see
section 4.1) must be strictly complied with.
► The sensor head may not come into contact with
the magnetic tape over the entire measuring range.
Contact must also be avoided if the magnetic tape is
covered by a cover strip (optional).
► The position measuring system must be installed in
accordance with the indicated degree of protection.
External magnetic fields change the functional properties.
► The magnetic tape may not be influenced by strong
external magnetic fields (> 30 mT).
► Direct contact with magnetic clamps or other
permanent magnets must be avoided.
No forces may be exerted on the cable on the housing.
► Provide the cable with a strain relief.
A too-high tightening torque may damage the housing.
► Tighten the mounting screws (M3x14-8.8 cylinder
screws according to DIN 912) with a torque of
< 0.7 Nm.
english
9
