2 Power Supply Cord–Prepare hole
Wood
cabinet
Wood cabinet: Sand hole until smooth.
Metal cabinet: Cover hole with grommet included with
power supply cord kit.
Option B, Direct Wire:
Helpful Tip: Wiring the dishwasher will be easier if you
route the cable into the cabinet opening from the right side.

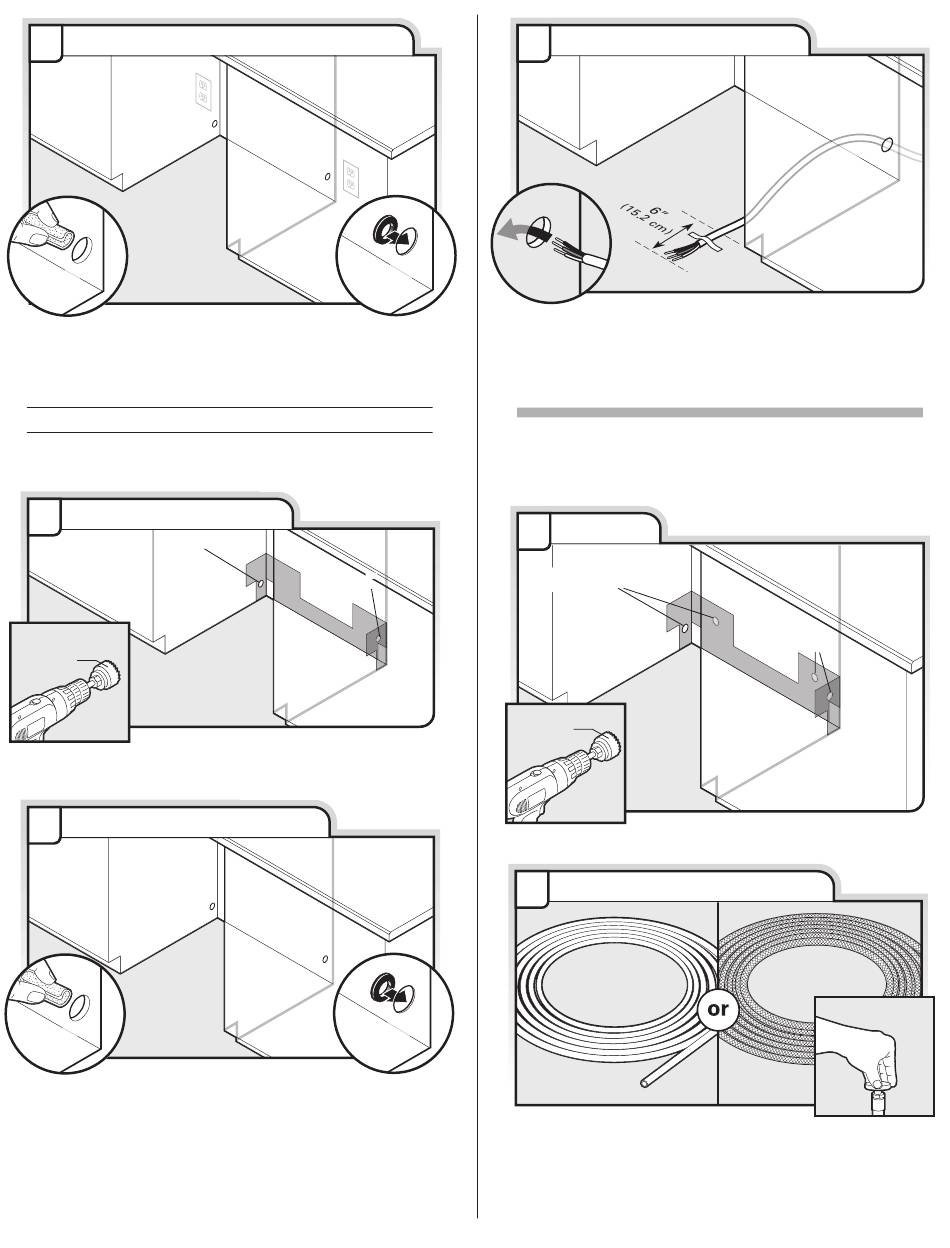

Direct Wire–Drill hole
1
Optional location
3/4"
(1.9 cm)
Drill a 3/4" (1.9 cm) hole in right-hand cabinet side or rear.
See product and cabinet opening dimensions.
2 Direct Wire–Prepare hole
Wood
cabinet
Wood cabinet: Sand the hole until smooth.
Metal cabinet: Cover hole with grommet (not provided).
8
Metal
cabinet
Preferred location Preferred location Preferred location
Metal
cabinet
3 Direct Wire–Route cable
Route cable from power supply through cabinet hole (cable
must extend to the right front side of cabinet opening).
Tape cable to the floor in area shown. This will prohibit
cable from moving when dishwasher is moved into
cabinet opening.

Prepare and Route Water Line

Helpful Tip: Routing the water line through the left side
of cabinet opening will make water connection easier.
1 Drill hole
Preferred locations Preferred locations Preferred locations
1/2"
(1.3 cm)
Drill a 1/2" (1.3 cm) hole in the cabinet side or rear.
2 Measure water supply line
Measure overall length of copper tubing or flexible
braided water supply line. Attach to the hot water line
using a connection configuration that is in compliance
with local codes and ordinances. The water line to the
dishwasher should have a manual shutoff valve.
Optional locations Optional locations Optional locations
Hot water line
