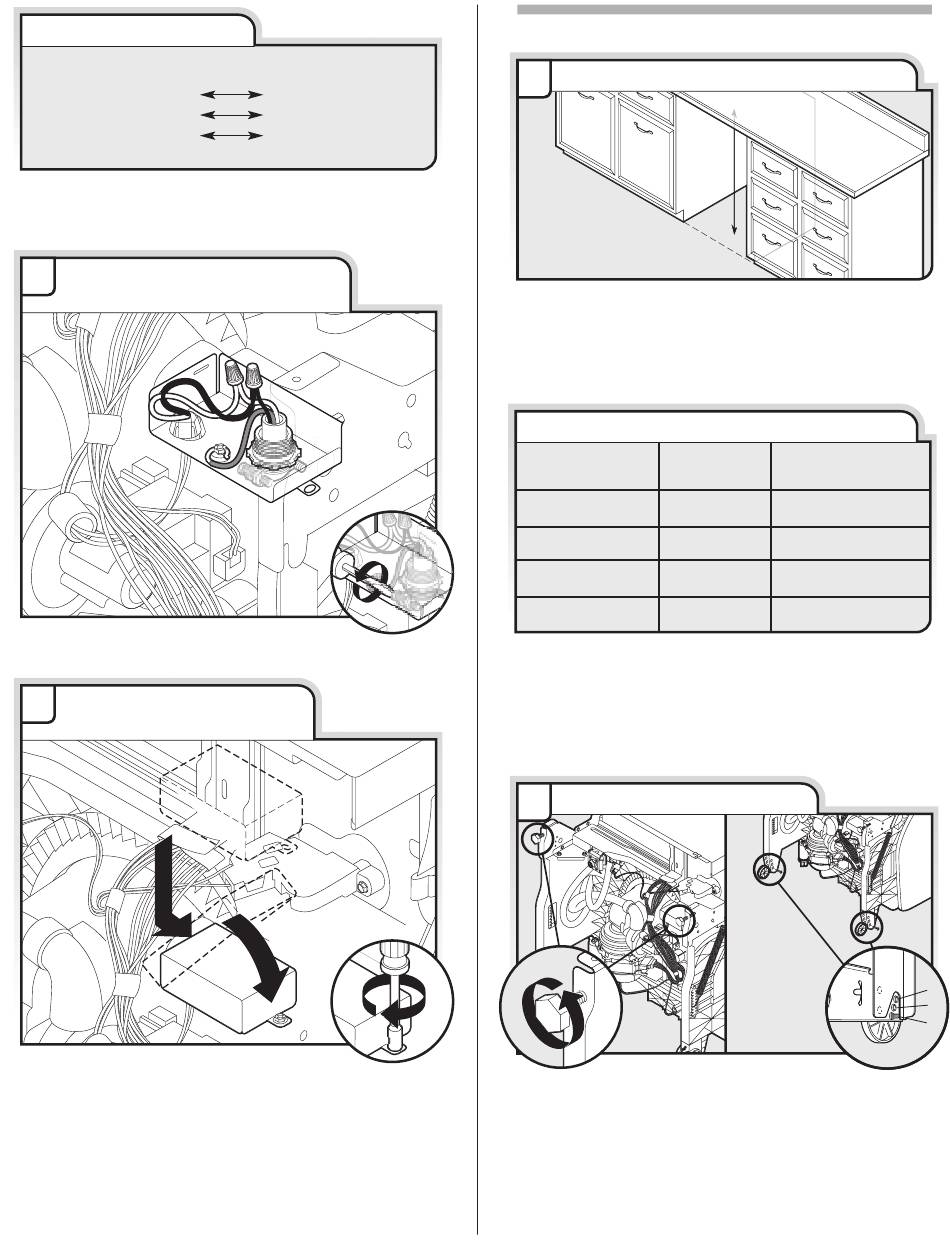

Wiring configuration
Power supply wire:
white
black
ground wire
If needed, see website for animated representation of
this step. Visit www.kitchenaid.com under FAQ tab.
4
Power Cord - Secure cord
on strain relief
Tighten strain relief screws to secure cord.
5
Power Cord—Reinstall
terminal box cover
Place wires inside terminal box. Insert tabs on left side
of cover. Make sure wires are tucked inside box. Close
cover ensuring wires are not pinched. Use 1/4" nut
driver and previously removed screw to secure cover.
NOTE: Do not plug into outlet until instructed to do so.
Terminal box wire:
white
black
ground connector
Determine Cabinet Opening
1
Measure cabinet opening
Measure height of cabinet opening from underside of
countertop to floor where dishwasher will be installed
(you will need to measure the lowest point on the
underside of the countertop and the highest point on the
floor). Refer to "Dishwasher Height Adjustment Chart"
for wheel position and the number of turns needed.
Dishwasher Height Adjustment Chart
Cabinet
Wheel
opening height
position
33 7/8" (86.0 cm)
remove
34" (86.4 cm)
34 1/4" (87 cm)
34 1/2" (87.6 cm)
NOTE: If the minimum cabinet opening height is less than
34"(86.4 cm), the rear wheels can be removed for
additional clearance. This will allow the dishwasher to fit
into a 33 7/8" (86 cm) high cabinet opening, but the
dishwasher will be more difficult to move. (Measurements
are approximate. Wheels and legs are preset at the
factory for 34 1/2" [87.6 cm].)
Adjust wheels and legs
2
Turn both leveler legs to the same height. Put wheels in
the required position determined from "Dishwasher
Height Adjustment Chart."
Number of turns
on front leg
All the way up
1
10
2
5
3
0
wheel
1
2
3
13
