Make Power Supply Cord Connection - KitchenAid KUDS40FVPA Instructions D'installation

6

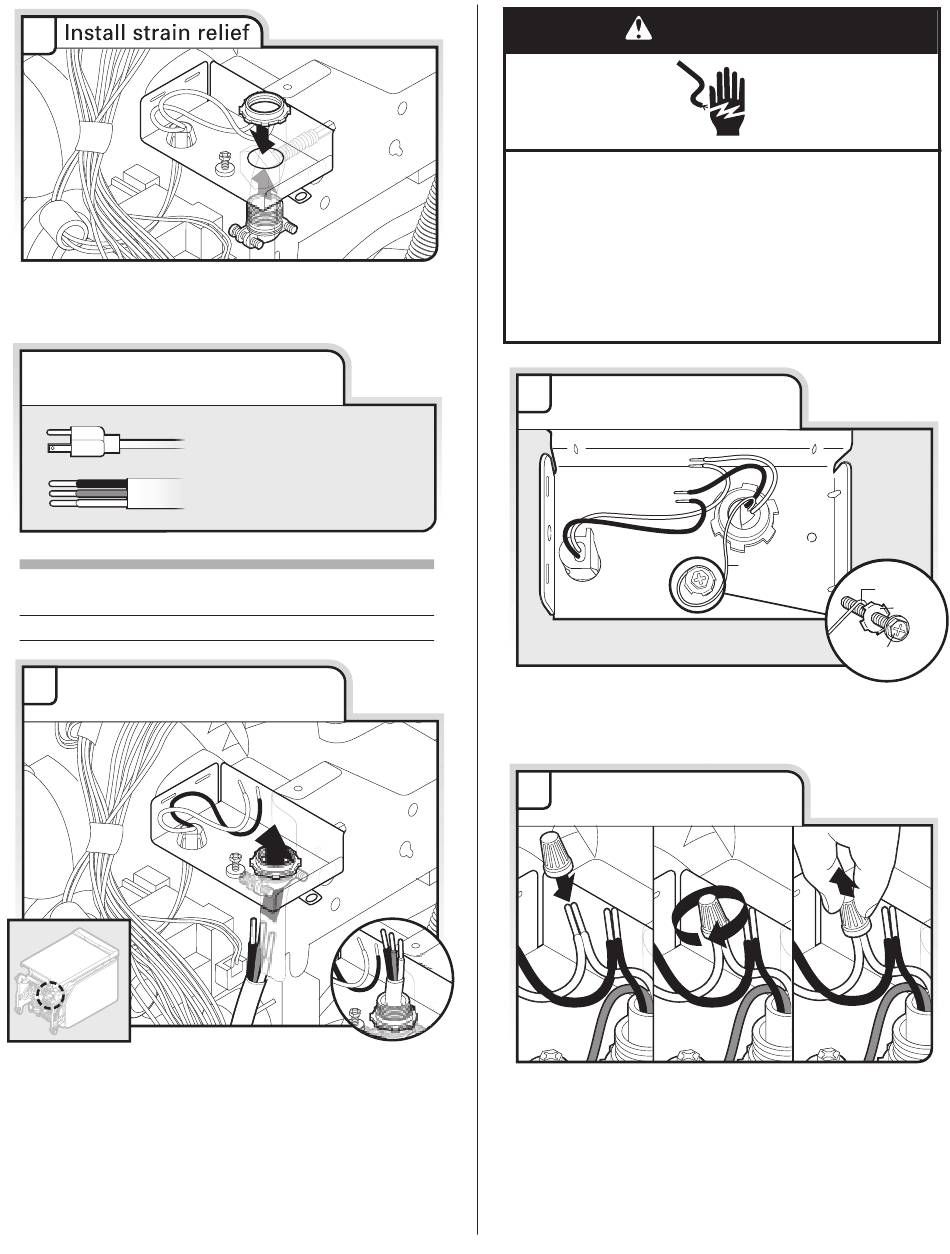

Install a UL listed or CSA approved strain relief. Make sure
screwheads are facing to the left when tightening conduit
nut. Strain relief is provided with the power supply cord kit.
What type of electrical
connection will you use?
Power Supply Cord:
Follow Option A instructions
Direct Wire:
Follow Option B instructions

Make Power Supply Cord Connection

Option A, Power Supply Cord:
1
Power Cord—Route cord
into terminal box
Route cord so that it does not touch dishwasher motor
to lower part of dishwasher tub. Pull cord through strain
relief in terminal bow. Take notice when installing or
removing the dishwasher in order to reduce the chance
of damaging the power supply cord.
Select UL listed or CSA approved twist-on wire connectors
(included with power supply cord kit) rated to connect
your household wiring to 16-gauge dishwasher wiring.
12
WARNING
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector
in terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in
death, fire, or electrical shock.
2
Power Supply Cord—
Connect ground wire
Remove the green grounding screw and place through
the ring terminal of the green ground wire. Reattach and
tighten the green screw.
3
Power Cord—Connect
remaining wires
NOTE: Twist on wire connector. Gently tug on wires to
be sure both are secured.
Connect wires black to black and white to white, using
UL listed or CSA approved twist-on wire connectors
(included with power supply cord kit).
Ground
Ground
wire
wire
Washer
Ground
connector
