Install Custom Panel – Option 1
(Models KUDS40FVPA, KUDS50FVPA, KUDE60FVPA,
and KUDE70FVPA)
NOTE: The handle for the custom panel is not included.
IMPORTANT: If the handle is attached from the back of
the custom panel, the screw holes should be countersunk
for the screws heads to be flush with the panel. If the
handle is attached to the front of the custom panel, the
screw lengths cannot exceed the panel thickness. For
more information on KitchenAid custom handle selection,
refer to the KitchenAid Catalog, visit
www.kitchenaid.com, or call 1-800-422-1230.
NOTE: A customer-supplied full front panel must weigh
no more than 16 lbs (7.3 kg) and must be made to
specific dimensions. It is recommended that a
cabinetmaker cut the custom panel because of the
precise dimensions needed.
NOTE: All mounting hardware supplied is for a 3/4"
(19.1 mm) thick wood panel. If a thinner wood panel, or
materials other than wood are used, it is the consumer's
responsibility to obtain the proper length screws and
adjust the pilot holes accordingly.
IMPORTANT: Use a moisture resistant sealer on both
sides and all edges of the panel to avoid damage from
humidity.

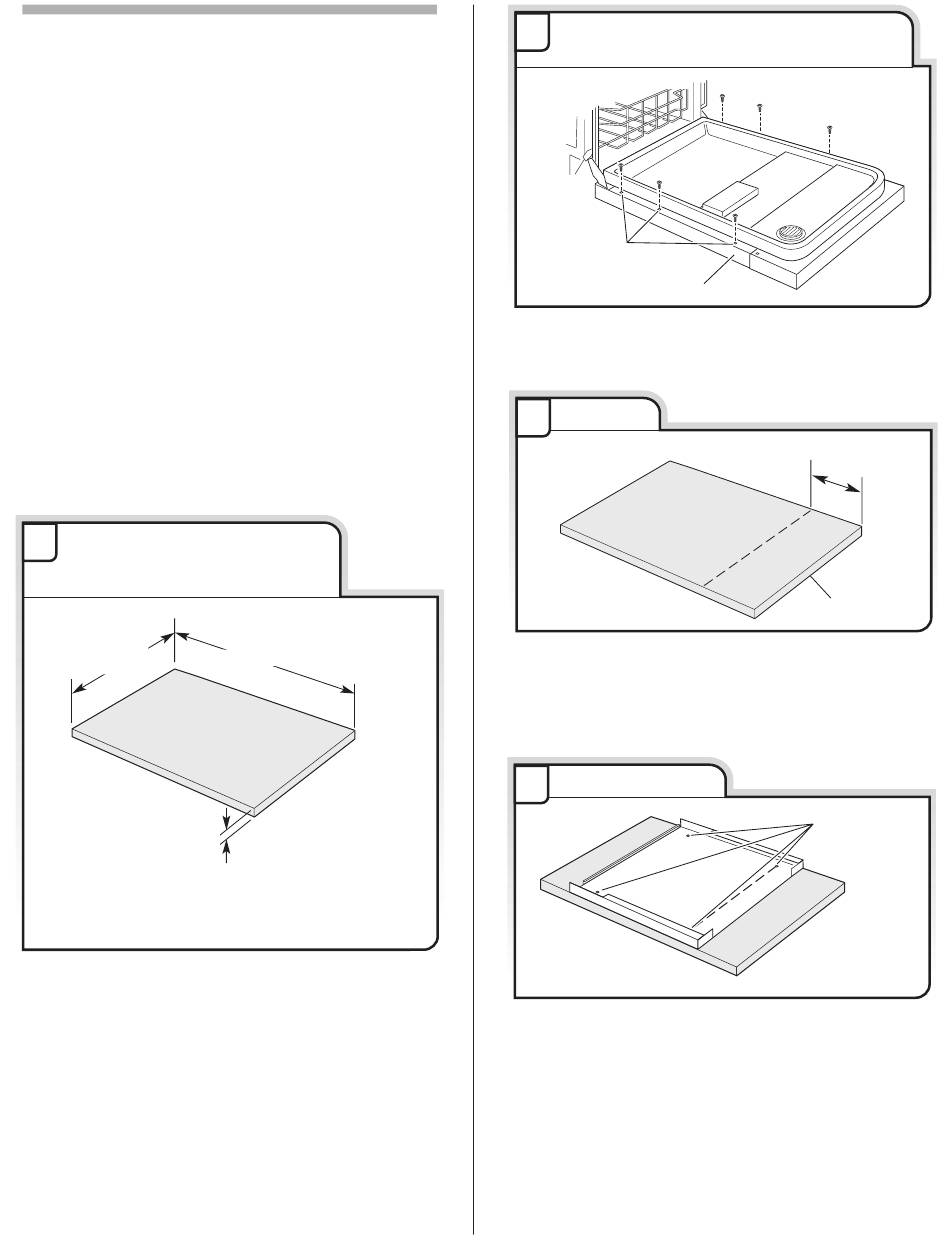

Custom panel installation -
1
Dishwashers with control
panel on the top
23 1/2"
(59.7 cm)
*
This dimension is for 4" (10.2 cm) toe kick. If the
installation needs a higher toe kick, adjust the height
of the wood panel accordingly. Not recommended for
toe kicks greater than 6" (15.2 cm).
With a TORX ® screwdriver, remove three screws from both
sides, as shown; hold the outer panel up while removing
the screws. Save screws for reinstallation.
*30 3/16" (76.7 cm)
3/4" (19.1 mm)
2 Dishwashers with control panel on
top custom panel dimensions
3 screws
per side
outer panel
Gently set outer panel aside. Lay the customer-supplied
custom panel face down on a covered, non-scratching
surface.
3
Mark line
Back
Measure 9 29/32" (25.2 cm) from top edge and mark a line
on the back of customer-supplied custom panel. Position the
outer panel on the back of the customer-supplied custom
panel as shown, so that the top holes in the outer panel are
on the line, and both panels are centered side to side.
4
Mark pilot holes
Mark all four hole locations; remove outer panel. Drill 3/32"
pilot holes 1/2" (13 mm) deep in customer-supplied custom
panel. Place the outer panel on the back of the customer-
supplied custom panel; align holes.
9 29/32"
(25.2 cm)
Top edge
Mark pilot
holes
