External probe (optional)
Connect the probe to its respective terminals. The maximum permissible length of the boiler – external probe connection
electric cable is 50 m. A common 2-core cable can be used. The external probe should preferably be installed on the
North, North-West wall or on the wall with most of the main living room. The probe must never be exposed to the sun
in the early morning, and in general, as far as possible, it must not receive direct solar radiation; if necessary, it must
be protected. In any case, the probe must never be mounted near windows, doors, ventilation openings, flues or heat
sources that could affect the reading.
Accessing the electrical terminal block
The electrical terminal block can be accessed after removing the front panel. Make the electrical connections as shown
in the wiring diagram at fig. 89 and fig. 90.
Maximum applicable loads:
B
• Heating circulating pump: 230Vac 0.8A max,
• 3-way valve: 230 Vac, 0.8 A max,
nuous
• Alarm: 230 Vac, 0.8 A max,
176

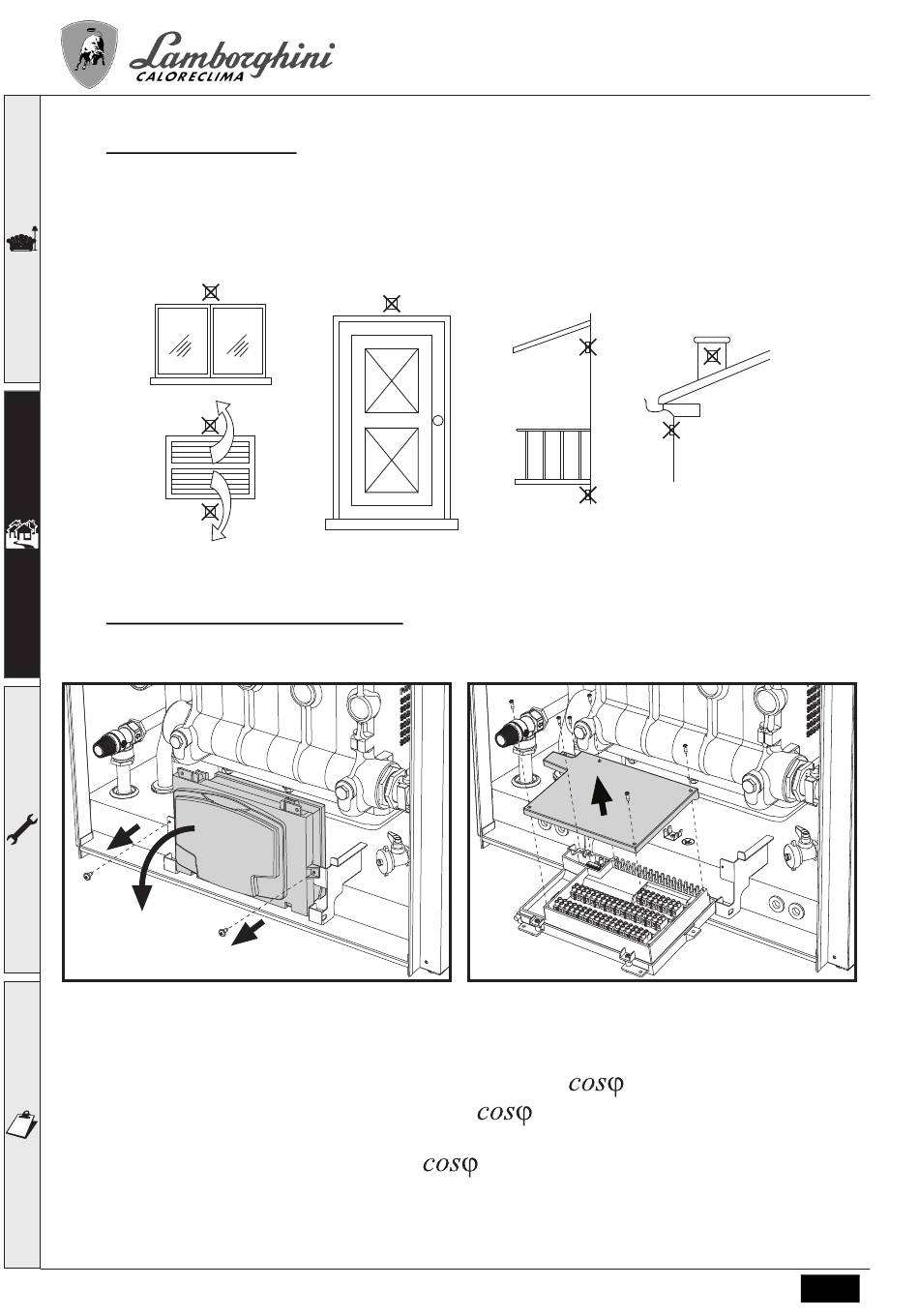

fig. 51- Positioning of external probe not recommended
fig. 52- Electrical terminal block
cod. 3541Z071 - Rev 00 - 06/2022
= 0.6
= 0.6 for max 1 minute, 0.4 A conti-
= 0.6
