TORO W
- Parameters
Each system requires a different parameterization. Follow the access procedure given below.
"Configuration - Parameters Menu"
Check/Change parameter b02 of the "Transparent Parameters Menu" to 8.
Check/Change parameter b08 of the "Transparent Parameters Menu" to 1.
Check/Change parameter b04, b05 and b06 of the "Transparent Parameter Menu" according to the values given in the
table *** 'Configuration - Parameters Menu' on page 190 ***.
- Optional features

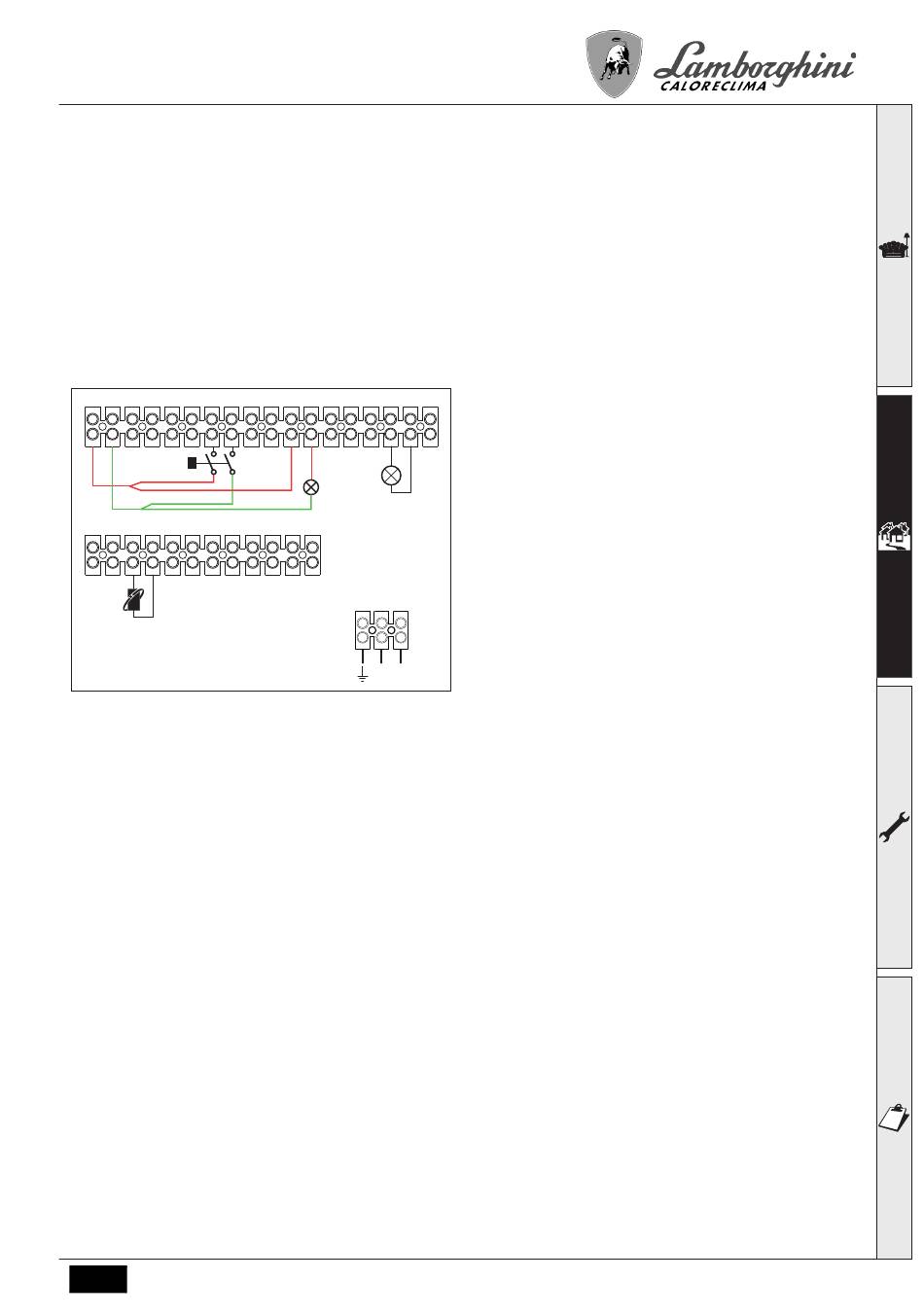

In addition to the electrical connections of the previous figure (necessary for this system configuration) there are options
that do not require settings.
1
2
3
4
5
6
7
8
L N
302
19 20 21 22 23 24 25 26 27 28 29 30
139
fig. 44
EN
9 10 11 12 13 14 15 16 17 18
301
357
N
L
cod. 3541Z071 - Rev 00 - 06/2022
Legend
139 Remote control: it can be installed instead of 72
to manage the request of the 1st zone (direct)
301 Fault indication (voltage-free contact output): the
example shows the connection of a 230Vac
lamp
302 Remote reset input (230Vac): the example
shows the connection of a double-pole switch at
230Vac, allowing the resetting of a block type
fault
357 Fault indication (230Vac): the example shows
the connection of a 230Vac lamp
