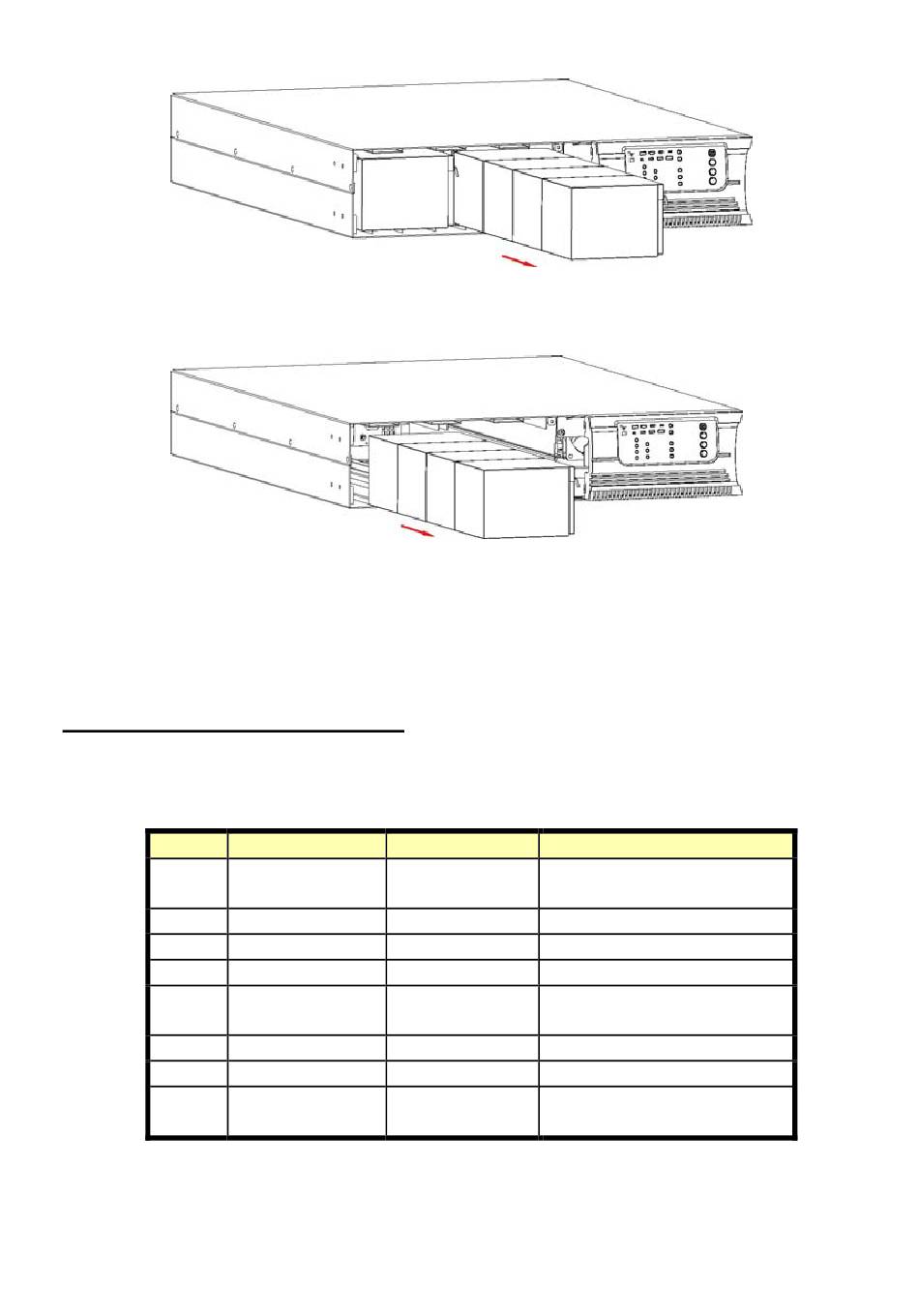

5. Pull the battery out (on the right side) onto a flat surface.
6. Pull the left side of battery out onto a flat surface.
7. Slide the new batteries into the battery case.
8. Reconnect the battery cable and screw up the battery bracket.
9. Put the front panel back on the battery case.
1 0 . C O M M U N I C A T I O N P O R T
1. RS232 + Dry contact (750/1000/1500/2000/3000VA):
PIN #
1
2
3
4
5
6
7
8
