I-6 EQUIPMENT LOCATION
Your boat will be delivered with its console and bolster not assembled on the hull.
Please follow the steps below to position, waterproof and maintain in position the elements on the
deck.
We recommend that you install all the cables and engine wiring before following the assembly steps

I-6-1- OPEN 3.1 / OPEN 3.4

I-6-1-1- Console
Ref.
1
2
3
I-6-1-2- Bolster
Ref.
1
2
3
613770 A

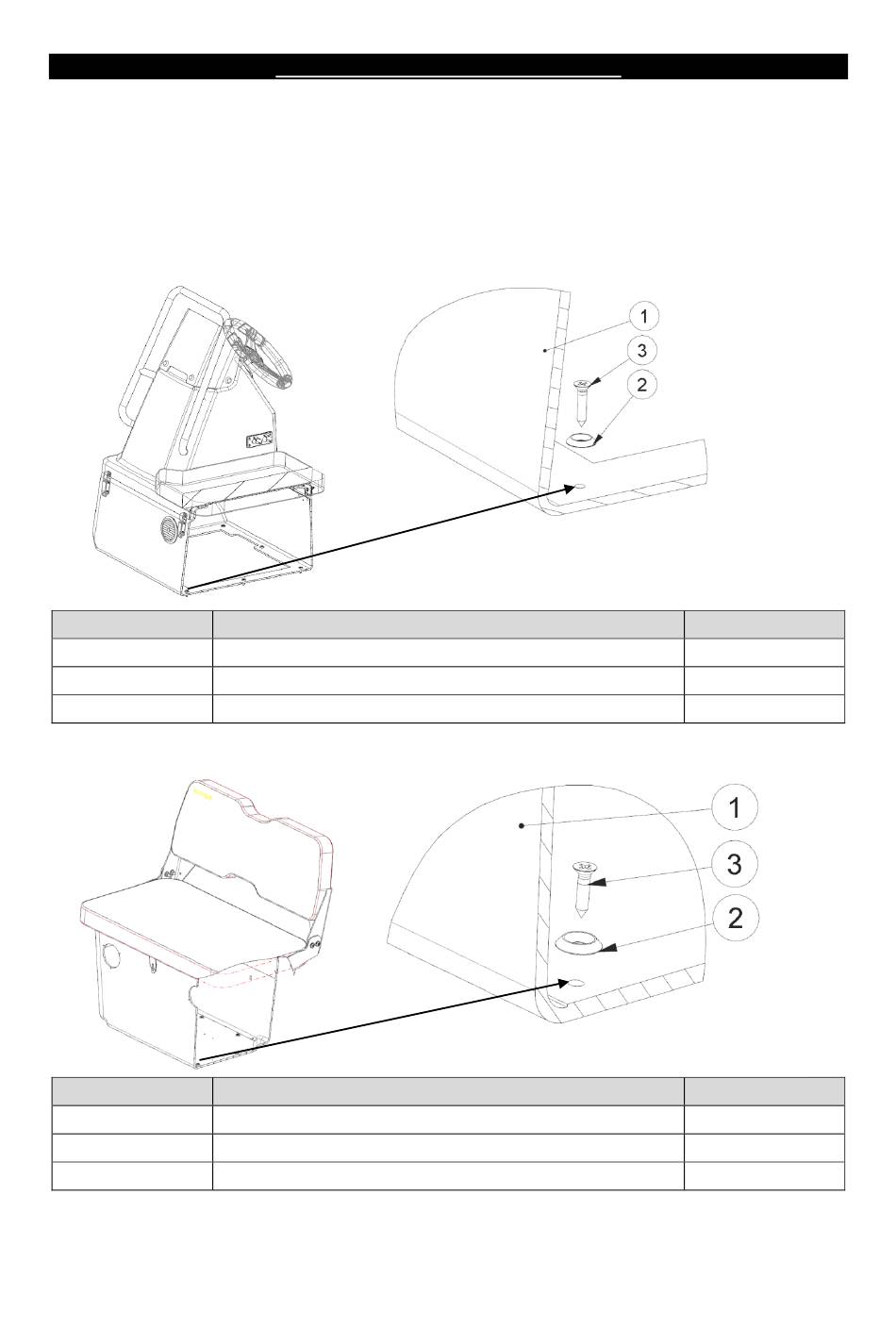

DESCRIPTION – INVENTORY and location
3.1 / 3.4 CONSOLE ASSEMBLY
M5 BOWL WASHER
SCREW TOL FZ 4.8X25
3.1 / 3.4 BOLSTER ASSEMBLY
M5 BOWL WASHER
SCREW TOL FZ 4.8X32
Description
Description
Page 16 / 65
Quantity
1
8
8
Quantity
1
6
6
Edition 2
