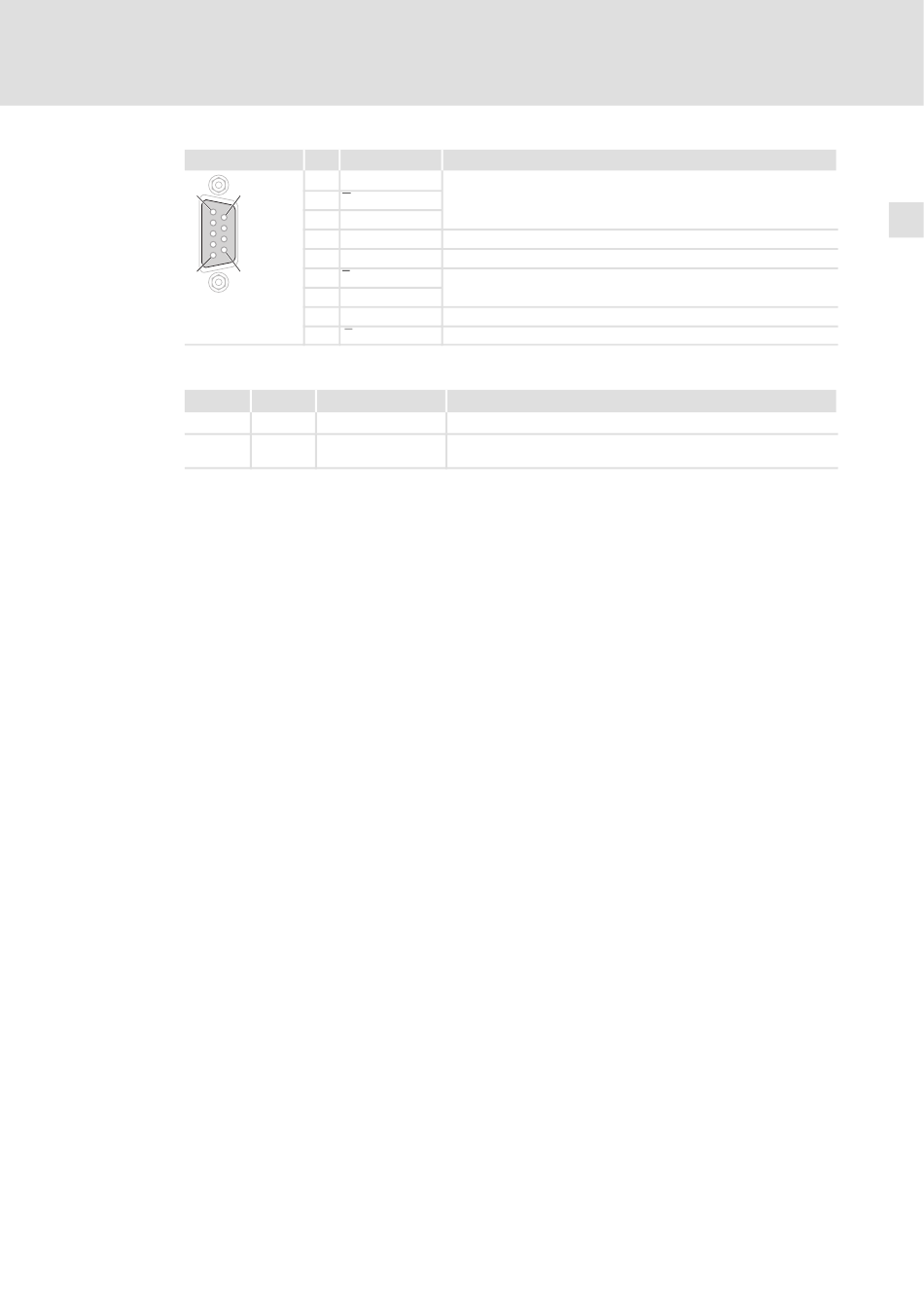

X10
1 6
5 9
SUBD09010
Displays
Pos. Colour
MS Green
DE Red
EDK94SH104 DE/EN/FR/ES/IT 4.1
Pin Designation Explanation
1 B
2 A TTL output signal from encoder or encoder simulation
3 A
4 +5 V V ±6 %
CC
5 GND -
6 Z
TTL output signal from encoder or encoder simulation
7 Z
8 Enable Digital output signal
9 B TTL output signal from encoder or encoder simulation
Condition Description
ON The module is supplied with voltage.
The module is not accepted by the standard device (see notes
ON
given in the documentation for the standard device).

Wiring the device modules
Function modules
