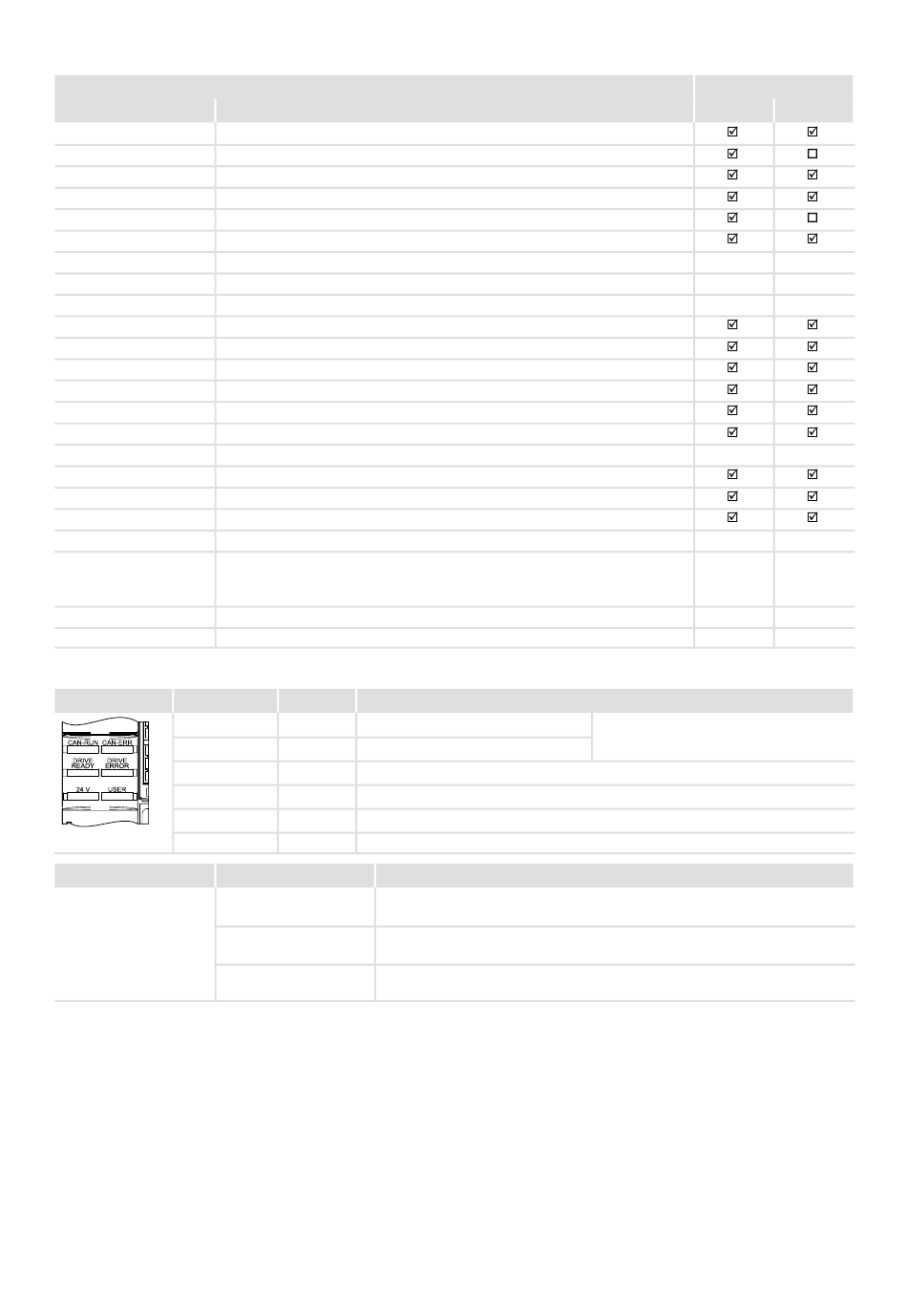

Overview
Standard device 
Pos. Description
MXI1 Module slot for extension 1, e.g. communication
MXI2 Module slot for extension 2, e.g. communication
MMI Module slot for memory modules
MSI Module slot for safety modules
X1 System bus (CAN), under the cover
X2 24-V supply and state bus
X3 Analog inputs and analog outputs
X4 Digital outputs
X5 Digital inputs
X6 Diagnostics
X7 Resolver
X8 Encoder
Lower cap

Nameplate, retractable

Upper cap

EMC clamp

X100 Mains / DC-bus voltage
X105 Motor / external brake resistor
X106 Motor temperature monitoring
X107 Control of motor holding brake
EMC wire clamp
 
Device size 6:
Device size 7:
Internal thread for M6 eye bolt (not included in the scope of supply)

Strain relief and lifting aid, removable

The LED display enables fast indication of several operating states.
LED Labelling
CAN-RUN
CAN-ERR
DRIVE READY
DRIVE ERROR
24 V
USER
SSP94LED01
Pos. Symbol




© 2007 Lenze Drive Systems GmbH, Hans-Lenze-Straße 1, D-31855 Aerzen
No part of this documentation may be reproduced or made accessible to third parties without written consent by Lenze Drive
Systems GmbH.
All information given in this documentation has been selected carefully and complies with the hardware and software described.
Nevertheless, discrepancies cannot be ruled out. We do not take any responsibility or liability for any damage that may occur.
Necessary corrections will be included in subsequent editions.
46
∅ 10 ... 20 mm and ∅ 15 ... 28 mm
∅ 15 ... 28 mm and ∅ 20 ... 37 mm
Colour Description
green CAN bus o.k.
red CAN bus error
green Standard device is ready for operation
red Error in the standard device or due to the application
green 24-V supply voltage o.k.
yellow Message parameterised by the application
Description
Long discharge time: All power terminals carry hazardous voltages for at
least 3 minutes after mains disconnection!
High discharge current: Fixed installation and PE connection to EN 61800-5-1
required!
Electrostatic sensitive devices: Before working on the device, personnel must
ensure that they are free of electrostatic charge!

Design
HighLine
2/2
4
8
3
Optional
2
4
2
Inoperable when "StateLine" design is
used
EDK94SH104 DE/EN/FR/ES/IT 4.1
StateLine
1/0
1
4
3
Optional
2
4
2
