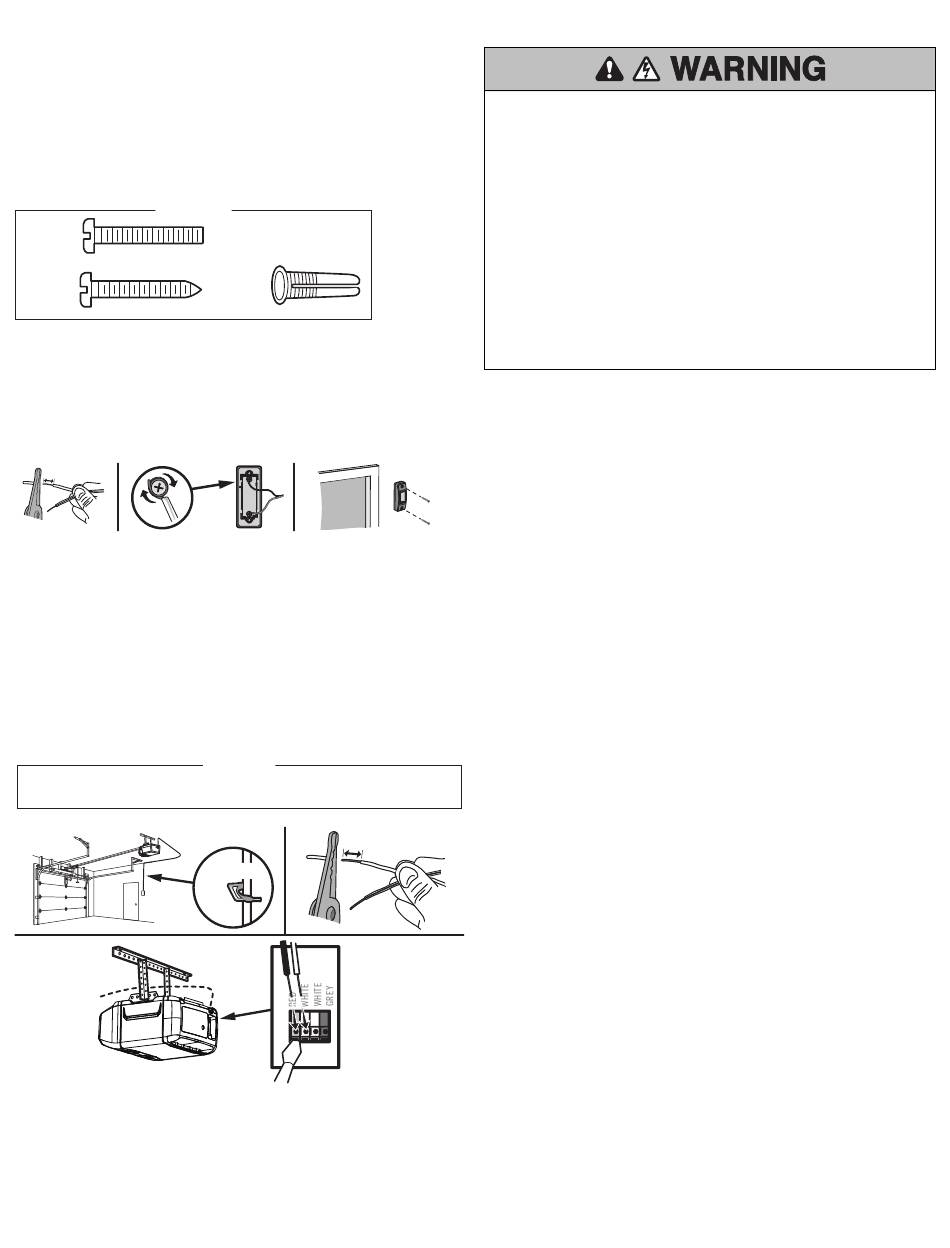

INSTALLATION STEP 11

INSTALL THE DOOR CONTROL - MODEL CMXEOCG232

Install door control within sight of garage door, out of reach of small children at a
minimum height of 5 feet (1.5 m) above floors, landings, steps or any other adjacent
walking surface, and away from ALL moving parts of door. For gang box installations
it is not necessary to drill holes or install the drywall anchors. Use the existing holes
in the gang box.
NOTE: Your product may look different than the illustrations.
HARDWARE
Screw
6-32x1" (2)
Screw
6ABx1" (2)
PUSH BUTTON DOOR CONTROL
1. Strip 1/4" (6 mm) of insulation from one end of the wire and separate the
wires.
2. Connect one wire to each of the two screws on the back of the door control.
The wires can be connected to either screw.
3. Mount the door control with the hardware provided.
1 2
1/4" (6 mm)
WIRE THE DOOR CONTROL TO THE GARAGE DOOR OPENER
1. Run the white and red/white wire from the door control to the garage door
opener. Attach the wire to the wall and ceiling with the staple (not
applicable for gang box or pre-wired installations). Do not pierce the wire
with the staple as this may cause a short or an open circuit.
2. Strip 7/16" (11 mm) of insulation from the end of the wire near the garage
door opener.
3. Connect the wire to the red and white terminals on the garage door opener. If
your garage is pre-wired make sure you use the same wires that are
connected to the door control. To insert or release wires from the terminal,
push in the tab with screwdriver tip.
Insulated Staple (Not Shown)
1
3
Drywall
Anchors (2)
3
HARDWARE
2
7/16" (11 mm)
Staple
To prevent possible SERIOUS INJURY or DEATH from electrocution:
• Be sure power is NOT connected BEFORE installing door control.
• Connect door control ONLY to 12 VOLT low voltage wires.
To prevent possible SERIOUS INJURY or DEATH from a closing garage door:
• Install door control within sight of garage door, out of reach of small children
at a minimum height of 5 feet (1.5 m) above floors, landings, steps or any
other adjacent walking surface, and away from ALL moving parts of door.
• NEVER permit children to operate or play with door control push buttons or
remote control transmitters.
• Activate door ONLY when it can be seen clearly, is properly adjusted, and
there are no obstructions to door travel.
• ALWAYS keep garage door in sight until completely closed. NEVER permit
anyone to cross path of closing garage door.
23
