Connecting Onkyo u Components

Step 1:
Make sure that each Onkyo component is connected
with an analog audio cable (connection
16).
examples) (➔
Step 2:

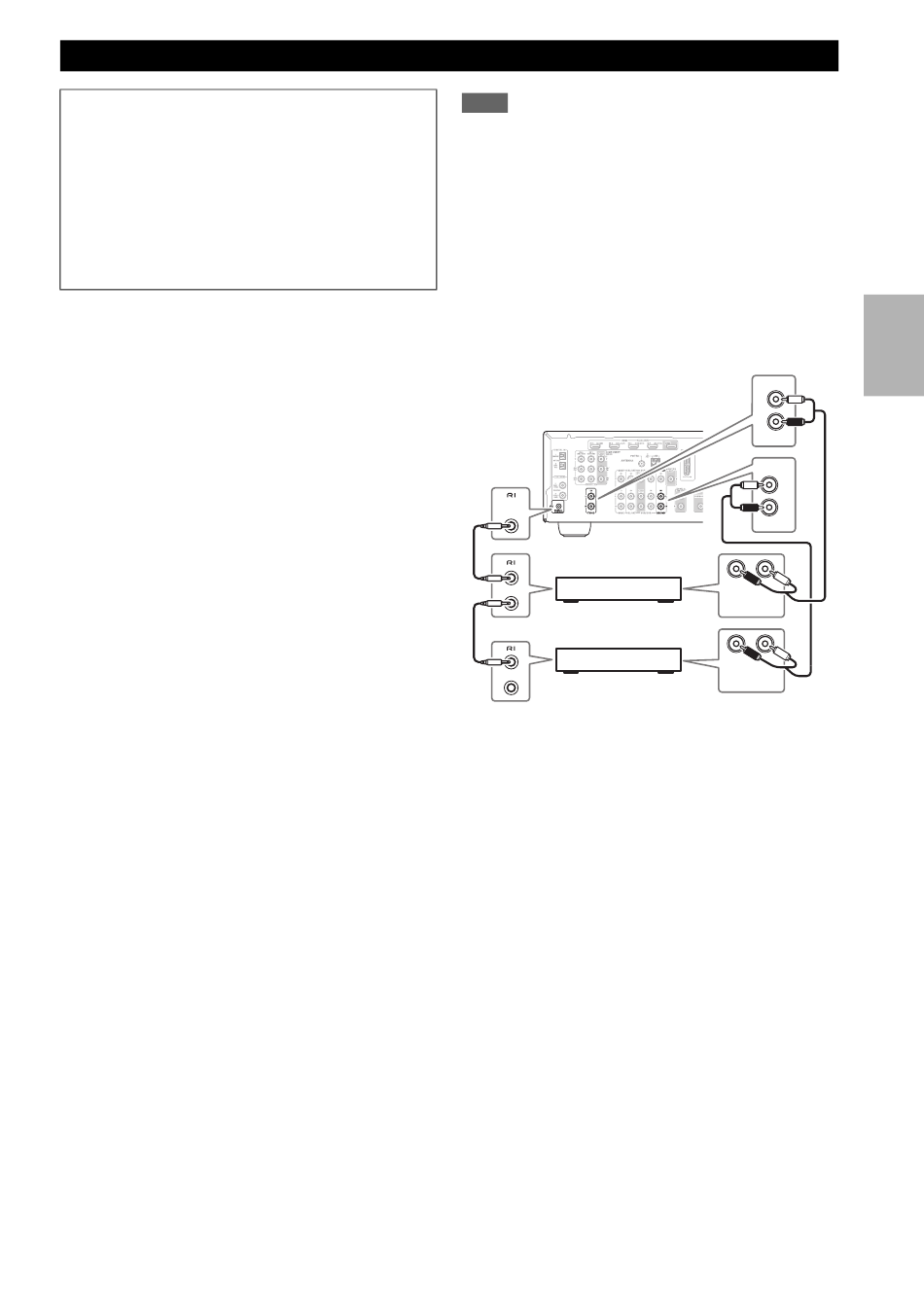

Make the u connection (see illustration below).
Step 3:
If you're using an RI Dock, or cassette tape deck,
change the Input Display (➔
With u (Remote Interactive), you can use the following
special functions:
■
System On/Auto Power On
When you start playback on a component connected via
u while the AV receiver is on Standby, the AV
receiver will automatically turn on and select that com-
ponent as the input source.
■
Direct Change
When playback is started on a component connected via
u, the AV receiver automatically selects that compo-
nent as the input source.
■
Remote Control
You can use the AV receiver's remote controller to con-
trol your other u-capable Onkyo components, point-
ing the remote controller at the AV receiver's remote
control sensor instead of the component. You must enter
the appropriate remote control code first
in the hookup
D
23).
(➔ 61).
Note
• Use only u cables for u connections. u cables are supplied
with Onkyo players (DVD, CD, etc.).
• Some components have two u jacks. You can connect either
one to the AV receiver. The other jack is for connecting addi-
tional u-capable components.
• Connect only Onkyo components to u jacks. Connecting other
manufacturer's components may cause a malfunction.
• Some components may not support all u functions. Refer to
the manuals supplied with your other Onkyo components.
• While Zone 2 is on, the System On/Auto Power On and Direct
Change u functions do not work.
• Do not use u connections if you use HDMI Control (RIHD)
49).
(➔
REMOTE
CONTROL
e.g., CD player
e.g., DVD player
IN
L
R
TV/CD
IN
L
R
BD/DVD
R L
ANALOG
AUDIO OUT
R L
ANALOG
AUDIO OUT
En
17
