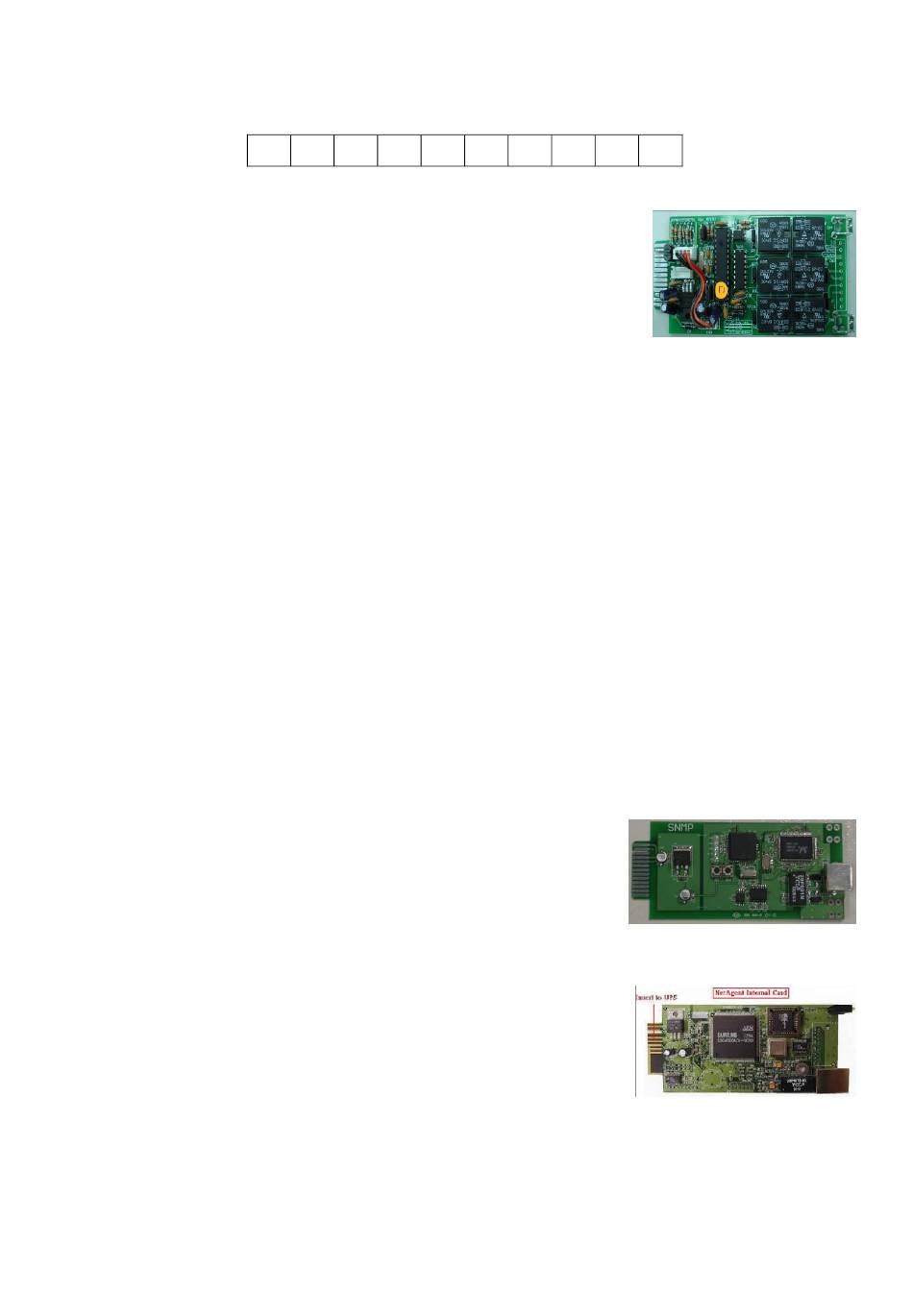

DCE (Dry Contact) card

The pin assignments of 10-Pin Terminal：
1  UPS on Bypass mode (Bypass)
2  Utility Normal (Normal close contact)
3  Utility Normal (Normal open contact)
4  Inverter On
5  Battery Low
6  Battery Bad or abnormal
7  UPS Alarm
8  Common
9  Shutdown UPS positive (+) signal
10 Shutdown UPS negative (-) signal
 The shutdown function will be activated, after a +6~+25Vdc is put between pin 9
and pin 10 for 5 seconds.
 The capacity of each relay contact is 40Vdc/25mA.
 Installation Position: Optional Slot.
 Flexible signal output for N.C. (Normal Close) or N.O.(Normal Open) contact by
shorting pin1-2 or pin2-3 from JP1-5.
 The shutdown function will be enabled in 1 minute after blackout occurs if the
pin1-2 of both CN1 and CN6 are shorted by cap. Or, the shutdown function can
only be enabled by pin9-10 of CN3 if the pin2-3 of both CN1 and CN6 are shorted
by cap
8.4.

SNMP Cards

8.4.1.
For installation, please refer to the user's manual attached
with the card.
Installation Position: Optional Slot
8.4.2.
For installation, please refer to the user's manual attached
with the card.
Installation Position : Optional Slot
