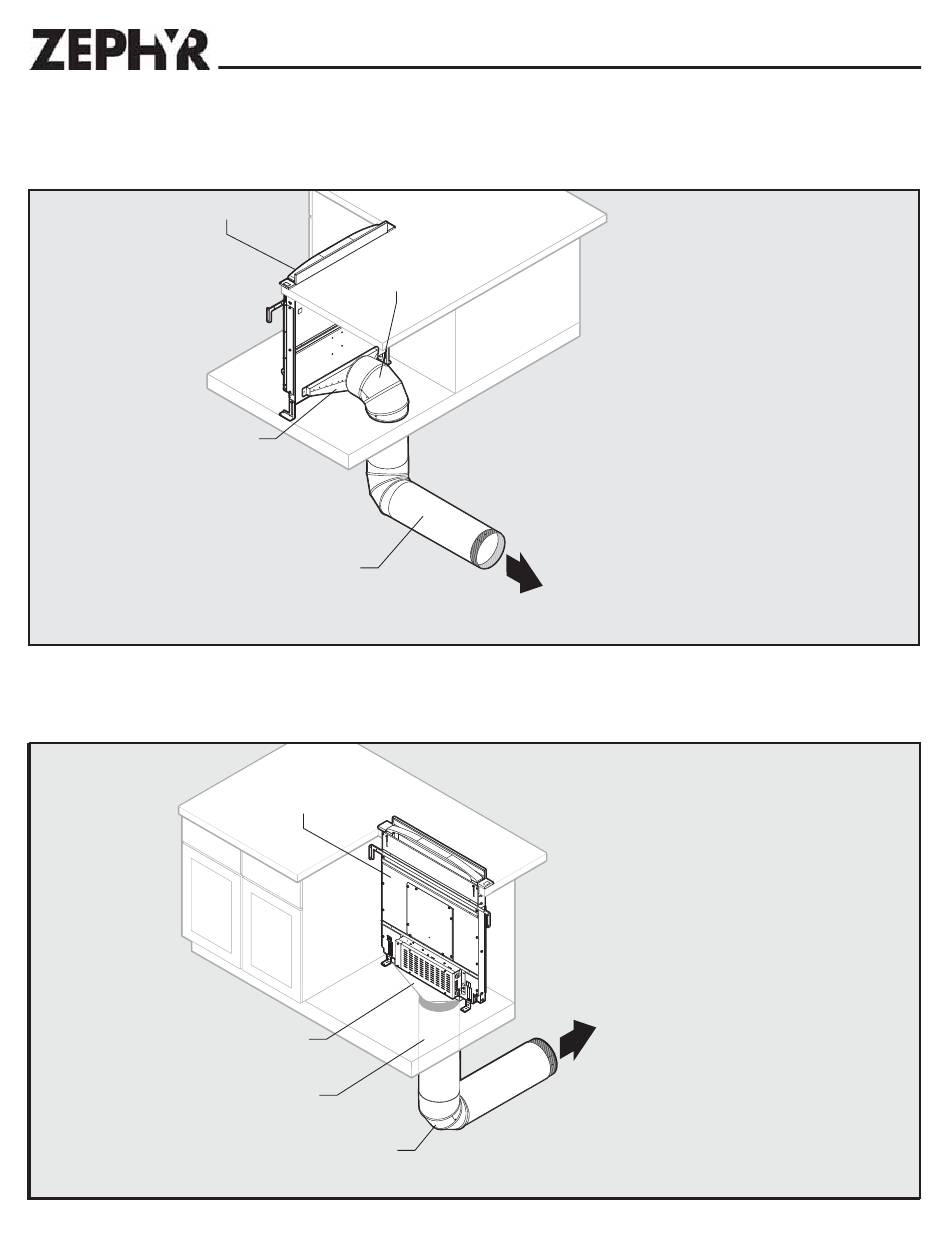

Ducting Configurations
Rear Exhaust with Remote Blower
Downdraft
1-7/8" to 10"
Round Transition
Note: External or in-line blowers require 10" ducting.
Below Exhaust with Remote Blower
Note: : DBI-600A blower requires 8" ducting. External or in-line blowers require 10" ducting.
(continued)
10" Round Elbow
10"Straight Duct
Downdraft
1-7/8" to 8" or
10" Round Transition
8" or 10"
Straight Duct
8" or 10" Round Elbow
* To one of the following:
Model CBE-1000 External Blower
*
• Model PBN-1000A In-line Blower
*
* To one of the following:
• Model DBI-600A Blower
• Model CBE-1000 External Blower
• Model PBN-1000A In-Line Blower
9
Planning
