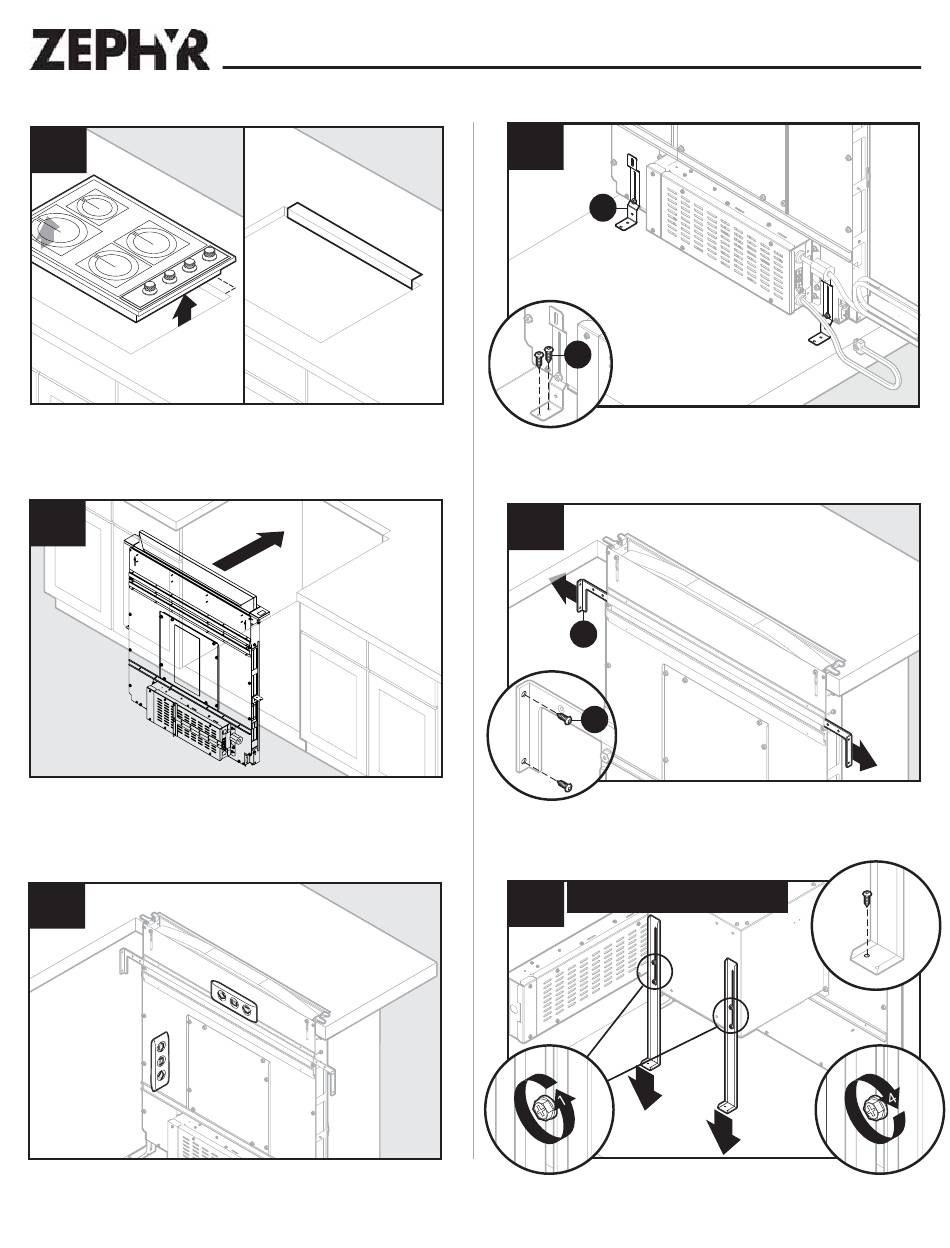

Install Housing Into Cabinet - Zephyr DLI-E30ASX Mode D'emploi

Cutting Counter Top Opening
9
Remove cook top/appliance and cut opening.

Install Housing into Cabinet

10
Set housing into cabinet.
11
Level housing.
Note: Steps 11-15, right cabinet not shown for clarity.
(continued)
15
Install Housing into Cabinet
12
1
E
AA
2
Attach support legs (E) to bottom of cabinet with two screws (AA) per
leg. Tighten hex screws. Note: If cabinet bottom is removed, use blocks
as spacers between floor and support legs.
13
1
A
BB
2
Extend upper support brackets (A) and attached to sides of cabinet with
two screws (BB) per bracket.
DBI-600A Blower Only
14
1
2
Loosen four screws attaching blower support legs to DBI-600A blower.
Extend legs and secure to bottom of cabinet with one screw through
each bracket. Re-tighten four blower screws.
Installation
(continued)
1
1
3
2
