Internal Blower (DBI-600A) - Remote Mounted - Rear Outlet
MODEL AK00072
1-7/8-inch x 19-inch
Rectangular Transition
(sold separately)
8-inch Round
Wall Cap*

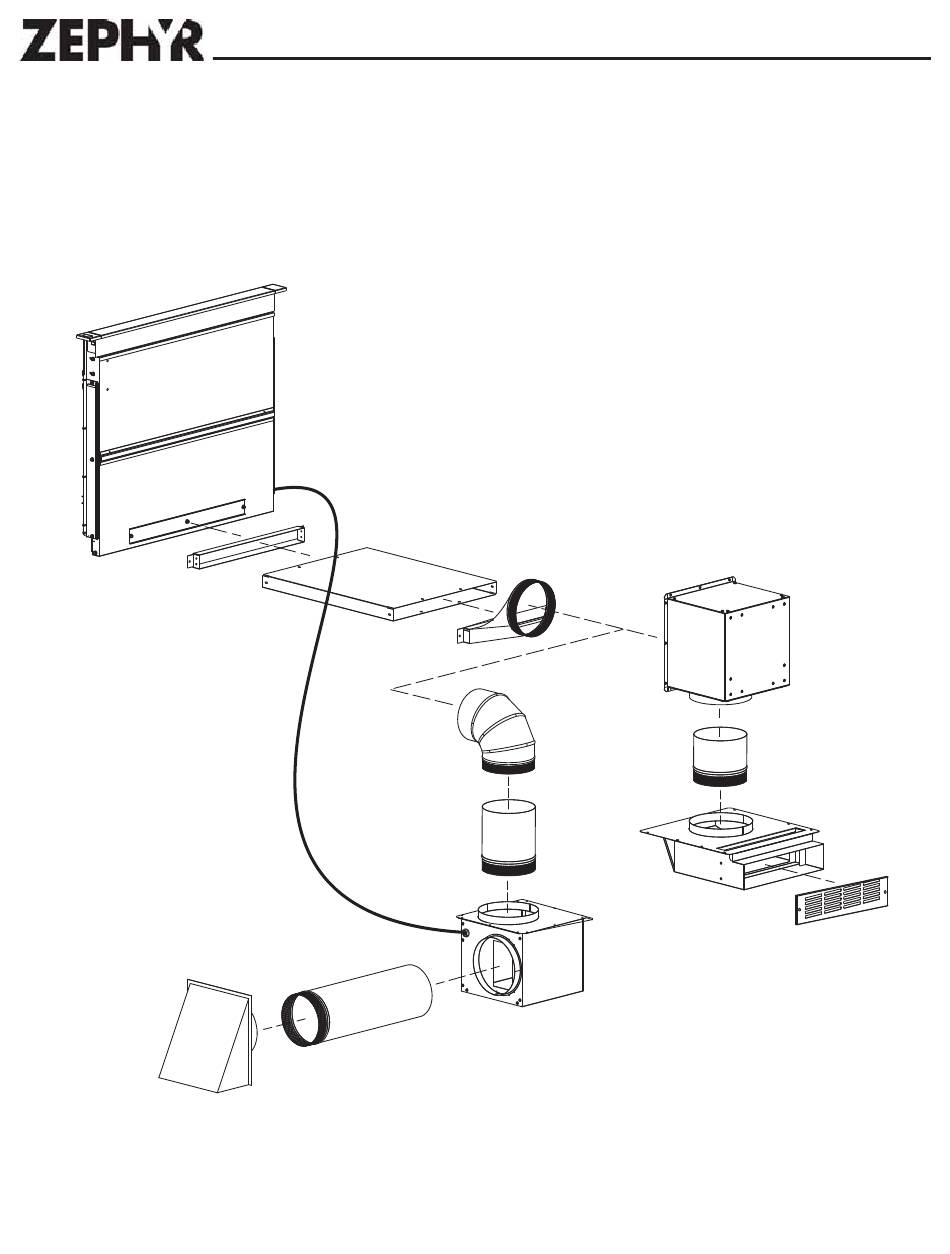

Blower duct routing configuration D
MODEL AK00080
1-7/8-inch x 19-inch
Rectangular Duct
(sold separately)
8-inch Round
Elbow*
8-inch Round
Straight Duct*
8-inch Round
Straight Duct*
MODEL AK00070
1-7/8-inch to 8-inch
Round Transition
(sold separately)
MODEL DBI-600A
Internal Blower
(sold separately)
(Mounted in
remote location)
26
MODEL DBI-600A
Internal Blower
(sold separately)
(Mounted in
adjacent cabinet)
8-inch Round
Straight Duct*
MODEL ZRC-00LF
Non-Duct Recirculating Kit
with kickspace grille
(sold separately)
(Only required for non-duct
applications. "Front" discharge
shown. Kit can also be rotated
for "Left" , "Right" or "Rear" discharge.)
* As required - sourced locally
