Installation instructions, for professionals only
5.

Electrical connection

Observe the following points when connecting the power to the infrared controller:
● Work on the infrared controller may only be performed when the power has
been disconnected.
All components on the Infrabox Basic power supply unit are connected as shown
in the figures below:

5.1. Connection area for sensor/control unit

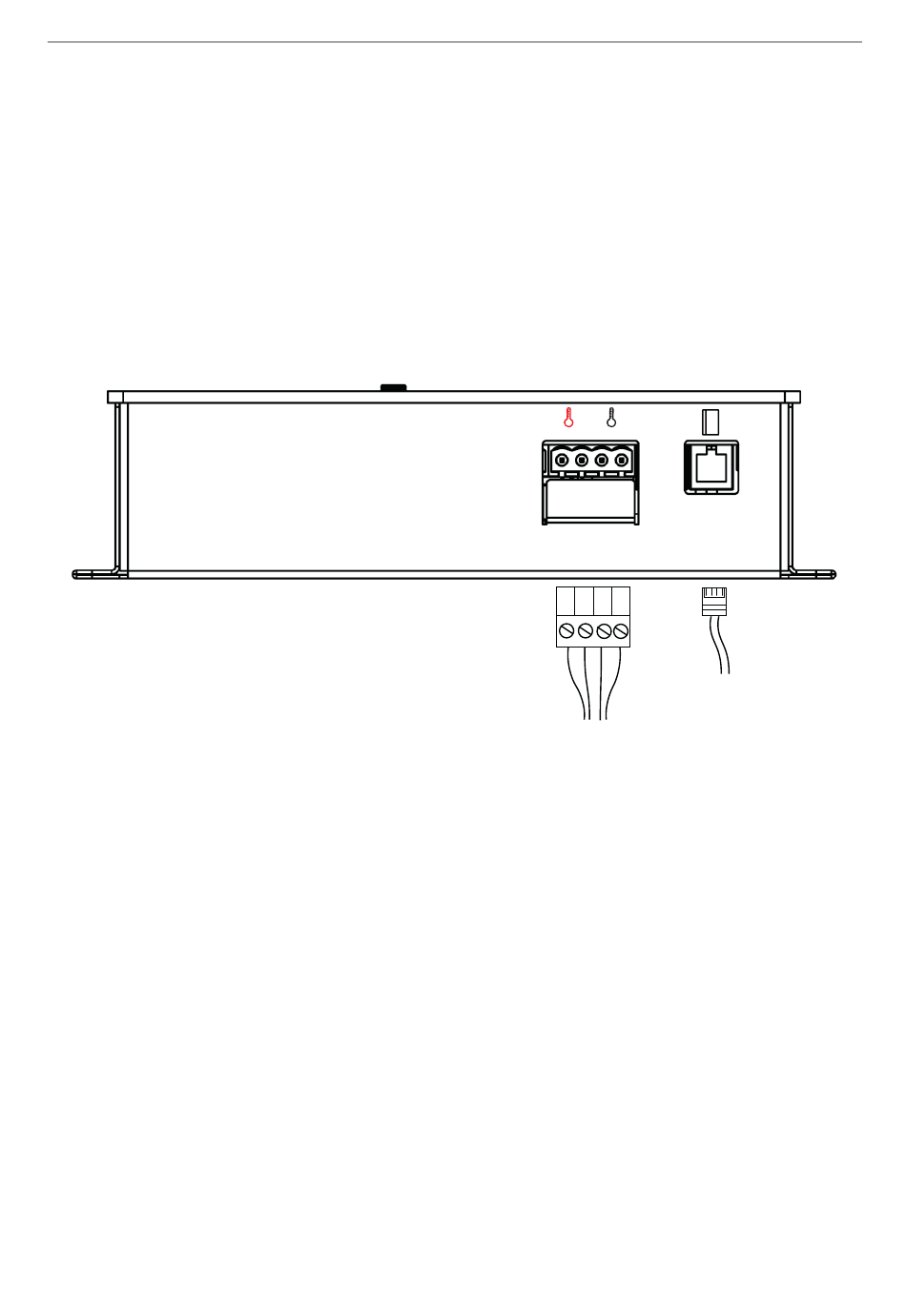

Fig. 6: Connection area for sensor/control unit
Foiltemperature sensor (FF)
1
Safety temperature limiter (STB)
Infraboxcontrol unit
2
STB FF
1 2
p. 14/32
