Installation instructions, for professionals only

4.3. Installing the foil temperature sensor

The foil temperature sensor is only required for infrared plate heating sys-
tems. Observe the details of the plate heating system manufacturer here.
The foil temperature sensor is installed directly on the infrared heating plate and
fixed with a cable strain relief (seeFig. 5: Installing the foil temperature sensor
on page 13)
Install the sensor head 1 of the foil temperature sensor directly between the
insulation and heating foil 4.
1. Secure the foil temperature sensor with the strain relief 2 outside the
foil area.
2. Lay the 2-pin cable 3 in the cabin wall and secure with cable ties.
3. A foil temperature sensor must be activated to use it (6.4. Foil sensor on
page 21).

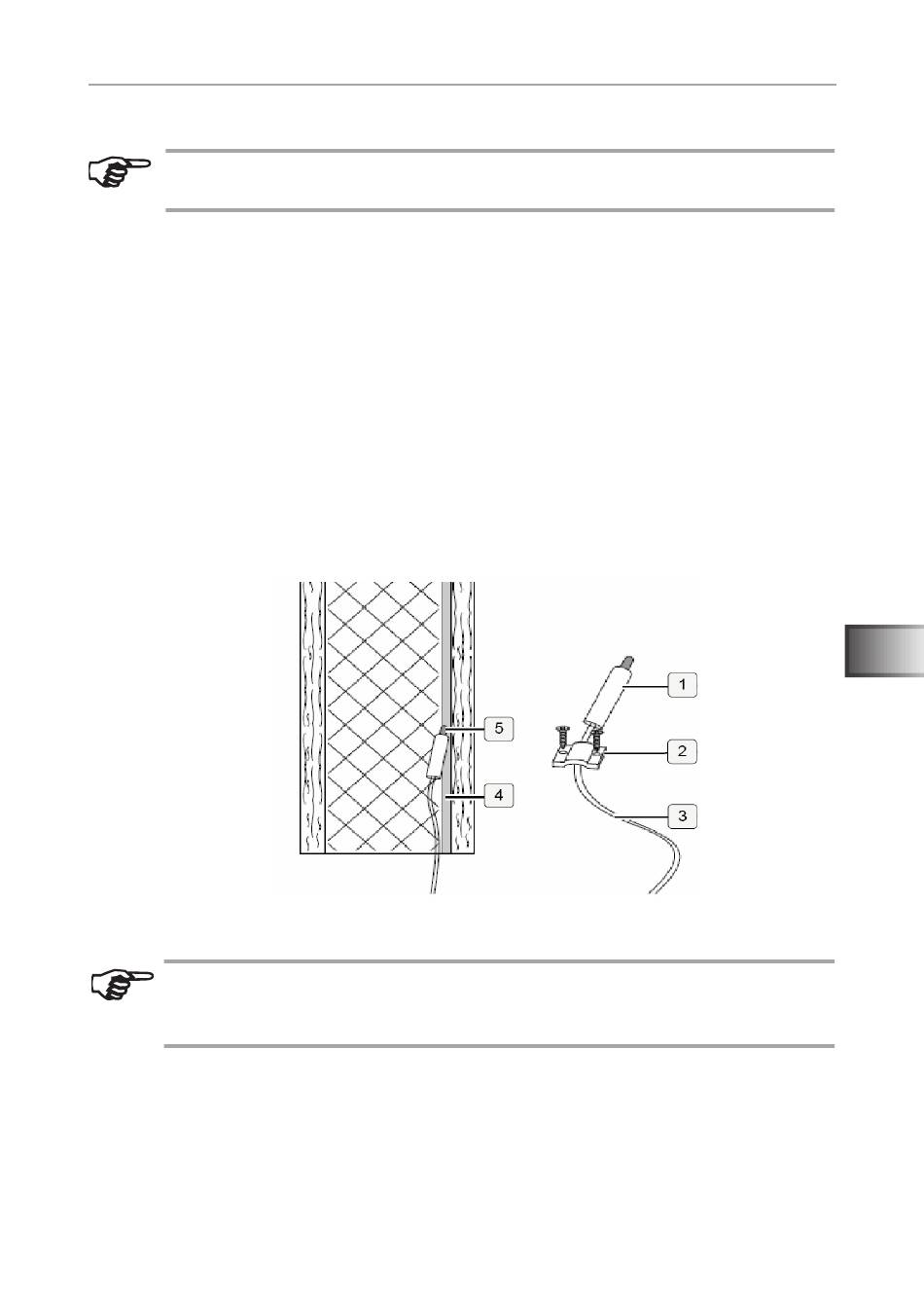

Fig. 5: Installing the foil temperature sensor
If the foil temperature sensor is not fitted directly on the infrared plate,
it will produce incorrect measured values. Install the foil temperature
sensor directly on the foil.
