3. Ceiling Fan Assembly
3.7
Align the Clevis Pin holes in the Downrod with the holes in
the Motor Coupler.
Install the Clevis Pin and secure with the Hairpin Clip
(Figure 7).
The Clevis Pin must go through the holes in the Motor
Coupler and Downrod. It is critical that the Clevis Pin in the
Motor Coupler is properly installed and securely tightened.
WARNING
!
It is critical that the clevis pin in the motor coupler is
properly and securely installed. Failure to verify that the
clevis pin is properly installed could result in the fan
falling.
3.8
While pulling up on the Downrod, securely tighten the two
Phillips Head Set Screws in the Motor Coupler (Figure 8).
NOTE: The Set Screws must be properly installed as
described above, or fan wobble could result.
WARNING
!
It is critical that the set screws in the motor coupler are
properly installed and securely tightened. Failure to verify
that the set screws are properly installed could result in
the fan falling.
(Continued)
DOWNROD
MOTOR
COUPLER
CLEVIS
PIN

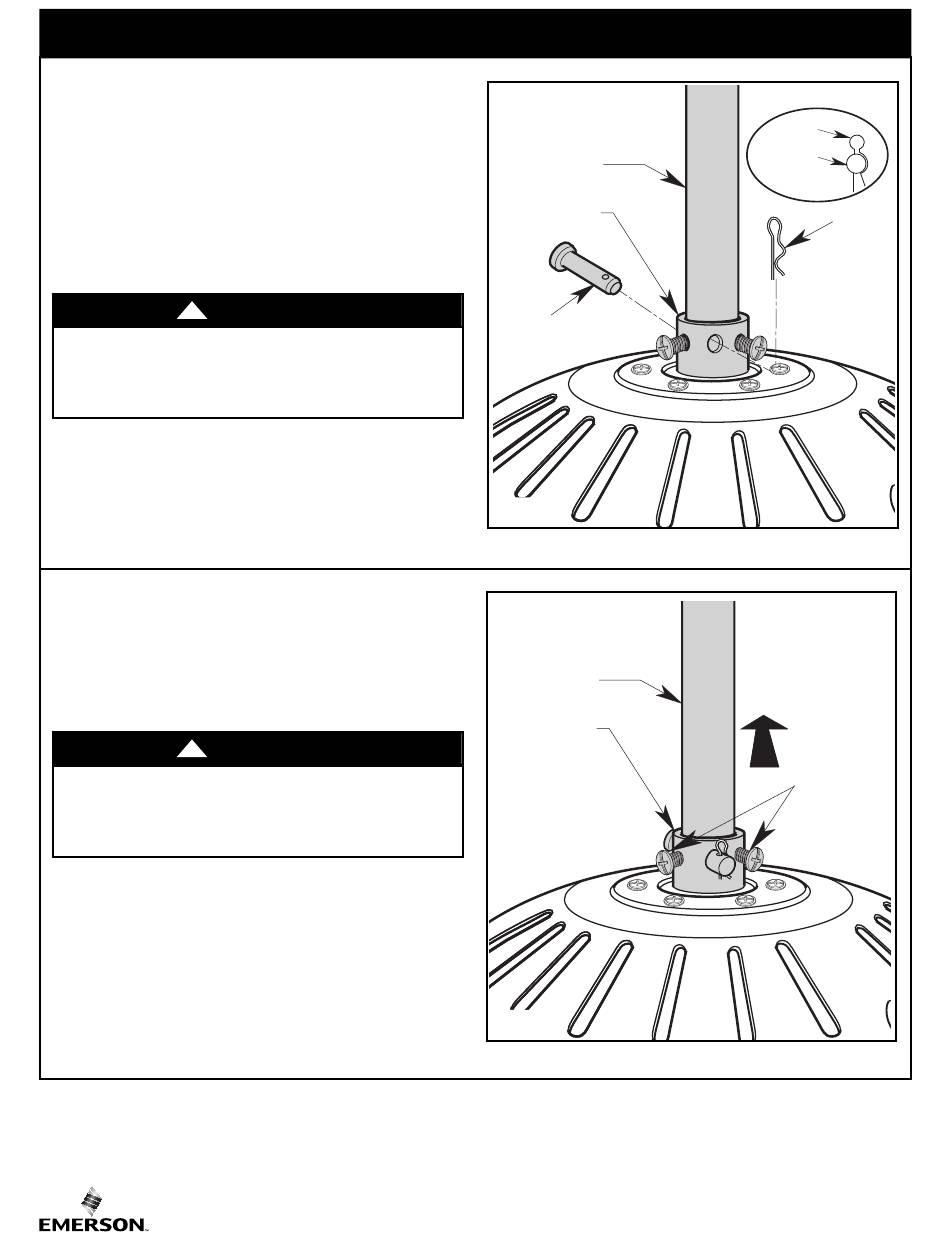

Figure 7
DOWNROD
MOTOR
COUPLER
Figure 8
8
HAIRPIN
CLIP
CLEVIS
PIN
HAIRPIN
CLIP
RETIGHTEN
SET SCREWS
U.L. Model No.: CF825
