5. How to Wire Your Ceiling Fan
5.2
Securely connect the Fan Motor White Wire to the Supply
White (neutral) Wire using the Wire Connector (supplied)
(Figure 17).
5.3
Securely connect the Fan Motor Black Wire and Fan
Motor Blue Wire to the Supply Black (hot) Wire using the
Wire Connector (supplied) (Figure 18).
5.4
After connections have been made, turn Wires upward
and carefully push Wires into the Outlet Box, with the
White and Green Wires on one side of the Outlet Box and
position the Blue and Black Wires on the other side of the
Outlet Box (Figure 19).
WARNING
!
Check to see that all connections are tight, including
ground, and that no bare wire is visible at the wire
connectors, except for the ground wire. Do not
operate fan until blades are in place. Noise and fan
damage could result.

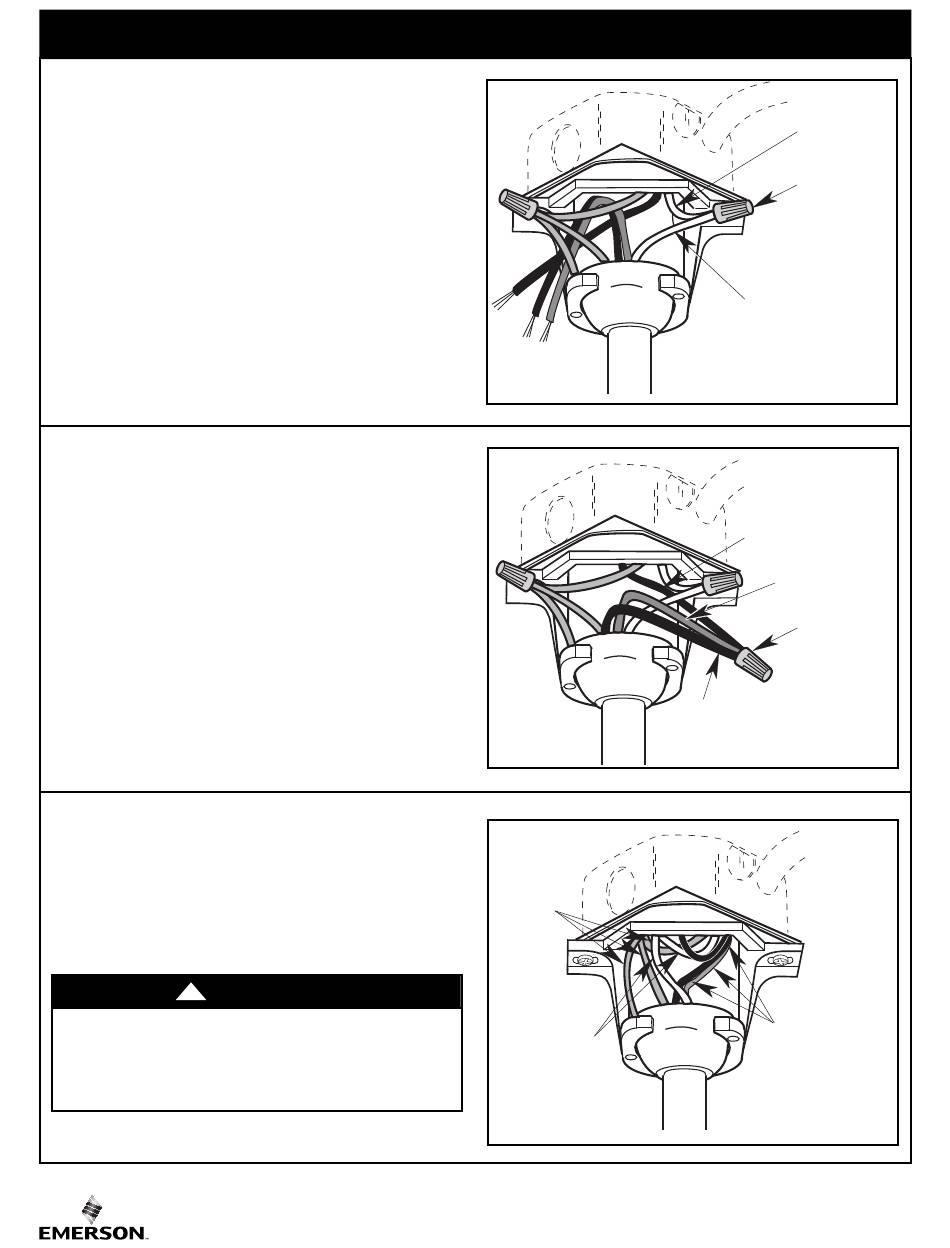

Figure 17
Figure 18
GREEN
WIRES
WHITE WIRES
Figure 19
14
(Continued)
SUPPLY WHITE
(NEUTRAL)
LISTED WIRE
CONNECTOR
FAN MOTOR
WHITE WIRE
SUPPLY BLACK
(HOT)
FAN MOTOR
BLUE WIRE
LISTED WIRE
CONNECTOR
FAN MOTOR
BLACK WIRE
BLUE WIRE &
BLACK WIRES
