Um 25 G - EWM UM 15 G EZA Manuel D'utilisation

9.3

UM 25 G

Référence de
Pos.
commande
1.02 394-000369-00000
1.02 394-001647-00000
1.03 394-000371-00000
1.04 394-000373-00000
2.01 394-000447-00000
2.01 394-000450-00000
2.01 394-000452-00000
2.01 394-000941-00000
2.01 394-000942-00000
2.01 394-001191-00000
2.01 394-001228-00000
2.01 394-001229-00000
2.01 394-003339-00000
2.01 394-005224-00000
2.01 394-005407-00000
2.01 394-014024-00000
2.01 394-016105-00000
2.01 394-016107-00000
2.01 394-016108-00000
2.01 394-016115-00000
2.01 394-016117-00000
2.01 394-016118-00000
5 394-000375-00000
5 394-001823-00000
5.01 394-003656-00000
099-600010-EW502
27.02.2018

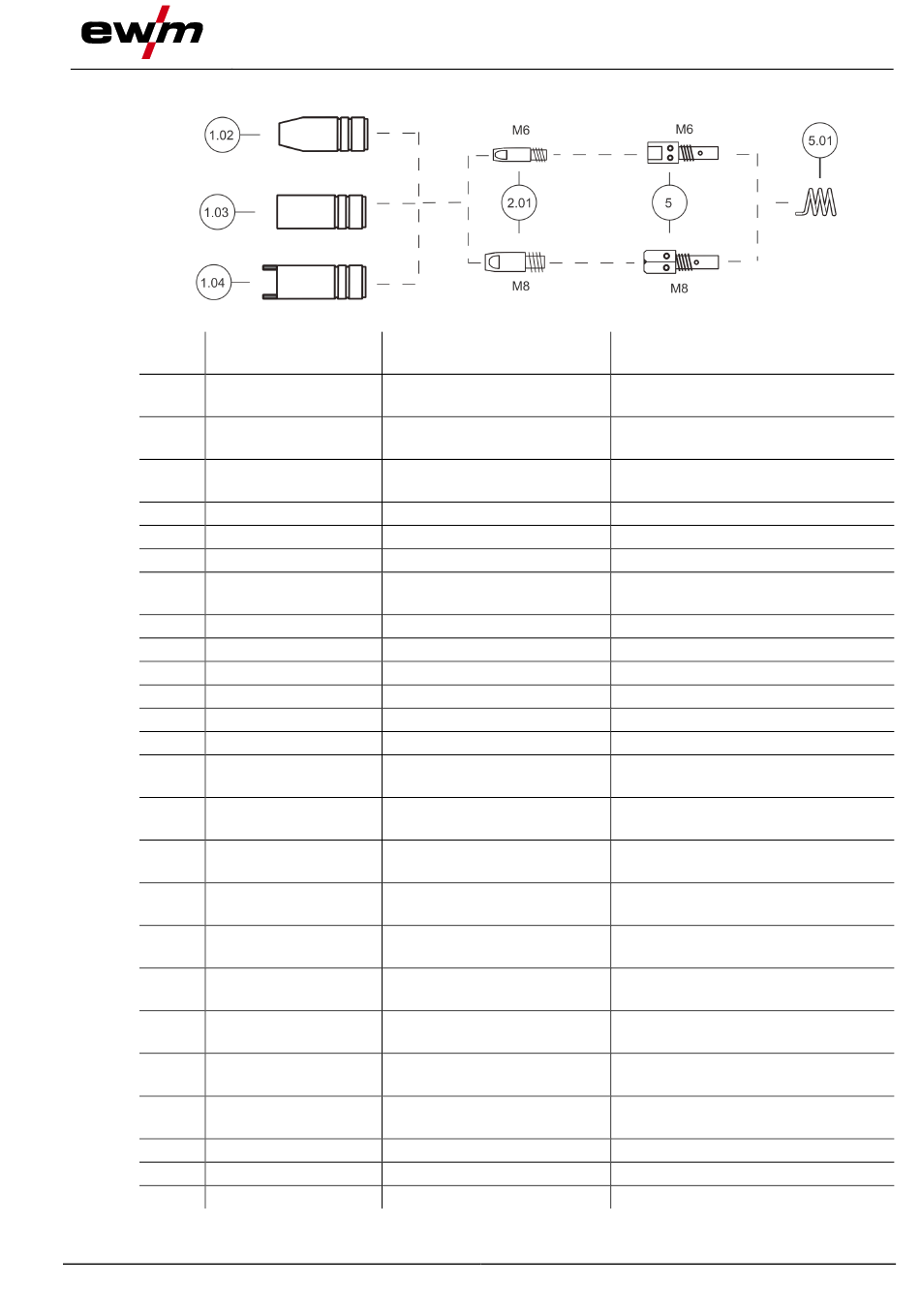

Illustration 9-3
Type
GN Eco Ø=15mm L=57mm UM
25
GN Eco Ø=11,5mm L=57mm
UM 25
GN Eco Ø=18mm L=57mm UM
25
PGD UM 25
CT Eco M8x30 E-Cu Ø=0.8mm Tube contact
CT Eco M8x30 CuCrZr Ø=1mm Tube contact
CT Eco M8x30 CuCrZr
Ø=1.2mm
CT Eco M8x30 E-Cu Ø=1mm
CT Eco M8x30 E-Cu Ø=1.2mm Tube contact
CT Eco M6 E-Cu Ø=0.8mm
CT Eco M6 E-Cu Ø=1.0mm
CT Eco M6 E-Cu Ø=1.2mm
CT Eco M6x28 CuCrZr Ø=1mm Tube contact
CT Eco M6x28 CuCrZr
Ø=1.2mm
CT Eco M6x28 CuCrZr
Ø=0.8mm
CT Eco M8x30 CuCrZr
Ø=0.8mm
CT Eco M6x28 E-Cu Ø=0,8mm
Alu
CT Eco M6x28 E-Cu Ø=1,0mm
Alu
CT Eco M6x28 E-Cu Ø=1,2mm
Alu
CT Eco M8x30 E-Cu Ø=0,8mm
Alu
CT Eco M8x30 E-Cu Ø=1,0mm
Alu
CT Eco M8x30 E-Cu Ø=1,2mm
Alu
CTH M8x35mm UM 25
CTH Eco M6x35mm UM 25
HF UM 25
Pièces d'usure
Désignation
Buse de gaz, conique
Buse de gaz, très conique
Buse de gaz, cylindrique
Buse de gaz par point
Tube contact
Tube contact
Tube contact
Tube contact
Tube contact
Tube contact
Tube contact
Tube contact
Tube contact, soudage aluminium
Tube contact, soudage aluminium
Tube contact, soudage aluminium
Tube contact, soudage aluminium
Tube contact, soudage aluminium
Tube contact, soudage aluminium
Support tube contact
Support tube contact
Ressort de retenue
UM 25 G
27
