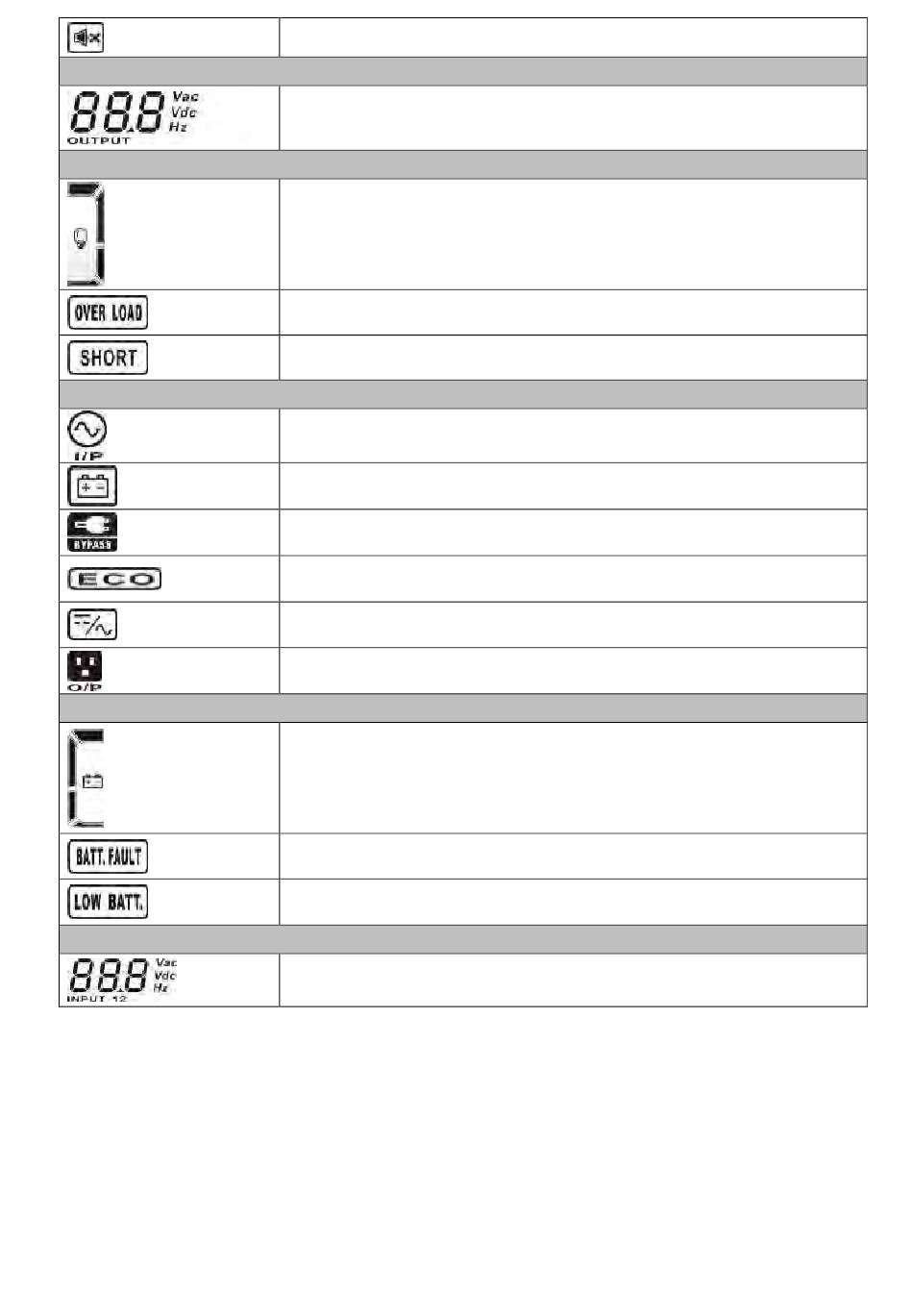

Output & Battery voltage information
Load information
Operation mode information
Battery information
Input & Battery voltage information
INFOSEC UPS SYSTEM – 15, rue du Moulin – 44880 Sautron – France – www.infosec-ups.com
80
hotline : +33 (0)2 40 76 15 82 – fax : +33(0)2 40 94 29 51 – hotline@infosec.fr – 07 19 AA 59 205 03
Indicates that the UPS alarm is disabled.
Indicates output voltage, frequency or battery voltage.
VAC: output voltage, VDC: battery voltage, Hz: frequency
Indicates the load level: 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates overload.
Indicates that the load or output is short.
Indicates that the UPS is connected to the mains.
Indicates that the battery is working.
Indicates that the bypass circuit is working.
Indicates the ECO mode is enabled.
Indicates that the Inverter circuit is working.
Indicates that the output is working.
Indicates Battery capacity: 0-25%, 26-50%, 51-75%, and 76-100%.
Indicates a battery fault.
Indicates low battery level and low battery voltage.
Indicates the input voltage or frequency or battery voltage.
VAC: Input voltage, VDC: battery voltage, Hz: input frequency
