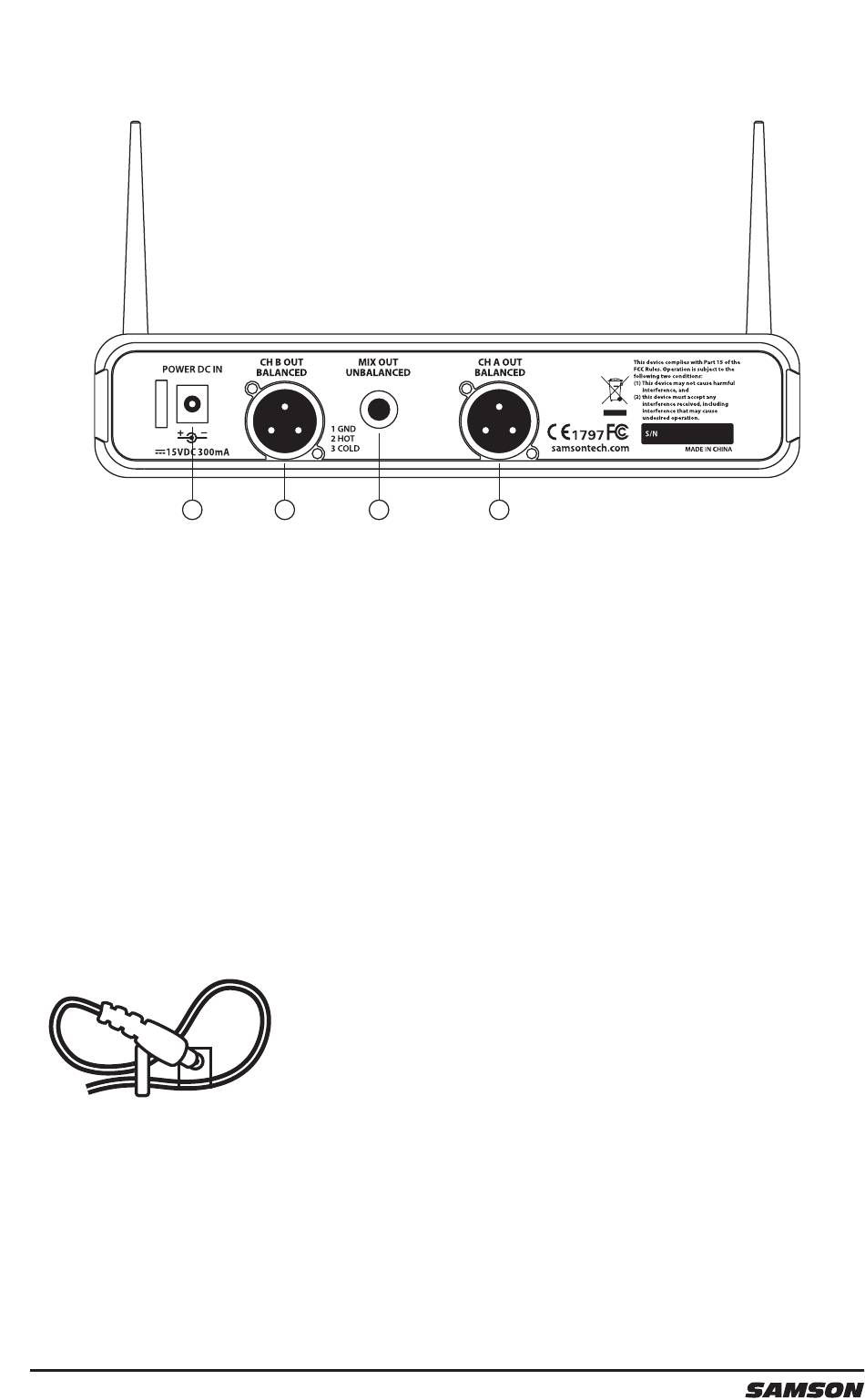

CR288 Receiver Callouts
1
1. DC Input - Connect the supplied power adapter here, using the strain relief as
shown in the illustration below. WARNING: Do not substitute any other kind of
power adapter. Doing so can cause severe damage to the CR288 and will void
your warranty.
2. BALANCED OUTPUT - Use this electronically balanced low impedance (600 Ohm)
XLR jack when connecting the CR288 to professional (+4dBu) audio equipment.
Pin wiring is as follows: Pin 1 ground, Pin 2 high (hot), and Pin 3 low (cold).
3. MIX OUT UNBALANCED - Use this unbalanced high impedance (5K Ohm) ¼" jack
when connecting the CR288 to consumer (-10dBV) audio equipment. The jack
will carry the combined signal from receiver CH A and B. Wiring is as follows: tip
hot, sleeve ground.
10
2 3
Using the strain relief: Gather up a loop of wire and pass
it through the strain relief, then pass the adapter plug
through the loop in order to create a knot.
