6.1.5 Brackets and adaptors

The product cannot be fixed to a bracket or adaptor.
For further information refer to the product's
technical data sheet or directly contact VIDEOTEC.
6.1.6 Installation of the version with
double filter for air renewal

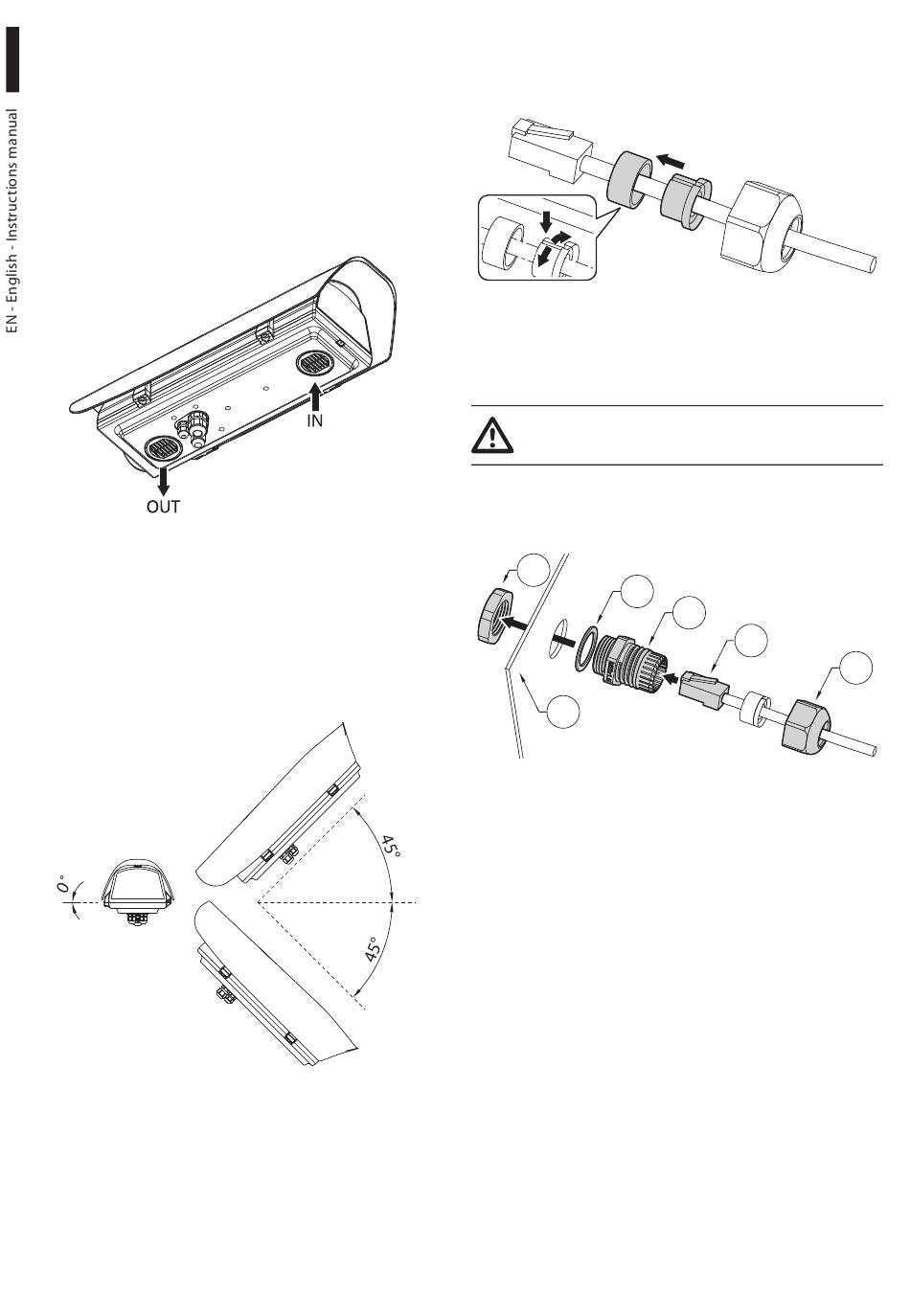

Special attention must be paid to the position of the
air intake filter fins when installing the housing.
Fig. 4
Depending on the inclination of the housing, the
direction of the fins must be such to prevent water
entering in case of rain.
To guarantee the IP44 weatherproof, install the
housing on the support following the inclination
limits as shown in the picture.
Fig. 5 Maximal rotation on the transversal axis: 0°.
Maximal inclination on the longitudinal axis: +/- 45˚.
6

6.1.7 Ethernet cable installation

Insert the Ethernet cable in the gasket and block it as
shown in figure.
Fig. 6
Fit the gasket (01) to the cable gland M20 (02). Fasten
the cable gland to the bottom of the housing (03)
using the M20 nut (04).
Pay attention to the fixing. Tightening
torque: 7Nm max.
Pass the cable with connector RJ45 (05) through the
M20 cable gland (02). Tighten the cable gland plug
(06).
04
01
03
Fig. 7
02
05
06
