SHOCK CLEANING

Oil-filled shocks will require regular maintenance due to the oil breaking
down or getting dirty. This maintenance should be performed after about
every 3 to 5 hours of use, depending on the conditions that the vehicle is
used in.
• Remove the shock from the vehicle.
• Remove the cap from the shock body and dispose of fluid.
• Disassemble the shock. Clean thoroughly with DYN5505. Dry parts
before assembly.
• Re-assemble the shock and refill the shock body with silicone fluid
(30 weight recommended).
• Slowly move the shaft and piston up and down to remove air bubbles.
• Move the piston to the midway point of the body and install the cap.
• Wipe off any overflowing fluid.
• When properly filled, the piston should rebound about 3/8 in (9.5mm)
after being pushed in fully.
• Re-install the shock on the vehicle.
RIDE HEIGHT ADJUSTMENT
Ride height is an adjustment that affects the way the vehicle jumps,
turns and goes over bumps. Drop one end of the vehicle from
approximately 6 inches (152 mm) in height onto a flat surface. When
dropping the front of the vehicle, after the vehicle settles, make sure
the front arms are equal and parallel to the flat surface. Do the same
with the rear to make sure both arms are parallel with the flat surface.
Lowering the front ride height increases steering, but decreases
traction. Lowering the rear ride height increases traction, but
decreases steering.

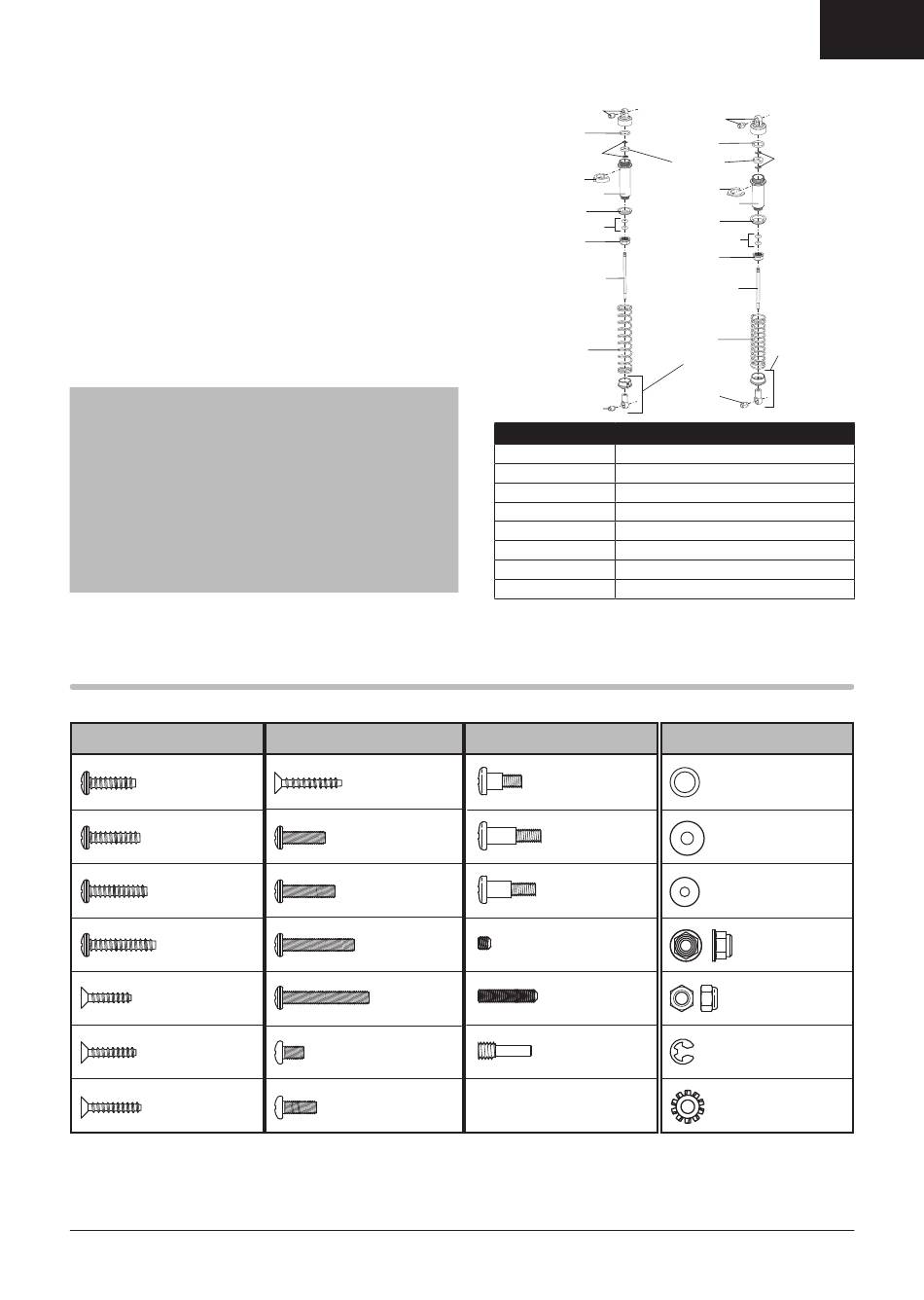

FASTENERS

No. Description
TAPPING
BINDER HEAD
M3x10mm
TAPPING
BINDER HEAD
M3x12mm
TAPPING
BINDER HEAD
M3x16mm
TAPPING
BINDER HEAD
M3x18mm
TAPPING
FLAT HEAD
M3x10mm
TAPPING
FLAT HEAD
M3x12mm
TAPPING
FLAT HEAD
M3x15mm
RUCKUS | TORMENT | K&N TORMENT
®
No. Description
TAPPING
FLAT HEAD
M2x16mm
BINDER
HEAD
M3x8mm
BINDER
HEAD
M3x12mm
BINDER
HEAD
M3x20mm
BINDER
HEAD
M3x25mm
BUTTON
HEX
M2.5x4mm
BUTTON
HEX
M2.5x8mm
REAR
SHOCK
ECX1037
ECX1043
ECX1057
ECX1038
ECX1036
ECX1038
ECX1043
ECX1037
ECX1040
ECX1042
ECX1037
Part # Description
ECX1036 Shock Body Set
ECX1037 Shock Caps, Pistons
ECX1038 Shock Parts Set
ECX1039 Front Shock Shaft (2)
ECX1040 Rear Shock Shaft (2)
ECX1041 Front Shock Springs (2)
ECX1042 Rear Shock Springs (2)
ECX1043 Shock O-Ring Set
No. Description
STEP SCREW
M3x0.5x7.4mm
STEP SCREW
M3x0.5x13.4mm
STEP SCREW
M3x0.5x10.5mm
SETSCREW
M3x3mm
SETSCREW
M3x12mm
SET SHAFT
SCREW
M3x13mm
™
FRONT
SHOCK
ECX1037
ECX1043
ECX1057
ECX1037
ECX1038
ECX1036
ECX1038
ECX1043
ECX1037
ECX1039
ECX1041
ECX1038
ECX1038
ECX1037
No. Description
WASHER
5x7x0.5mm
WASHER
3x8x0.5mm
WASHER
2x7x0.5mm
FLANGED
LOCK NUT M4
LOCK NUT M3
E-CLIP E2.5
LOCK WASHER
™
EN
9
