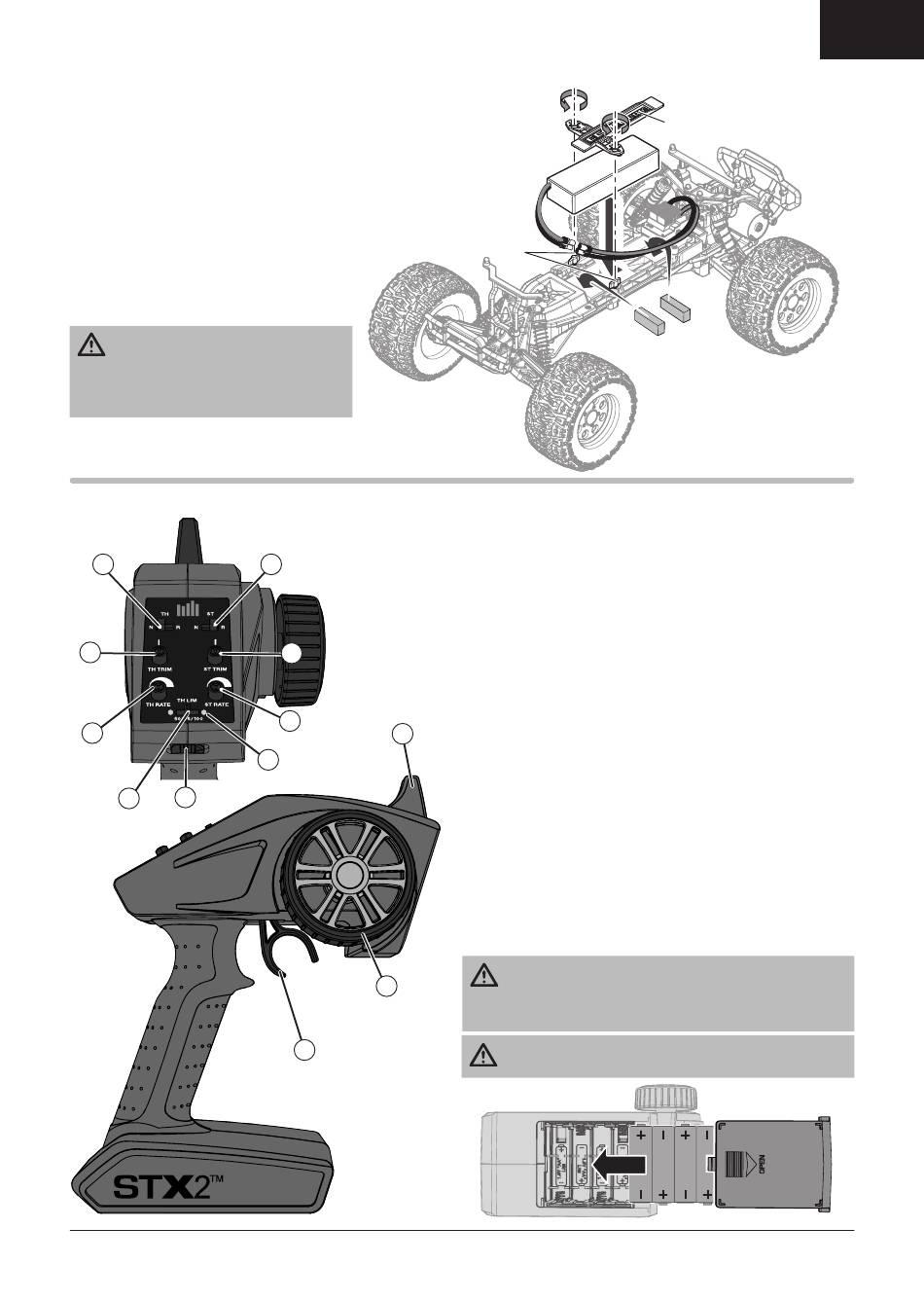

INSTALLING THE BATTERY

1. Turn the battery clips (A) clockwise to remove
the battery strap (B).
2. Install a fully charged battery.
3. Install the battery strap.
4. Turn the battery clips counterclockwise to secure
the battery strap.
Place foam blocks (ECX2015) in front of the battery so
the weight of the battery increases rear traction or in
back of the battery to increase steering response.
CAUTION: Connecting the battery to the
ESC with reversed polarity will cause damage
to the ESC, the battery or both. Damage caused by
incorrectly connecting the battery is not covered
under warranty.

TRANSMITTER CONTROLS

7
6
5
3
4
2.4GHZ DIGITAL
RADIO SYSTEM
RUCKUS | TORMENT | K&N TORMENT
®
8
9
10
11
12
1
2
A
1. Steering Wheel Controls direction (left/right) of the model
2. Throttle Trigger Controls speed and direction (forward/brake/reverse)
of the model
3. ON/OFF Switch Turns the power ON/OFF for the transmitter
4. Throttle Limiting Switch Adjusts the throttle limit from 50%, 75%,
and 100%
5. TH Rate Adjusts the end point of the throttle
6. TH Trim Adjusts the throttle neutral point
7. TH REV Reverses the function of the speed control when pulled back
or pushed forward
8. ST REV Reverses the function of the steering when the wheel is turned
left or right
9. ST Trim Adjusts the steering center point
10. ST Rate Adjusts the end point of the steering
11. Antenna Transmits the signal to the model
12. Indicator Lights
• Solid red lights—indicates radio connectivity and adequate
battery power
• Flashing red lights—indicates the battery voltage is critically
low. Replace batteries

INSTALLING TRANSMITTER BATTERIES

This transmitter requires 4 AA batteries.
1. Remove the battery cover from the transmitter.
2. Install the batteries as shown.
3. Install the battery cover.
CAUTION: If using rechargeable batteries, charge only
rechargeable batteries. Charging non-rechargeable batteries may
cause the batteries to burst, resulting in injury to persons and/or damage
to property.
CAUTION: Risk of explosion if battery is replaced by an incorrect
type. Dispose of used batteries according to national regulations.
™
B
™
