The green AF OK LED being lit and the red AF CLIP LED flashing oc-
casionally indicate optimum modulation.
If none of the LEDs is lit, the gain setting on the transmitter is too low.
7 VOLUME: This rotary control adjusts the receiver's output level from
microphone to line level for matching to the input sensitivity of your
mixer or amplifier. The control range is 26 dB.
8 Frequency selector: This slide switch tunes the receiver to one of three
different carrier frequencies within the receiver's carrier frequency
band.
9 Carrier frequency label: A label indicating the name of the carrier fre-
quency band and the three carrier frequencies of your receiver is af-
fixed to the rear panel of the receiver.
10 AUDIO OUT/BALANCED: Balanced 3-pin XLR audio output for con-
necting to, e.g., a microphone input on the mixing console.
10
11 AUDIO OUT/UNBALANCED: Unbalanced audio output on a 1/4" TS
jack for connecting to, e.g., a guitar amplifier.
12 Strain relief for the feeder cable of the supplied AC adapter.
13 DC ONLY: Input connector for the supplied AC adapter.
14 SQUELCH: The squelch circuit switches the receiver off if the re-
ceived signal is too weak, in order to suppress the related noise or
the residual noise of the receiver while the transmitter is off. Set the
SQUELCH control to minimum before first switching the receiver on.
Operating in the 660 MHz to 865 MHz UHF range, the HT 40 FLEXX pro-
vides three selectable, quartz stabilized carrier frequencies within the
3-MHz-wide frequency band for which you ordered your WMS 40 FLEXX.
The antenna is integrated in the body.
The microphone element permanently mounted on the transmitter uses
a high quality cardioid transducer from AKG. It provides low handling
noise sensitivity, high gain before feedback, and brilliant sound quality, as
well as a built-in wind and pop filter to reduce wind and breath noise.
15 On/off switch: This slide switch provides three positions:
ON: Power to the transmitter is on.
MUTE: The signal delivered by the microphone element is muted
while power and the RF carrier frequency remain on.
OFF: Power to the transmitter is off.
16 Status LED: Indicates the transmitter's operating status.
LED lit green: Battery is OK.
AKG WMS 40 FLEXX
2 Description
11 12
14 13
2.4.2 R R ear P P anel

Controls

9

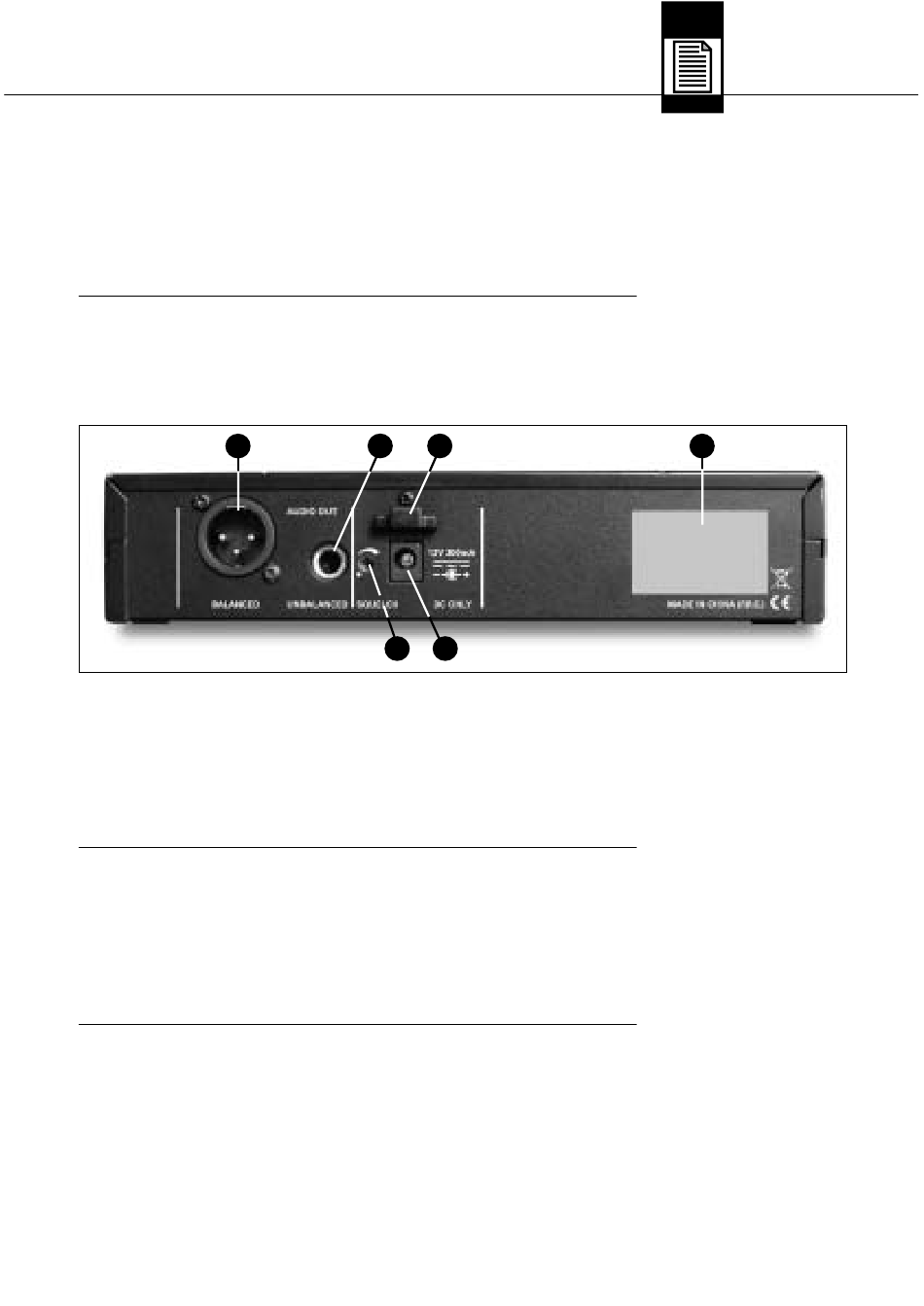

Fig. 2: Rear panel con-
trols on SR 40 FLEXX
receiver.
2.5 H H T 4 4 0 F F LEXX
Handheld T T ransmitter
2.5.1 C C ontrols
Refer to fig. 3 on page 2.
