UNPACKING
This product requires assembly.
 Carefully lift saw from the carton by the carrying handle
and the saw base, and place it on a level work surface.
WARNING:
Do not use this product if any parts on the Loose Parts List
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
 This saw has been shipped with the saw arm secured in the
down position. To release the saw arm, push down on the
"D" handle, cut the tie-wrap, and pull out on the lock pin.
WARNING:
The saw arm is spring loaded. Hold the handle down to
prevent it from snapping up when cutting the tie-wrap.
Failure to do so could result in possible serious injury.
 Lift the saw arm by the handle. Hand pressure should
remain on the saw arm to prevent sudden rise upon
release of the tie wrap.
 Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
 Do not discard the packing material until you have carefully
inspected and satisfactorily operated the tool.
 The saw is factory set for accurate cutting. After assembling
it, check for accuracy. If shipping has influenced the
settings, refer to specific procedures explained in this
manual.
 If any parts are damaged or missing, please call
1-800-525-2579 for assistance.

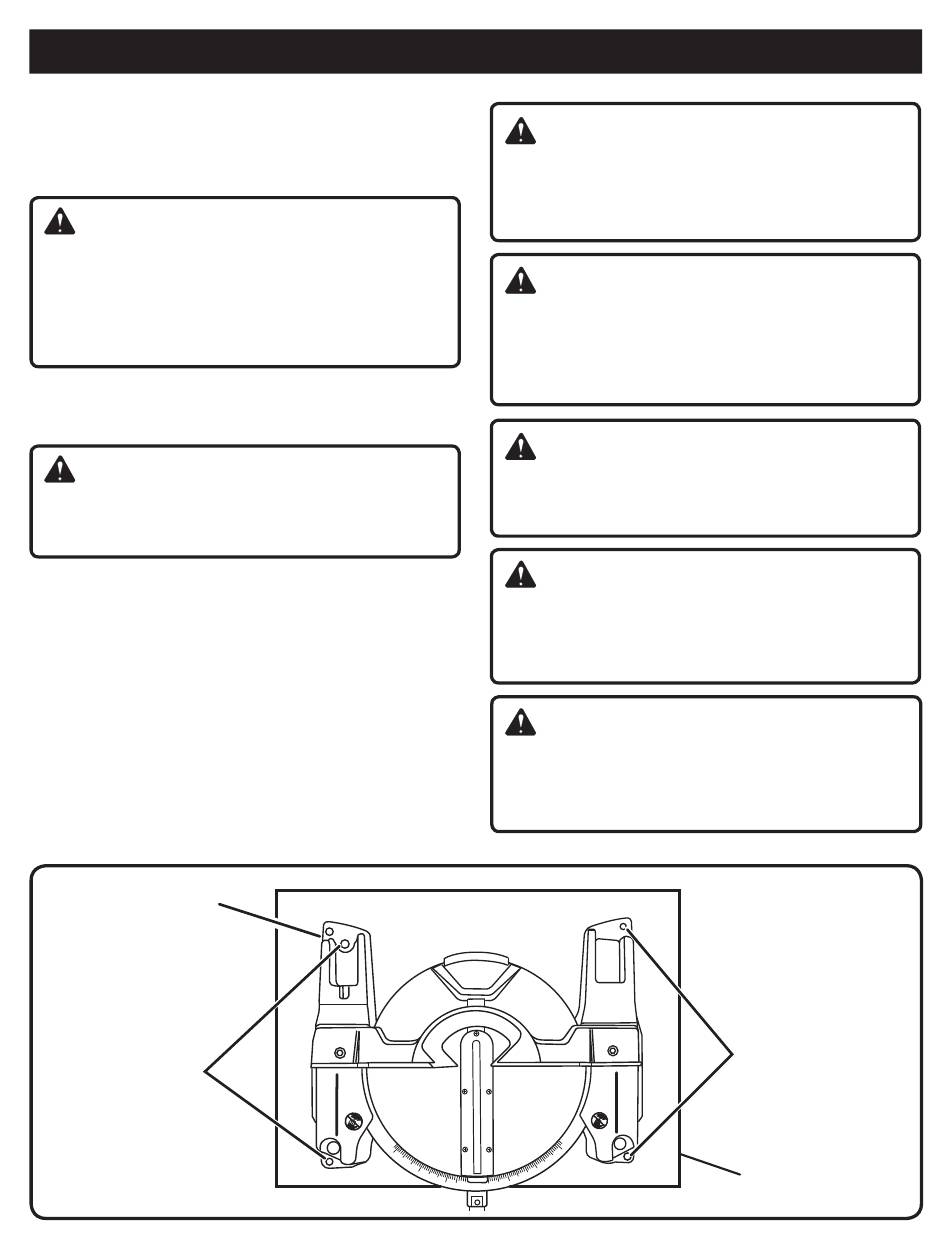

BASE
TRACE HOLES
AT THESE LOCATIONS
FOR HOLE PATTERN

ASSEMBLY

WARNING:
If any parts are damaged or missing do not operate this
tool until the parts are replaced. Use of this product
with damaged or missing parts could result in serious
personal injury.
WARNING:
Do not attempt to modify this tool or create accessories
not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
WARNING:
Do not connect to power supply until assembly is
complete. Failure to comply could result in accidental
starting and possible serious personal injury.
WARNING:
Do not start the compound miter saw without checking
for interference between the blade and the miter fence.
Damage could result to the blade if it strikes the miter
fence during operation of the saw.
WARNING:
This saw can tip over if the saw head is released suddenly
and the saw is not secured to a work surface. ALWAYS
secure this saw to a stable work surface before any use
to avoid serious personal injury.
13 — English
TRACE HOLES
AT THESE LOCATIONS
FOR HOLE PATTERN
MOUNTING
SURFACE
Fig. 7
