1 PRODUCT DESCRIPTION

1.1 Description of the product and warnings for the correct use

T85 mechanical steering system with steering cable is designed to control boats equipped with outboard, inboard
and sterndrive power assisted engines. T85 steering system must be used with Ultraflex M66 steering cable
PERICOLO
WARNING
WARNING
T85 steering system is not to be used on boats equipped with engines that exceed the maximum horsepower
rating of the boat or the speed of 50 knots (57.5 mph).
PERICOLO
DANGER
DO NOT DISASSEMBLE ANY PART OF THE STEERING SYSTEM DURING THE INSTALLATION OF THE
CABLE. THE DISASSEMBLY OF THE COMPONENTS CAN GENERALLY CAUSE SERIOUS DAMAGE TO
OBJECTS OR PEOPLE. THIS PROCEDURE CAUSES THE WARRANTY LOSS OF THE PRODUCT.

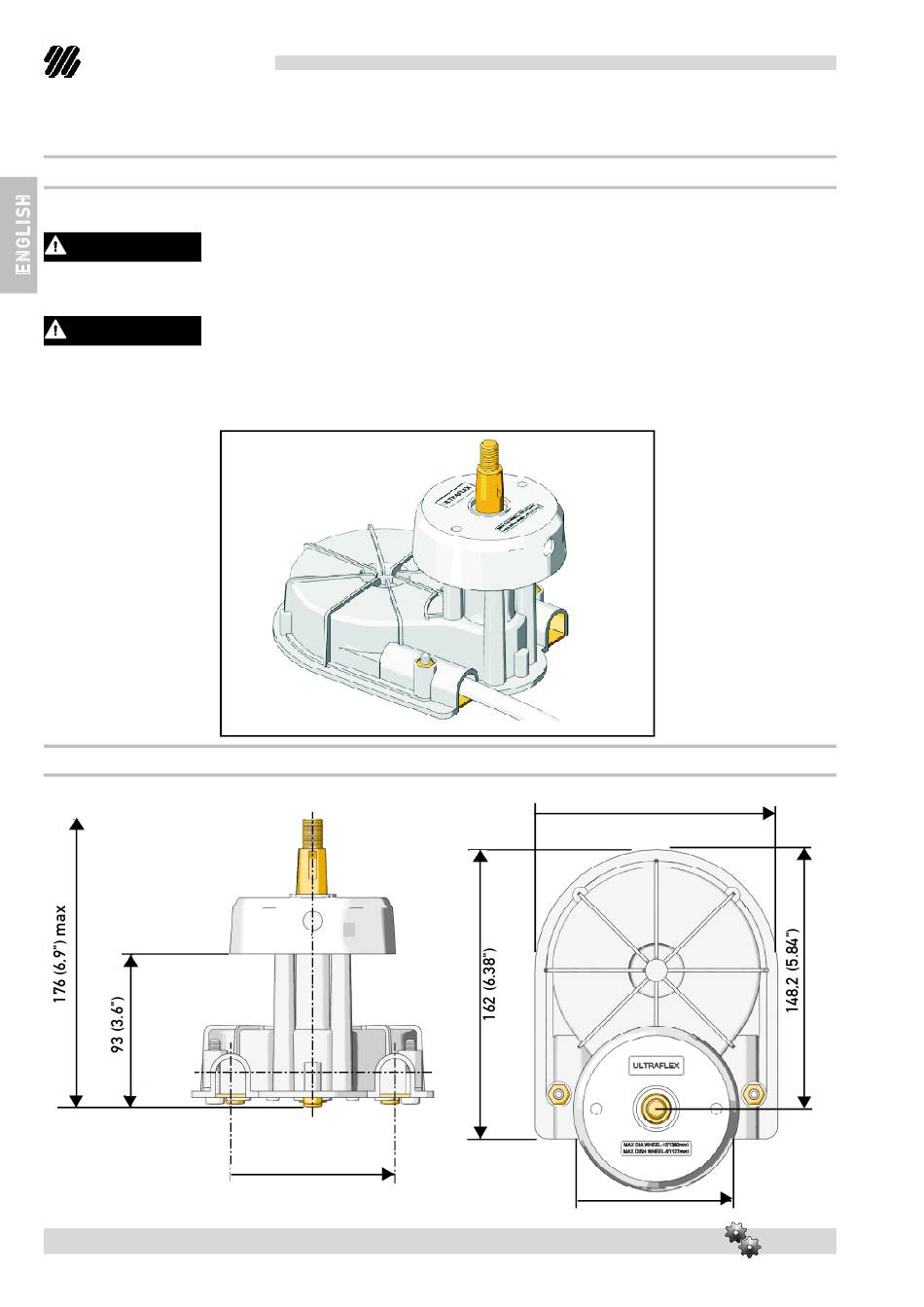

1.2 DiMENSIONS

The following pictures show the dimensions of T85 steering system.
page 6
of 39 -
T85 STEERING SYSTEM
T85
ƒ
102.5 (4")
Installation and maintenance manual
150 (5.91")
ƒ
ƒ
Ø
103 (4.06")
