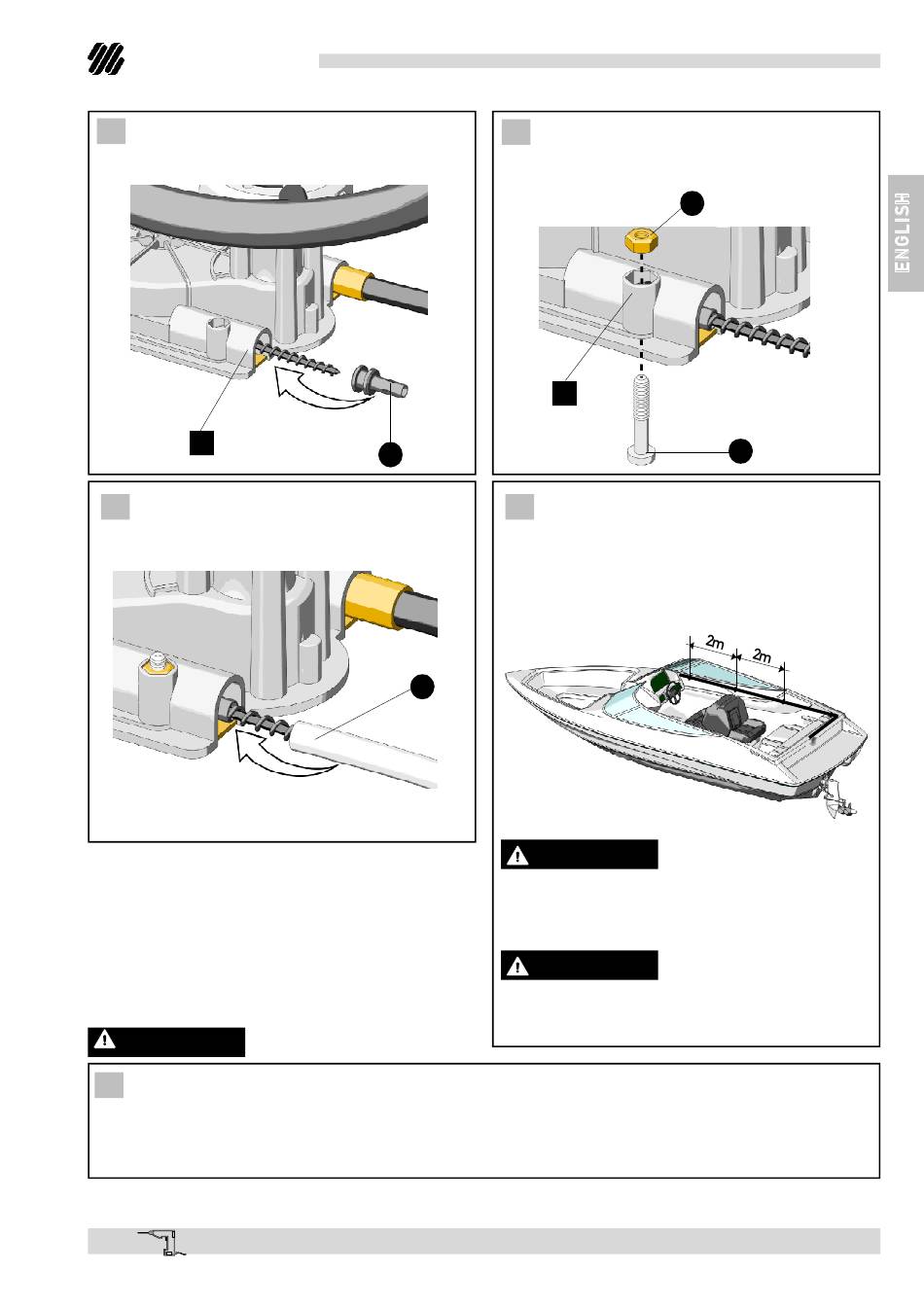

5 Slide the bushing (17) over the helix cable and
introduce it into the hole of the helm B.
B
7 Insert the protection tube (20) on to the
bushing (17)
WARNING
Make sure the direction of the steering wheel rotation corresponds to the boat direction.
9
This control must be performed before the boat is operated in the water.
6 Align the bushing recess (17) with C hole
and lock it by means of the screw (18) and the
nut (19) with torque of 53 in.lbs (6 Nm).
17
8 Fix the conduit every 2 mt (6'). The conduit
must not be fixed to electric wires.
Bulkhead openings require a minimum 38mm
(1 1/2) hole diameter.
20
DANGER
Prevent any dust or foreign material from
contacting the exposed helix cable end.
DANGER
Make sure the conduit does not enter in contact with
cutting edges that could damage it.
T85 STEERING SYSTEM
Installation and maintenance manual
19
C
18
