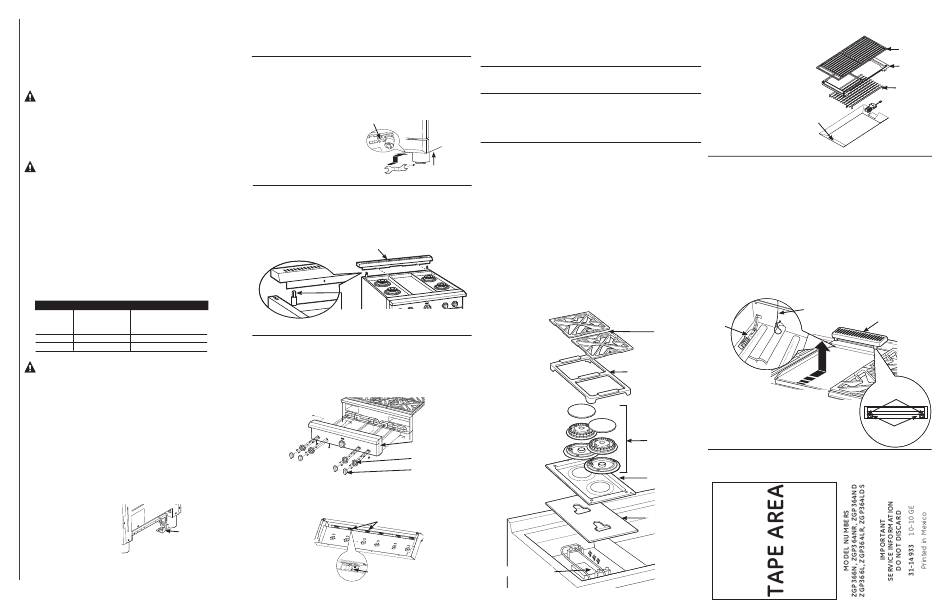

36" ALL GAS RANGES
36" Natural Gas Surface Burner Models: ZGP366N,
ZGP364NR, ZGP364ND
36" LP Gas Surface Burner Models: ZGP366L,
ZGP364LR, ZGP364LDS
WARNING:
This information is intended for use
by persons possessing adequate backgrounds of electrical,
electronic, gas and mechanical experience. Any attempt to repair
a major appliance may result in personal injury and property
damage. The manufacturer or seller cannot be responsible
for the interpretation of this information, nor can it assume
any liability in connection with its use.
WARNING:
SHOCK HAZARD -
3DISCONNECT POWER BEFORE SERVICING
Disconnect the range electrical power supply at the household
distribution panel by removing the fuse or switching off the circuit
breaker.
Shut off the gas supply in the gas line by closing the manual
shut-off valve.
Shut off the range gas supply by closing the range shut-off valve
located on top of the range, beneath the rear vent.
IMPORTANT: Reconnect all grounding devices. All parts of this
appliance capable of conducting electrical current are grounded.
If grounding wires, screws, straps, clips, nuts or washers used
to complete a path to ground are removed for service, they must
be returned to their original positions and properly fastened.
GAS SUPPLY REQUIREMENTS
INCOMING
GAS TYPE PRESSURE TO PRESSURE
REGULATOR REGULATOR OUTPUT
Natural 6.0≤ to 14.0≤ W.C.P. 5.0≤ W.C.P.
L.P. 11≤ to 14≤ W.C.P. 10.0≤ W.C.P.
WARNING:
The cooktop, as shipped from
the factory, is set for use with its intended gas. If you wish to
use your cooktop with the alternate gas, you must first replace
the orifices and convert the pressure regulator. ailure to do so
may result in carbon monoxide poisoning or fire.
GAS CONVERSION KIT
The gas conversion kit is located behind the front access panel
at the bottom of the range. Please refer to the installation instruc-
tions for details on removal.
HIGH ALTITUDE KIT
For operation from 3,000 to 7,000 feet, order WB28K10553
Conversion Kit. This kit includes orifices for both LP and Natural
gas operation.
ANTI-TIP DEVICE
The Anti-Tip Bracket must be
properly installed to prevent Be sure Anti-Tip
tipping of the range. Failure Bracket is engaged
with the brace
to do so can cause serious
on the range.
damage or injury.
After servicing, roll the range into position, being careful not to
entangle or pinch the power cord and flexible gas tubing. Make
sure the Anti-Tip Bracket is engaged.
REMOVE/REPLACE RANGE
To roll the range from its location for service, lower the range onto
its wheels by retracting its four leveling legs.
FRONT LEVELING LEGS ADJUSTMENT
A leveling leg wrench is supplied. Reach under the front of the
range near the right side. Locate and remove a thumb screw, then
slide the wrench out of the slot.
Slide the front cylinders up to adjust the front leveling legs. Be
careful not to damage the cylinder.
Thumb Screw
Use the supplied wrench to turn
the front leveling legs. Turn clock-
wise to raise the range above the
wheels. Turn counterclockwise to
lower the legs.
Be sure to return the wrench to its
storage slot for future use.
REAR LEVELING LEGS ADJUSTMENT
Remove the two screws from the rear vent trim. Slide the vent trim
forward, then lift up to remove.
Find the two rear leg extension rods. Use a 1/4" driver or wrench
on the extension rods to adjust the rear legs.
Rear Vent Trim
Rear Leg
Extension Rod
CONTROL PANEL REMOVAL
Pull the surface knobs off and remove the screws from each bezel.
Remove the screws from the control panel face. NOTE: Do not
remove the oven control knob.
Remove the screws from the bottom of the control panel and from
the top (inside flanges, on each side, on the back side of the panel).
Control Panel
Bezels
Surface Knobs
ACCENT LIGHTING REPLACEMENT
Remove the control panel. See the CONTROL PANEL REMOVAL section.
Loosen the accent lighting module's screw, slide out and replace.
Loosen
Set Screw
SURFACE KNOB INDICATOR LIGHT REPLACEMENT
Remove the control panel. See the CONTROL PANEL REMOVAL
section. Find the indicator light on top of the gas valve, remove
the attached screw and replace.
GAS MANIFOLD AND VALVES REPLACEMENT
Refer to the Service Manual for replacement procedure.
OVEN CONTROL ACCESS
Remove the control panel. See the CONTROL PANEL REMOVAL
section.
The oven control is mounted to the back side of the control panel.
SPARK MODULE REPLACEMENT
Slide leg
cylinder
1. Roll the range from its installation position.
up.
See the REMOVE/REPLACE RANGE section.
2. Remove the control panel. See the CONTROL PANEL REMOVAL
section.
3. Remove the two screws from the rear vent trim and remove
the trim.
4. Remove the side range panel by removing the screws on the back
of the range and the screws from the range face top inner cor-
ners, and then lift the panel up and off of its front keyhole mount-
ing slots.
5. Remove the left grates and left grate frame. Remove surface
burners by removing all screws, but keep the outside burner
screws separate from the inside burner screws so they can
be easily replaced. Remove the burner pan, burner insulation
and spark module cover. Disconnect the igniter wires by pulling
them off of the connector pins.
Spark Module Cover
GRILL IGNITER REPLACEMENT
Remove the grill cover, grate,
grate frame and radiant baffle.
Remove the screws from each
side of the pan surround and
remove the pan surround.
Remove the screws from
the igniter and pull the igniter
connector from the opening.
Pan
Disconnect the connector pin
Surround
and replace the igniter. Push
the igniter connector back
into the opening and replace
all parts.
GRIDDLE IGNITER REPLACEMENT
Lift off the griddle flue cover. Remove the 2 inside clamping screws.
NOTE: Remove the 2 screws positioned on the inside only. Do not remove
the outermost screws—they are for leveling the griddle.
Slide the griddle toward the rear and out of the hold-down tabs along the
bottom front.
CAREFULLY lift and hold the griddle. A thermostat capillary is routed
through a clip. Gently lift the griddle to one side and slip the capillary out
of the clip. Do not disconnect or pull on the capillary. Gently lay the griddle
aside.
Remove the 2 burner hold-down screws at the rear of the burner to loos-
en the burner. Remove the screws attaching the igniter. Pull the igniter
connector from the opening, disconnect the pin connection and replace
the igniter. Route the capillary back into the clip. Push the excess capillary
back through the opening. Push the igniter connector back into the open-
ing and replace all parts.
Capillary
Igniter
Grates
Grate Frame
Slide back griddle
and lift front
Surface
Burners
GRIDDLE HIGH LIMIT SWITCH
This switch is located at the front of the griddle box inside the burner box.
Refer to the Service Manual for further information.
Burner Pan
Burner
Insulation
Grill
Grate
Grill
Grate
Frame
Radiant
Baffle
Griddle Flue Cover
Leveling Screws
Clamping Screws
